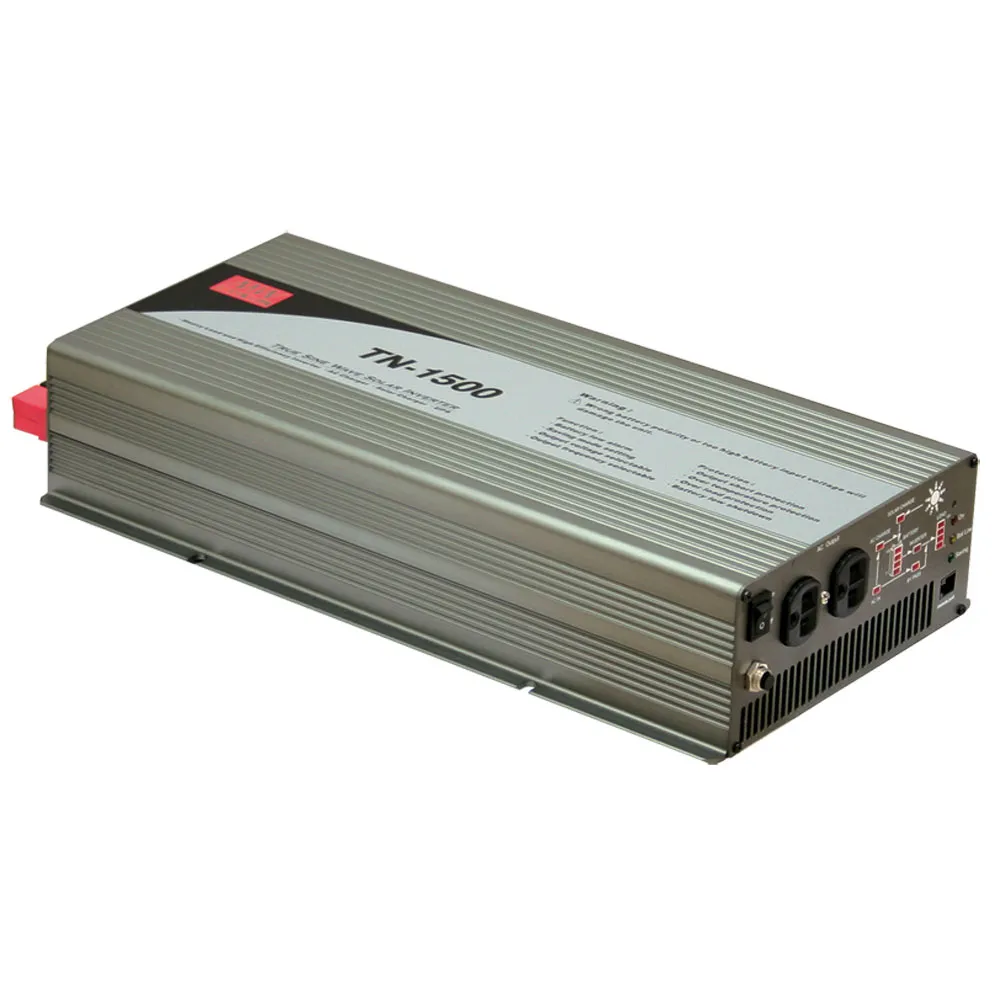

1500W True Sine Wave DC-AC Inverter with Solar Charger


24 Volts @ 75 Amps

Features:
  • True sine wave output (THD<3%)
  • High surge power up to 3000W
  • High efficiency up to 89%
  • Power ON-OFF switch
  • Standby saving mode can be selectable
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short / Input polarity reverse / Overload
  • Application : Home appliance, power tools, office and portableequipment, vehicle and yacht ...etc.
  • Optional monitoring software
  • 3 years warranty

Product Identification

Manufacturer Series:TN-1500
Product Type:True Sine DC-AC Inverter with Solar Charger

Compliance

Agency Approvals: CE, EAC, UKCA, FCC, FCC, CE, EAC, UKCA

Dimensions & Appearance

Mounting:Chassis
Color:Gray
Height:3.5 in.
Length:16.5 in.
Width:8.7 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C

Input

Input Frequency:50 Hz, 60 Hz
Input Voltage:24 VDC
Input Voltage Range:21 VDC to 30 VDC
Maximum Input Current:75 A

Output

Number of Outputs:1
Output Connector Type:NEMA 5-15R
Output Voltage:100 VAC, 110 VAC, 115 VAC, 120 VAC
Output Current:N/A

Features

AC Power Cord:NOT INCLUDED
Efficiency:89%
Power Rating:1500 W
,
