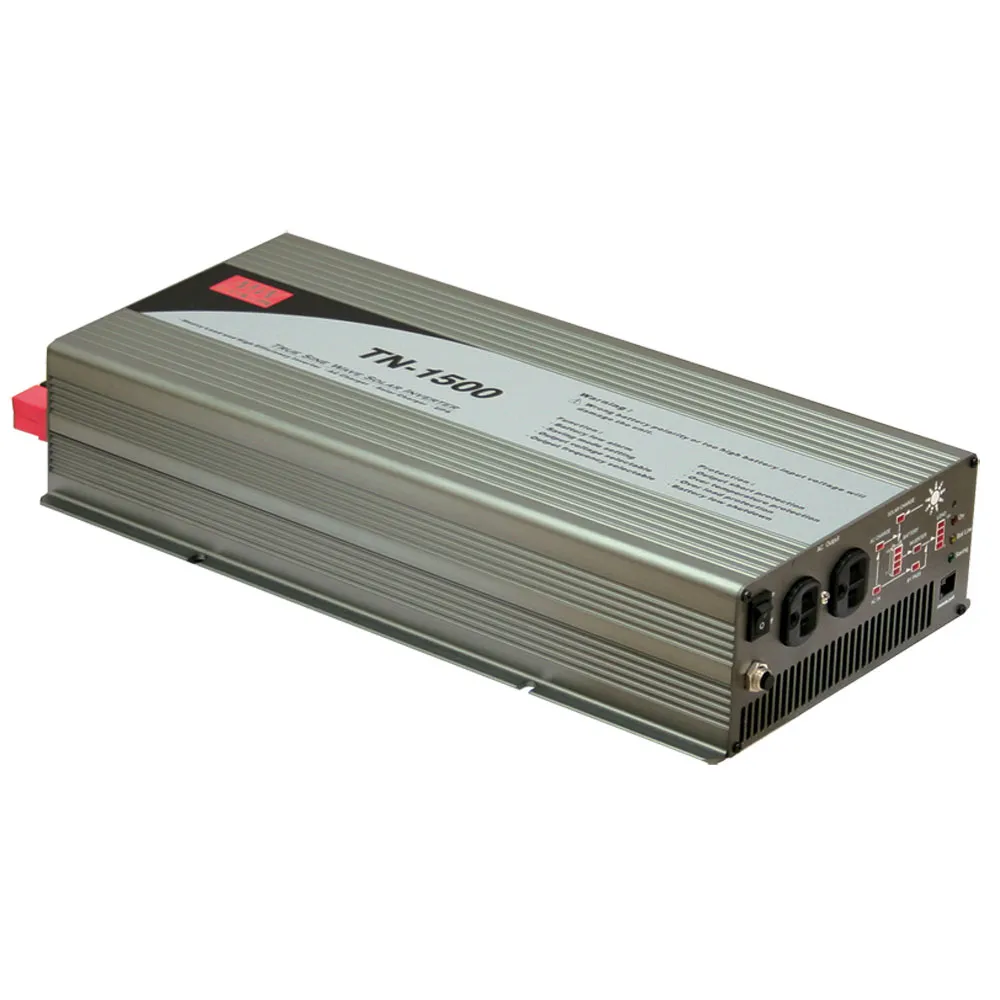

1500W True Sine Wave DC-AC Inverter with Solar Charger


12 Volts @ 150 Amps

Features:
  • True sine wave output (THD<3%)
  • High surge power up to 3000W
  • High efficiency up to 88%
  • Power ON-OFF switch
  • Standby saving mode can be selectable
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short / Input polarity reverse / Overload
  • Application : Home appliance, power tools, office and portableequipment, vehicle and yacht ...etc.
  • Optional monitoring software
  • 3 years warranty

Product Identification

Product Type:True Sine DC-AC Inverter with Solar Charger
Manufacturer Series:TN-1500

Compliance

Agency Approvals: CB, CE, EAC, UKCA, FCC, FCC, CB, CE, EAC, UKCA

Dimensions & Appearance

Color:Gray
Height:3.5 in.
Length:16.5 in.
Width:8.7 in.
Mounting:Chassis

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C

Input

Input Frequency:50 Hz, 60 Hz
Input Voltage:12 VDC
Input Voltage Range:10.5 VDC to 15 VDC
Maximum Input Current:150 A

Output

Number of Outputs:1
Output Connector Type:Euro Plug
Output Voltage:200 VAC, 220 VAC, 230 VAC, 240 VAC
Output Current:N/A

Features

AC Power Cord:NOT INCLUDED
Efficiency:88%
Power Rating:1500 W
,
