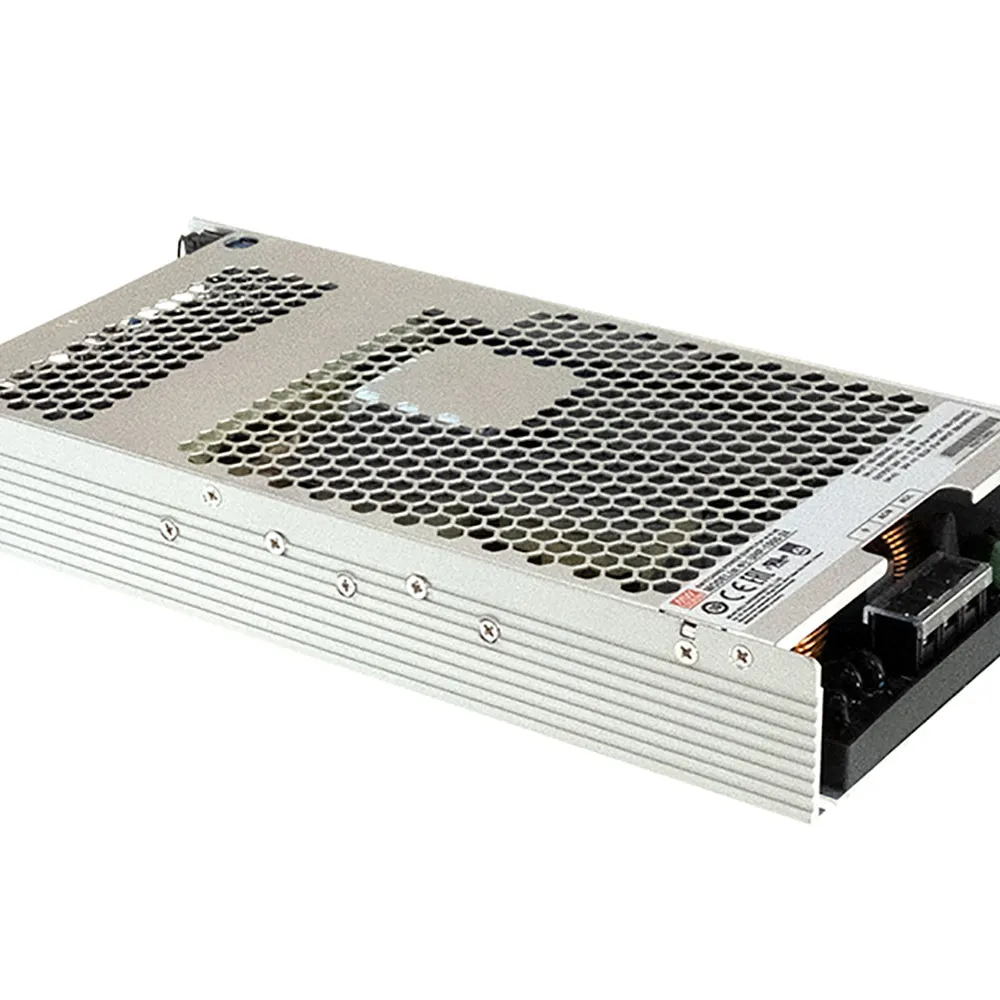

1500W Conduction Cooling AC-DC Switching Enclosed High Voltage Power Supply with PFC 380V 3.95A without PV/PC

Output: 380 Volts DC @ 3.95 Amps (4.5A max.)

High Voltage DC (HVDC) Output Power Supply Solutions.

Features

  • High voltage output 380 VDC
  • Slim and 1U low profile (41 mm)
  • Fanless and conduction-cooled design
  • Built-in active PFC function
  • -30 to +70°C
  • DC 12V/0.4A auxiliary power
  • Without programmable (PV/PC) functionality
  • Protections: Short circuit, overload, over voltage, over temperature
  • Built-in remote ON-OFF control
  • DC OK active signal
  • Operating altitude up to 2000 meters
  • LED indicator for power ON
  • 5-year warranty

Specifications

  • Output Voltage: 380 VDC
  • Output Current (Factory Default): 3.95 A
  • Rated Current (max.): 4.5 A
  • Output Power (Default): 1500 W
  • Rated Power (max): 1503 W
  • Input Voltage: 90 to 264 VAC @ 47 to 63 Hz
  • Efficiency: 95.5%
  • Output Connection: Screw Terminal
  • Size: 11.42"L x 5.51"W x 1.61"H
  • Weight: 5.9 lbs.
  • Agency Approvals: UL, CUL, TUV, CB, CE, EN, EAC, DEKRA, UKCA
  • Safety: UL/EN62368-1
  • EMC: EN55032

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Test and measurement instruments
  • Laser related machinery
  • Charging related equipment
  • DC centralized bus (lighting)

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:UHP-1500-HV

Compliance

Agency Approvals: CB, CE, CUL, DEKRA, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.61 in.
Length:11.42 in.
Width:5.51 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:8 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage (Channel 1):380 VDC
Output Current (Channel 1):3.95 A
Output Voltage:380 VDC
Output Current:3.95 A

Features

PFC Function:Yes
Minimum Isolation Voltage:6000V
Efficiency:95.5%
Power Rating:1501 W
,
