1500V DC & PV DIN Rail Surge Protection Device MOV+GSG 1500V MCOV 50kA SCCR

This surge protection device (SPD) designed for 1500 Volt DC and PV Power circuits and uses MOV + GSG technology which is VG Technology for maximum performance. Zero leakage current and zero current working are some of the highlights. It features 40kA surge current rating per pole and is UL1449 Type 1CA listed. It has a visual fault indicator, remote contacts, and comes with a 10-year warranty.

Specifications

• Protection Mode(s): Common Mode or Differential Mode
• Power SPD Type: UL1449 Type 1CA
• Volts: 1500 V
• DC PV & DC voltage systems
• Phase: N/A
• Amps: n/a
• Ambient Temperature: -40°C to +85°C
• Modes: DC+-DC, DC+-G, DC--G
• VPR (V): 5000 / 3000 / 3000
• MCOV (V): 1500 / 1500 / 1500
• IN: 10 kA
• SCCR: 50 kA
• IMAX: 40 kA/pole at 8/20µS

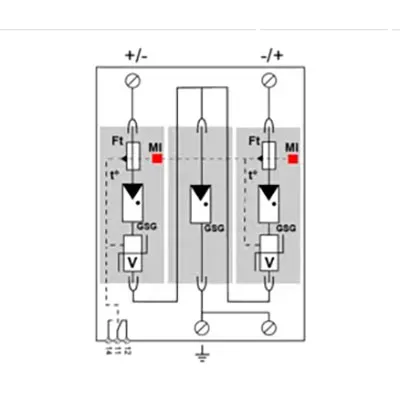

• Technology: MOV+GSG
• Network Configuration: 3 poles, 2W+G
• Connection Method: Screw Terminal (8 to 12 AWG)
• Mounting: DIN RAIL
• Material: Thermoplastic UL94-V0
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Fail-Safe Behavior: Disconnection via fuse-link
• Real-Time Diagnostics: Visual indicator and remote contacts
• Certification: UL, EAC
• UL Standard: UL 1449 4th Edition Recognized
• UL File Number: E326289
