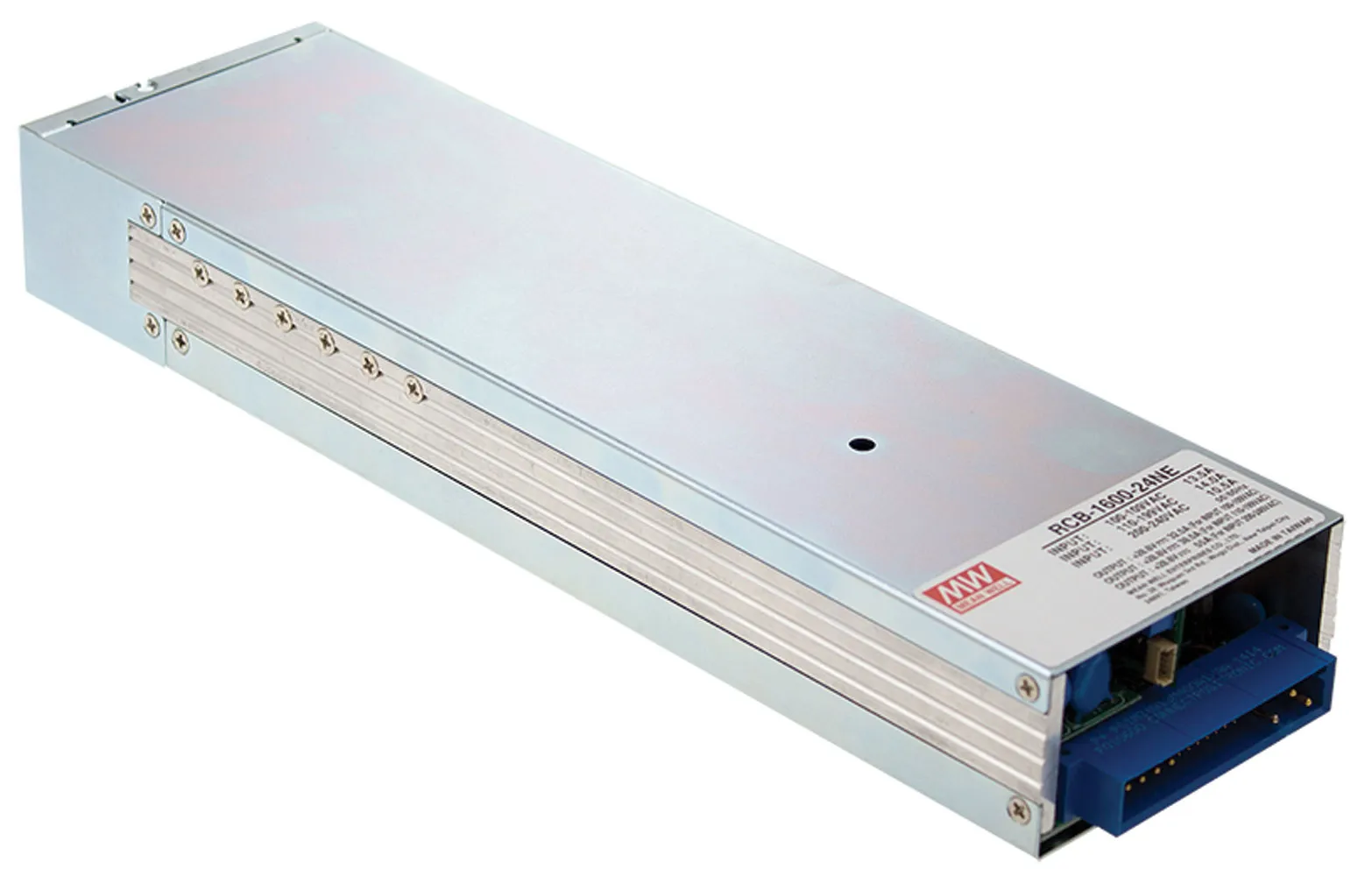

1500 Watt 12 Volt 125 Amp Rack Mountable Front End Rectifier

  • 12 Volts @ 125 Amps

    Features

    • Universal AC input / Full range (Withstand 300VAC surge input for5 seconds)
    • Built-in active PFC function
    • High efficiency up to 88.5%
    • Forced air cooling by built-in DC fan
    • Output voltage and constant current level programmable
    • Built-in OR-ing FET, supporting hot swap (hot plug)
    • Active current sharing up to 8000W for one 19" rack shelf
    • Built-in I²C interface, PMBus protocol
    • Protections: Short circuit / Overload / Over voltage / Over temperature
    • Optional conformal coating
    • 5 year warranty

    Applications

    • Industrial automation
    • Test and measurement instrument
    • Distributed power architecture system
    • Wireless/telecommunication solution
    • Electric vehicle charger system
    • Constant current source system
    • Redundant power system

    Certificates

    • Safety: UL/EN/IEC 60950-1
    • EMC: EN 55022 / 55024

    • Product Identification

    Product Type:Regulated SMPS
    Manufacturer Series:RCP-1600

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, TUV, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.6 in.
    Length:11.8 in.
    Width:3.4 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:14 A

    Output

    Number of Outputs:1
    Output Connector Type:Postronic PCIM34W13M400A1
    Output Voltage:12 VDC
    Output Current:125 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3000V
    Efficiency:88.5%
    Power Rating:1500 W
    ,
