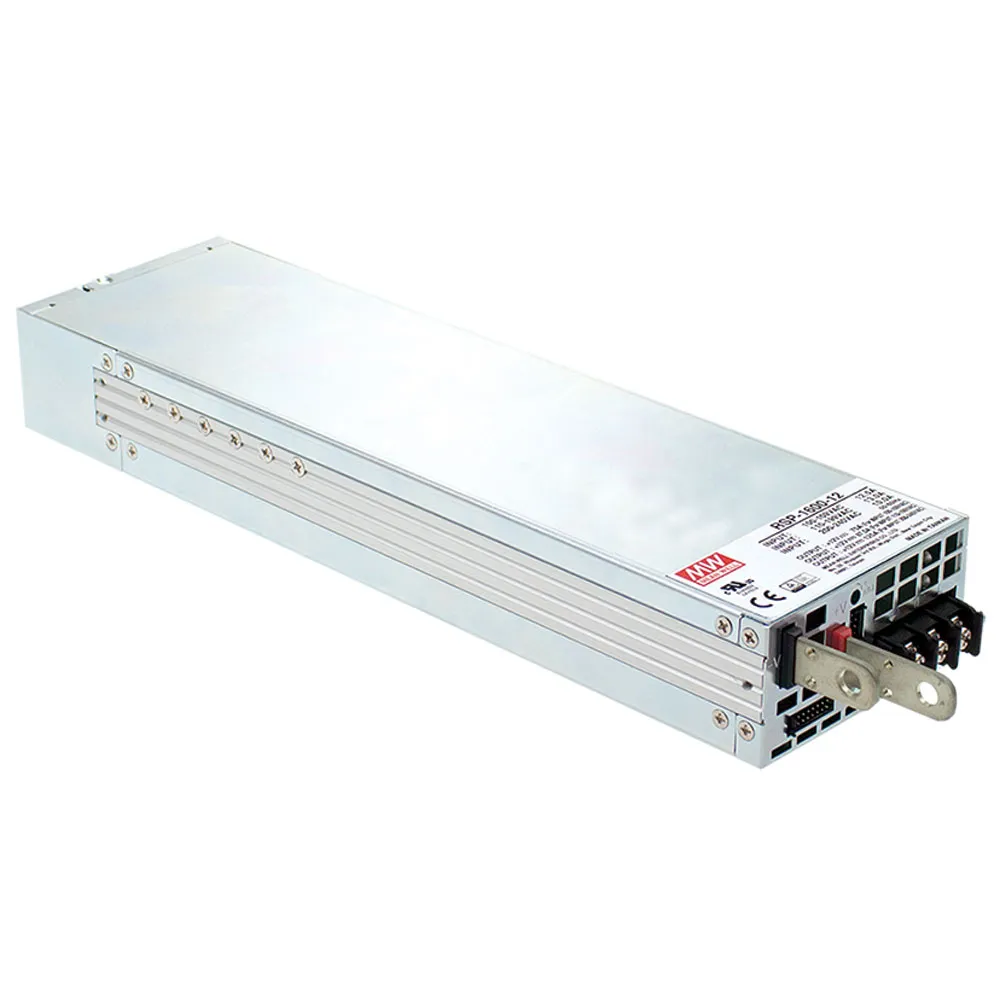

1500 Watt 12 Volt 125 Amp Enclosed Switching Power Supply
Features
- Universal AC input / Full range (Withstand 300VAC surge input for5 seconds)
- Built-in active PFC function
- High efficiency up to 89%
- Forced air cooling by built-in DC fan
- Output voltage and constant current level programmable
- Active current sharing up to 9600W (5+1)
- Built-in remote ON-OFF control / remote sense / auxiliary power DC OK signal / OTP alarm signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional PMBus protocol
- 5 year warranty
Applications
- Factory control or automation apparatus
- Test and measurement instrument
- Laser related machine
- Aging facility
- Digital broadcasting
- Constant current source
- Redundant system
Certificates
- Safety: UL/EN/IEC 60950-1
- EMC: EN 55022 / 55024
Overview
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:RSP-1600
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.61 in.
Length:11.81 in.
Width:3.35 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:14 A
Output
Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Lug Terminal Female
Output Current (Channel 1):125 A
Output Current:125 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:89%
Power Rating:1500 W
