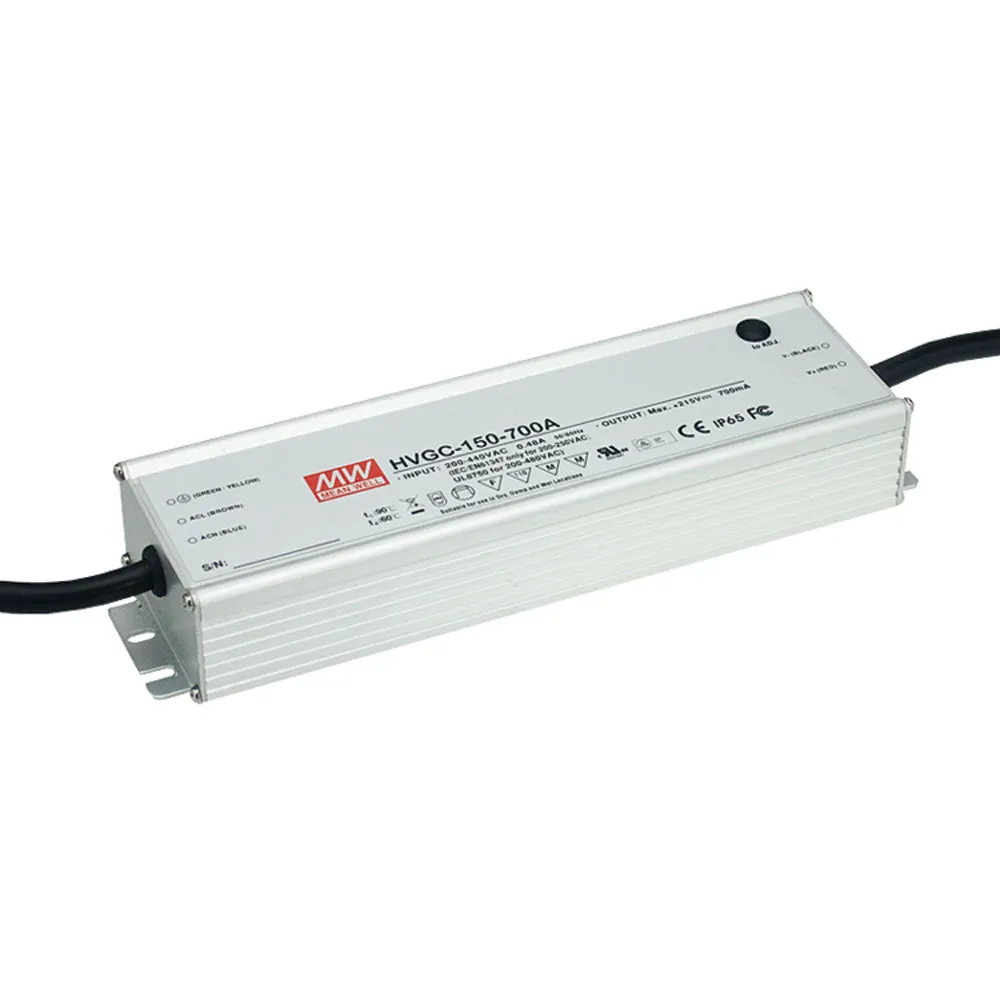

150 Watt Single Output LED Power Supply

500 mA @ 30-300 Volts
Constant current level adjustable through output cable with 0-10 VDC or 10V PWM signal or resistance.

Features

  • Constant current design
  • Wide input range: 180 to 528 VAC
  • Built-in active PFC function
  • High efficiency up to 91%
  • Protections: Short circuit / Over voltage / Over temperature
  • Cooling by free air convection
  • ICP point adjustable through output cable or internal potentiometer
  • IP67 or outdoor installations
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • Safety Standards: UL8750, CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, IP65 or IP67 approved
  • EMC emission: Compliance to EN55015, EN61000-3-2 Class C ( ≥50% load) ; EN61000-3-3, FCC part 15 class B
  • EMC immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
  • Suitable for dry / damp / wet locations
  • 5 year warranty

    • Product Identification

    Product Type:Auto Switching SMPS
    Manufacturer Series:HVGC-150

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, FCC, TUV, UL, UL, CUL, TUV, CB, CE, FCC, EN, EAC

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.5 in.
    Width:2.7 in.
    Length:9.6 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:80°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Maximum Input Current:0.5 A
    Input Voltage:180 VAC to 528 VAC

    Output

    Number of Outputs:1
    Output Connector Type:Stripped and Tinned
    Output Current:0.50 A
    Output Range:30 VDC to 300 VDC
    Output Voltage:See Output Range

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3750V
    IP Rating:IP67
    Efficiency:91%
    Power Rating:150 W
    ,
