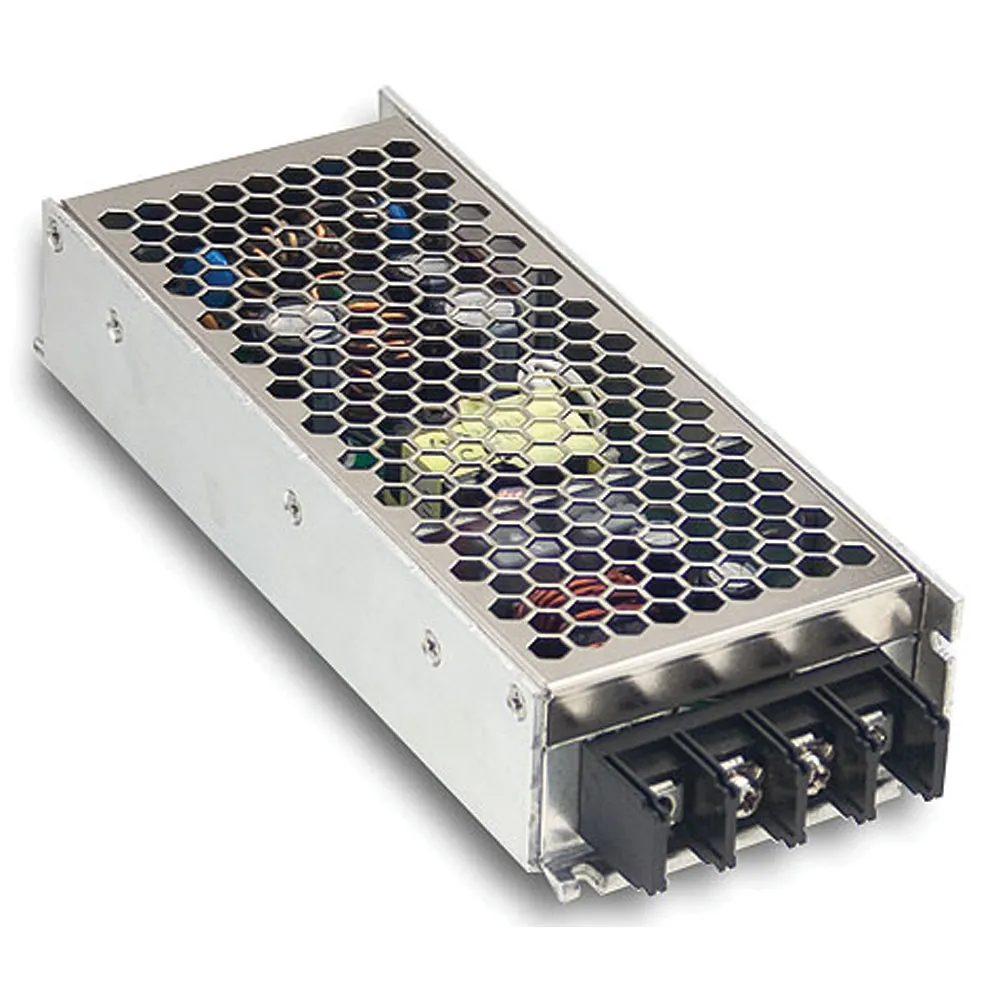

150 Watt Railway Single Output DC-DC Converter

5 Volts @ 30 Amps

Features:
  • Continuous Voltage Input: 67.2 ~ 143VDC
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 4000VDC I/O isolation / Input reverse polarity
  • Compliance to EN50155 railway standard
  • All using 105 long life electrolytic capacitors
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 36mm

    • Product Identification

    Product Type:Railway Single Output DC to DC Converter SMPS
    Manufacturer Series:RSD-150

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, UL, UL, CUL, CB, CE, EN, EAC

    Dimensions & Appearance

    Height:1.4 in.
    Width:3 in.
    Length:7.4 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Packaging

    Package:Railway Enclosed

    Input

    Input Voltage Range:67.2 VDC to 143 VDC
    Input Voltage:110 VDC
    Maximum Input Current:1.5 A

    Output

    Number of Outputs:1
    Output Voltage:5 VDC
    Output Connector Type:Screw Terminal Block
    Additional Output Voltages (VDC):N/A
    Output Current:30 A

    Features

    Efficiency:90%
    Power Rating:150 W
    ,
