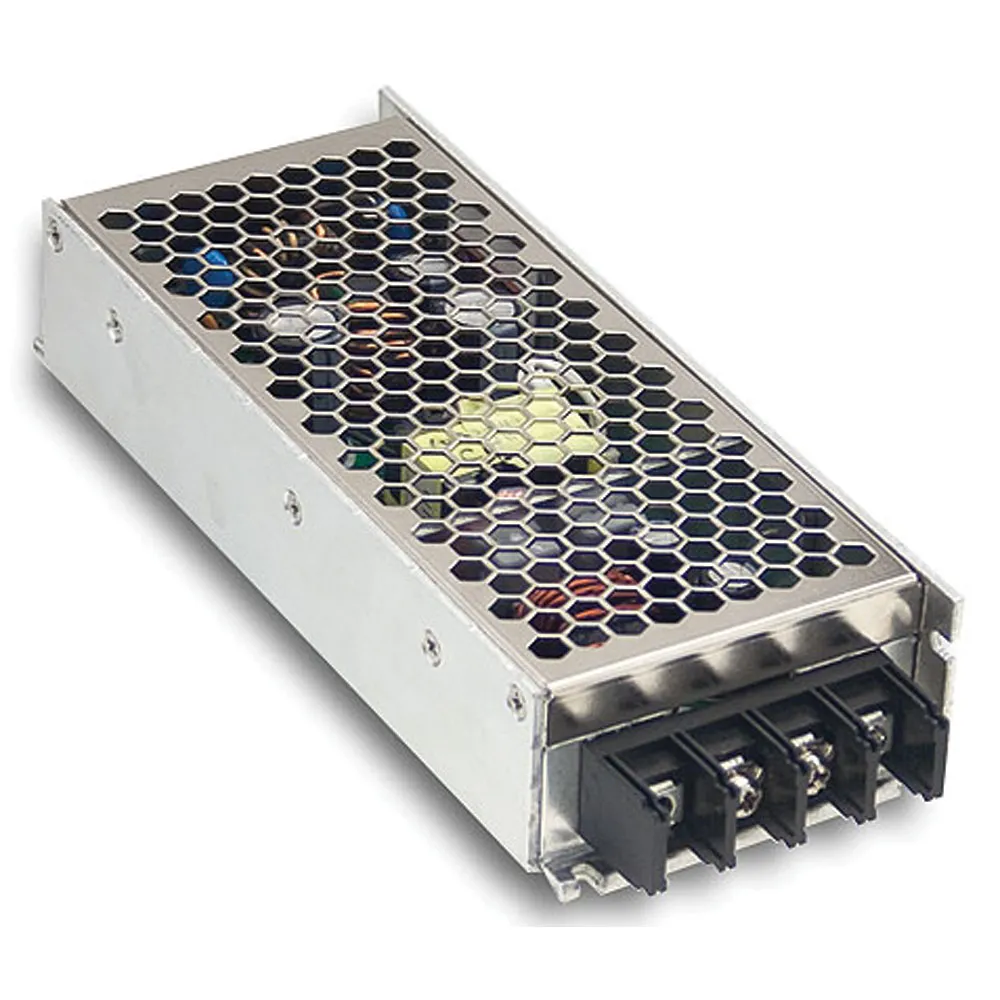

150 Watt Railway Single Output DC-DC Converter

Out: 24 Volts @ 6.3 Amps, Input: 33.6 ~ 62.4VDC

Features:
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature/ Input reverse polarity
  • 4000VDC I/O isolation
  • Compliance to EN50155 railway standard
  • All using 105 C long life electrolytic capacitors
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 36mm

    • Product Identification

    Product Type:Railway Single Output DC to DC Converter SMPS
    Manufacturer Series:RSD-150

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, UL, UL, CUL, CB, CE, EN, EAC

    Dimensions & Appearance

    Height:1.4 in.
    Width:3 in.
    Length:7.4 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Packaging

    Package:Railway Enclosed

    Input

    Input Voltage:48 VDC
    Input Voltage Range:33.6 VDC to 62.4 VDC
    Maximum Input Current:3.6 A

    Output

    Number of Outputs:1
    Output Connector Type:Screw Terminal Block
    Output Voltage:24 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:6.30 A

    Features

    Efficiency:91%
    Power Rating:151.2 W
    ,
