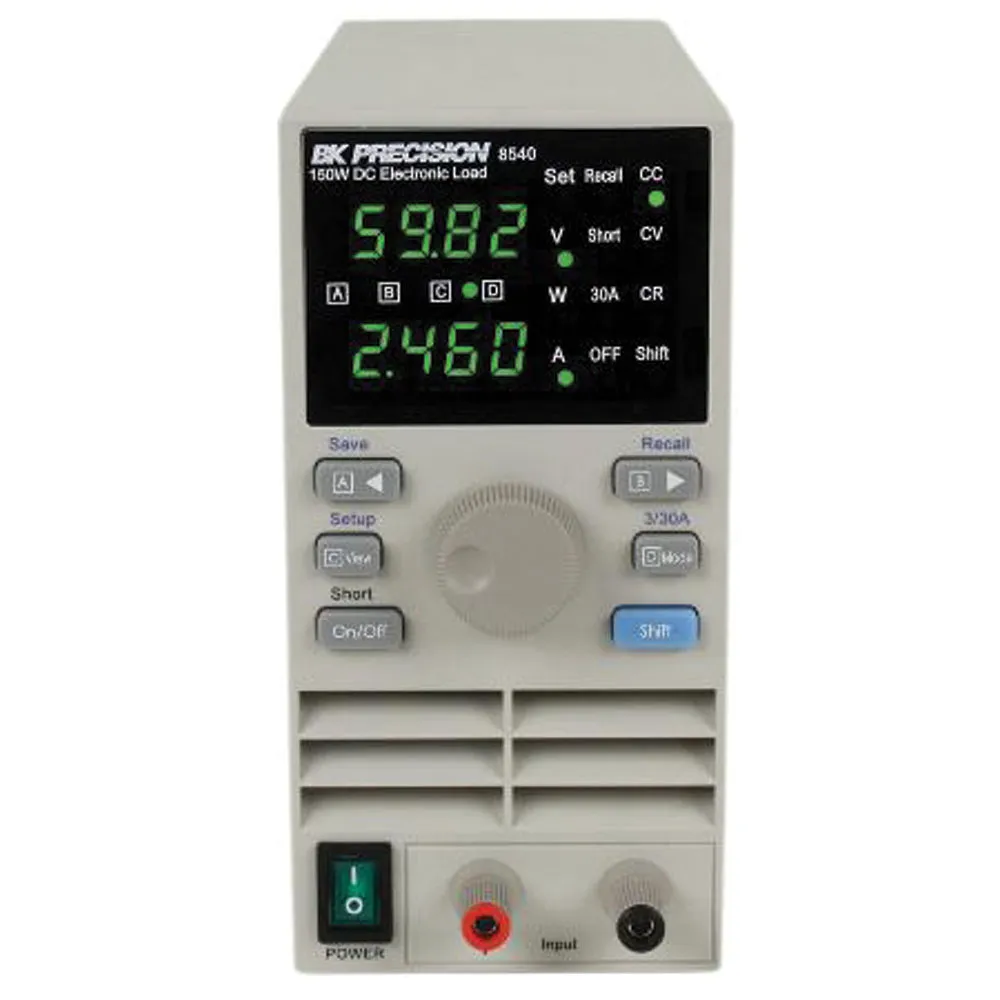

150W DC Electronic Load

The 8540 DC electronic load is a very compact, economically-priced instrument that is at home on both the bench and the production floor.

Though this is a DC load in a small package, it can reliably test a 5 volt power supply to 30 amps and do it continuously.

The 8540 DC electronic load can operate in CC, CV or CR mode while voltage/current or resistance/power values are measured and displayed in realtime, making it well suited to test a variety of DC power sources.

The 8540's performance is comparable to most full size bench DC loads, yet it does the job at half the price and takes up half the space on your bench.

Features:

Operates between 0-60 VDC, 1 mA-30 A (150 W maximum)

Bright, easy-to-read display

Very compact and light weight

Two current ranges: 3 A (1 mA resolution) and 30 A (10 mA resolution)

Constant current (CC), constant resistance (CR) and constant voltage (CV) operation

Over-current and over-voltage protection

Short mode to simulate shorts

Save up to 400 instrument settings

Size: 3.5"W x 6.9"H x 11.1"D

Weight: 6 lbs.

Includes: Power cord and User's Manual
