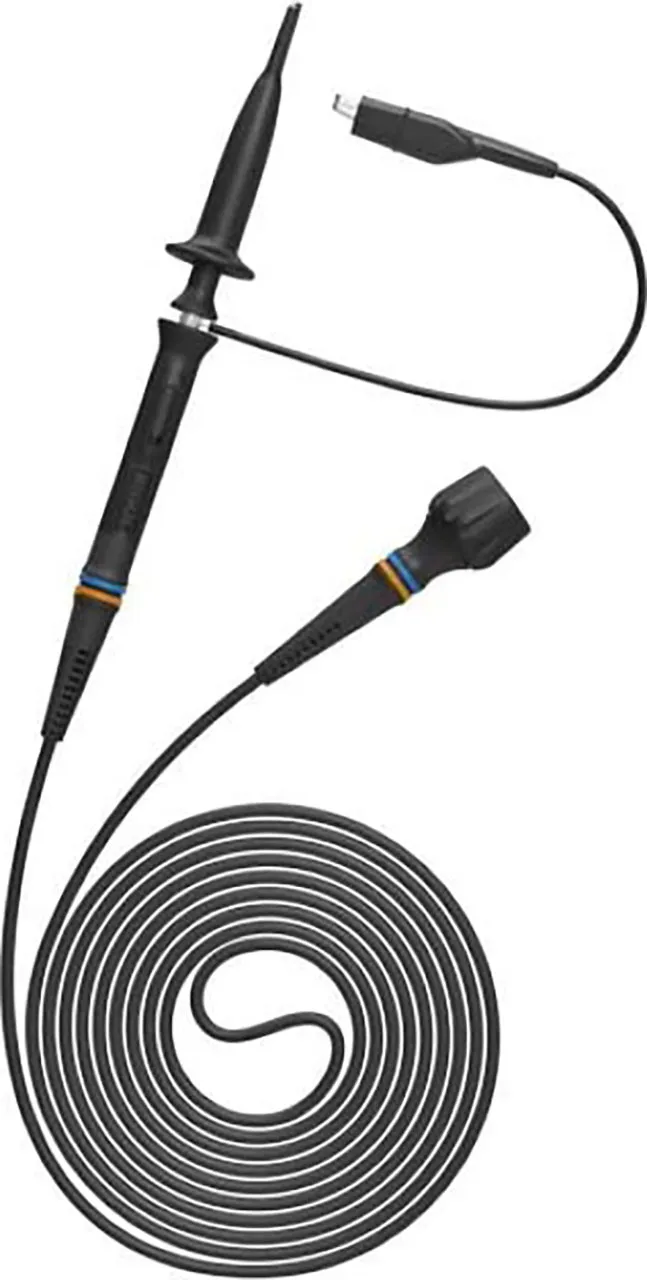

150 MHz Passive Oscilloscope Probe (PVP2150)

Features

• PVP2150: 1X/35MHz, 10X/150MHz, one/two Probes Kit
• 10X or 1X Switchable
• 10 pF to 25 pF Compensation Range
• 1X: 1MΩ ±1% input resistance 50 pF ±20 pF input capacitance 150 VRMS CAT II max. rated input voltage
• 10X: 10MΩ Ω1% input resistance 10pF ±5pF input capacitance 300 VRMS CAT II max. rated input voltage

Overview

The Passive Probe is used with oscilloscopes. Check the frequency compensation and adjust it to match the Oscilloscope that it is being used.
