150 Foot CAT 6 Shielded ETHERLATCH Cable
Features
- Length (Feet): 150
- Capacitance Between Conductors: ≦ 12.3pF/ft
- Capacitance Between Conductors and Shield: ≦ 23.8pF/ft
- Conductor DC Resistance: < 75 ohm/km
- Shield DC Resistance: < 100 ohm/km
- Skew Delay: < 6nS@100m
- Impedance: 100
- Voltage Breakdown: 500V
- Insulation: FPE
- Shield: 16*4/0.10 Braided Magnesium Alloy
- Drain Wire: 1/0.40 TC
- Jacket: PVC
- Conductors: 1/0.57mm Solid BC
Overview
Category 6 (Cat 6) Ethernet cable is suitable for solid digital audio connections such as Dante, AES50, and MADI, lighting protocols like DMX512 and ARTNET, or video connections such as HDBaseT, and HDMI over ethernet up to 300ft. DMX512 and ARTNET.
This heavy duty Cat 6 Etherlatch™ cable is a twisted pair category cable with 4 pairs of solid conductors offering dependability and providing an ultra stable connection and exceptionally low skew delay up to 300ft. They are designed to comply with AVoIP protocols.

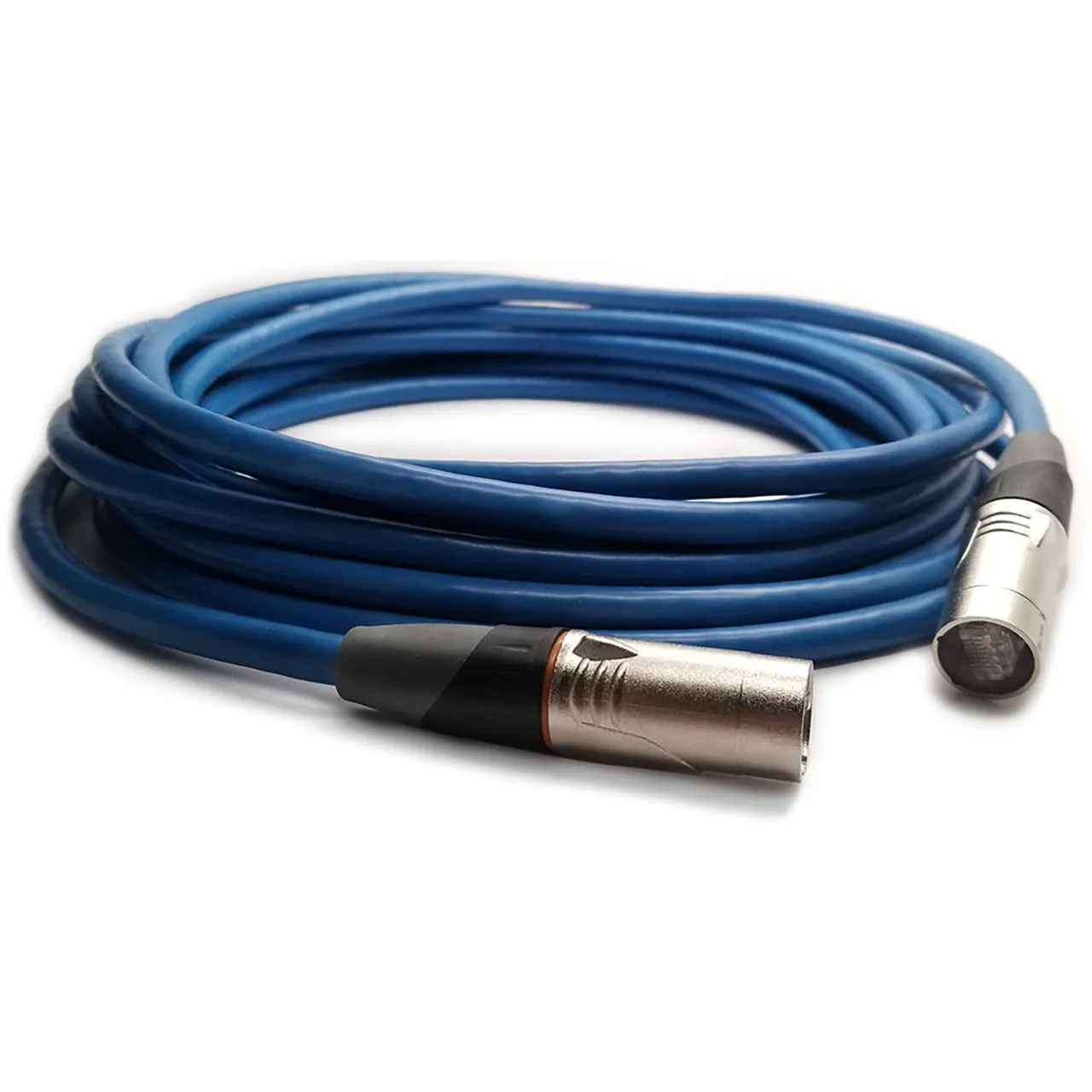

The IO-EC-X connectors feature a rugged metal shell housing a standard RJ45 plug to protect it from being shattered by massive objects. The locking mechanism makes each connection as robust as possible and prevents accidental disconnection. The plastic strain relief extends the life of the network cable, while the braided magnesium alloy shield helps prevent crosstalk between cables.
Etherlatch™cables are a perfect alternative for AVL networking applications where a more robust connection method is necessary. Running audio over Ethernet, networking digital audio, or lighting control will require Etherlatch™style cables. This Cat 6 Etherlatch™cable is perfect for applications where strain relief may be required.
NOTE: Not compatible with network switches.
