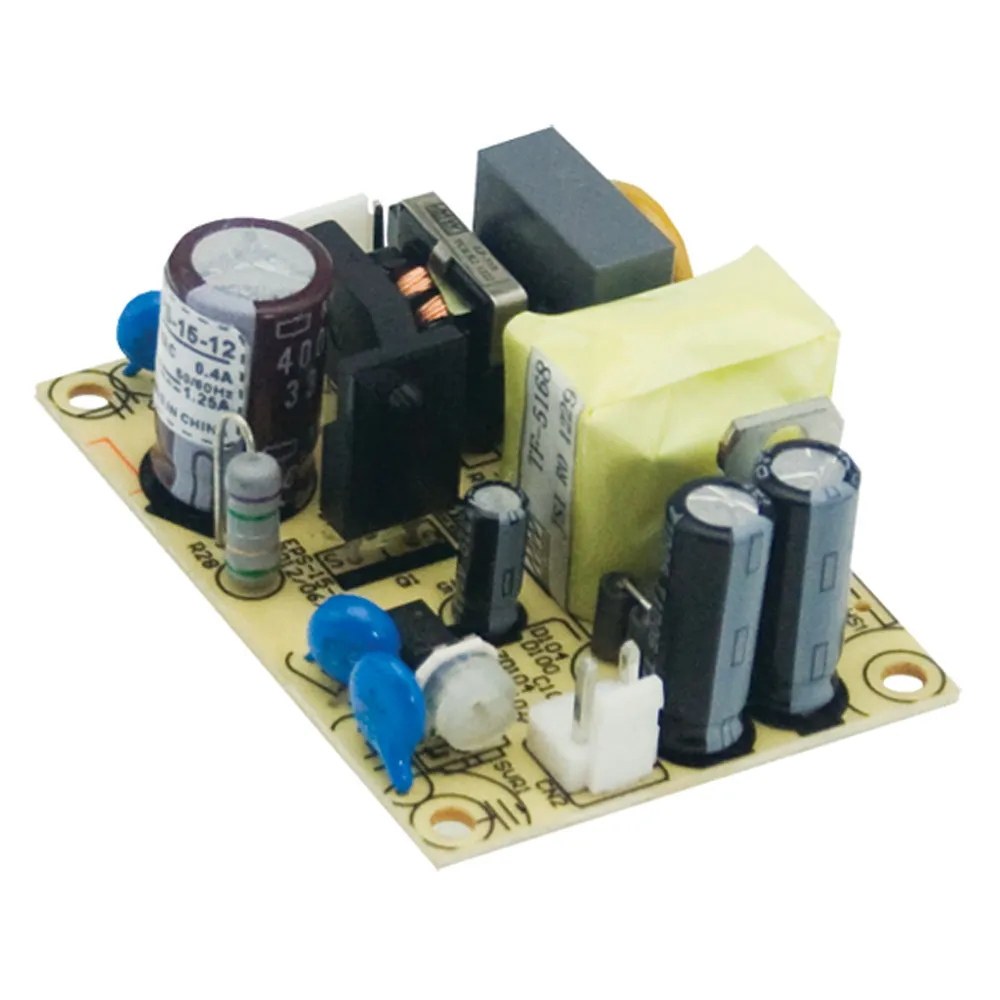

15 Watt Single Output Open Frame Switching Power Supply

12 Volts @ 1.25 Amps

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Efficiency: 82%
  • Compact size: 1.8" x 2.5"
  • No load power consumption <0.3W
  • Agency Approvals: UL / cULus / TUV / CB / CCE
  • Safety Standards: UL60950-1, TUV EN60950-1 approved
  • EMC emission compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
  • EMC immunity compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
  • 3 year warranty

    • Product Identification

    Manufacturer Series:EPS-15

    Compliance

    Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:0.90 in.
    Width:1.80 in.
    Length:2.50 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:0.4 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B2P-VH or equiv.
    Additional Output Voltages (VDC):10.8 to 13.5
    Output Voltage:12 VDC
    Output Current:1.38 A

    Features

    PFC Function:No
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:82%
    Power Rating:15 W
    ,
