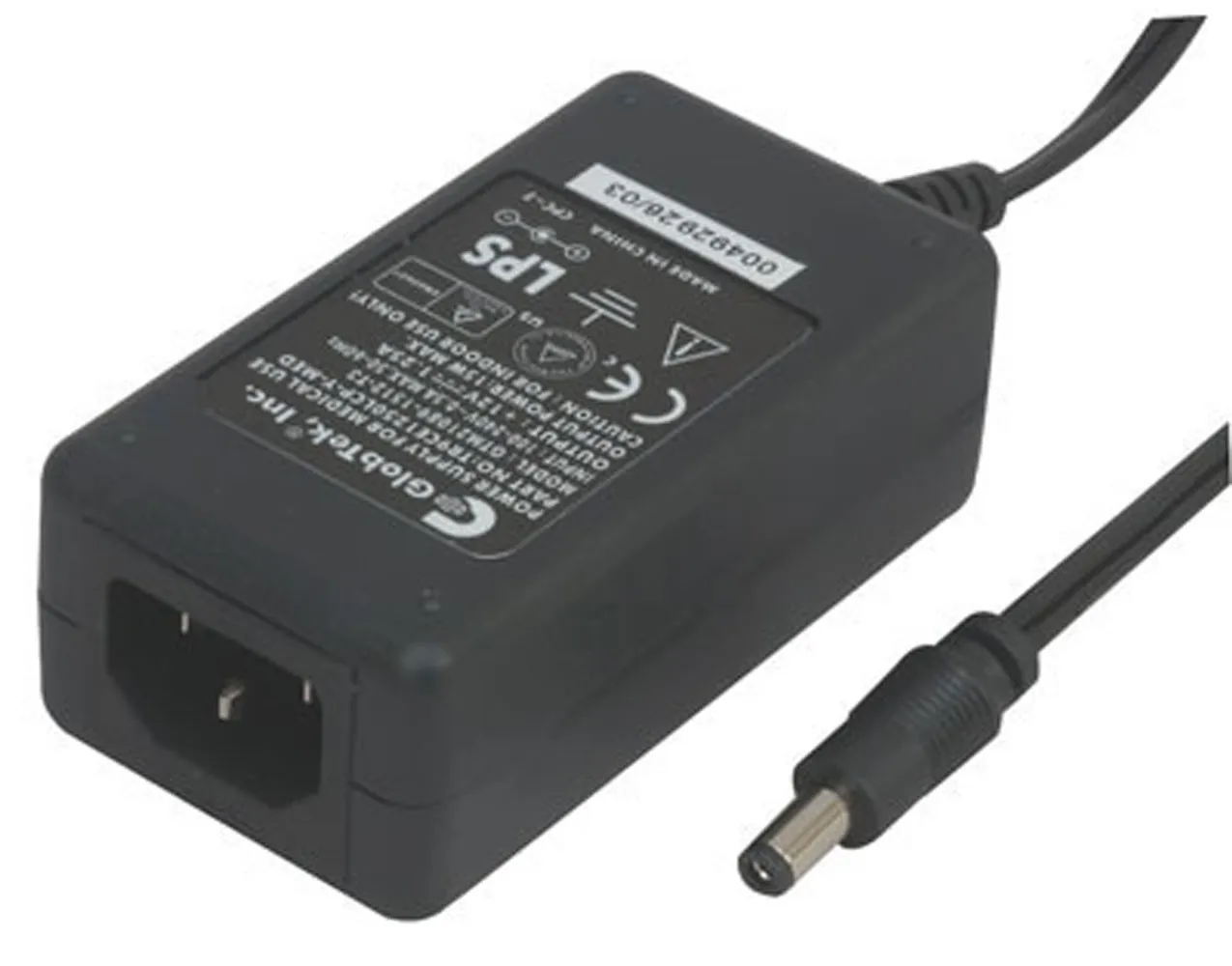

15 Watt AC-to-DC Regulated Medical Switching Table-Top Power Supply

12 Volts @ 1.25 Amps

Features

  • Output connector: 2.5mm x 5.5mm center positive female barrel plug
  • Input Voltage: 90-264VAC @ 47-63Hz
  • 3-wire AC input
  • Leakage current: 0.1mA max.
  • Line regulation: ± 5%
  • Load regulation: ± 5%
  • Isolation voltage: 4000VAC
  • Ripple and noise: 1% or 100mV, whichever is smaller
  • DC cord length: 6 feet
  • AC cord not included (Recommend a 3-conductor AC power cord, P/N: 2271575)
  • Size: 2.9"L x 2.0"W x 1.6"H
  • Certifications: UL/CSA/TUV/CE

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:TR9C

Compliance

Agency Approvals: CE, CSA, TUV, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.6 in.
Width:2 in.
Length:2.9 in.

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Additional Output Voltages (VDC):N/A
Output Current:1.25 A

Features

Polarity:Center Positive
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Power Rating:15 W
,
