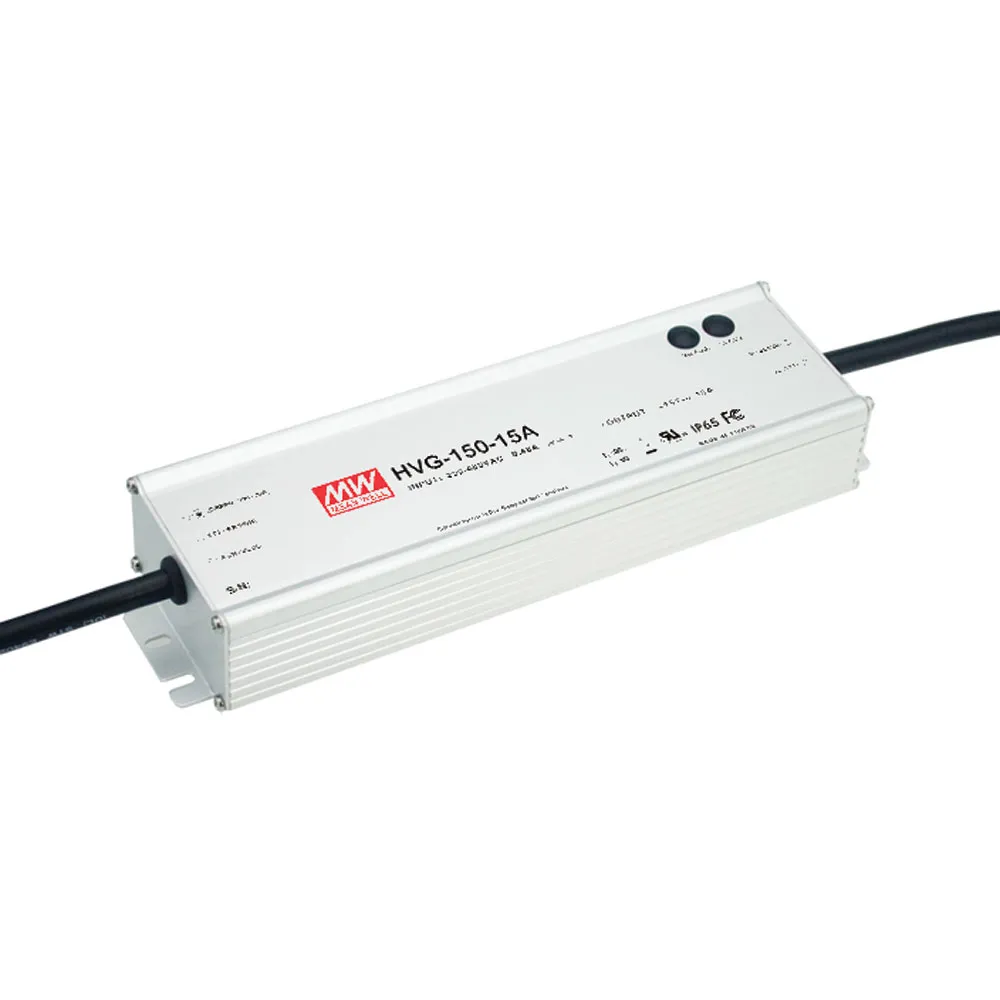

150 Watt Single Output Switching LED Power Supply

15 Volts @ 10 Amps
Constant current level adjustable through output cable with 0~10Vdc or 10V PWM signal or resistance

Features

  • Voltage input: 180 - 528VAC / 254-747VDC
  • Built-in active PFC function
  • High efficiency up to 89%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • OCP point adjustable through output cable or internal potentiometer
  • IP67 design for indoor or outdoor installations
  • Suitable for dry / damp / wet locations
  • Three in one dimming function (0~10Vdc or 10V PWM signal or resistance)
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • 5 year warranty

    • Product Identification

    Product Type:Auto Switching SMPS
    Manufacturer Series:HVG-150

    Compliance

    Agency Approvals: CUL, EAC, EN, FCC, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.5 in.
    Width:2.7 in.
    Length:9.6 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Maximum Input Current:0.5 A
    Input Voltage:180 VAC to 528 VAC

    Output

    Number of Outputs:1
    Output Voltage:15 VDC
    Output Connector Type:Stripped and Tinned
    Output Range:N/A
    Output Current:10 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3750V
    IP Rating:IP67
    Efficiency:89%
    Power Rating:150 W
    ,
