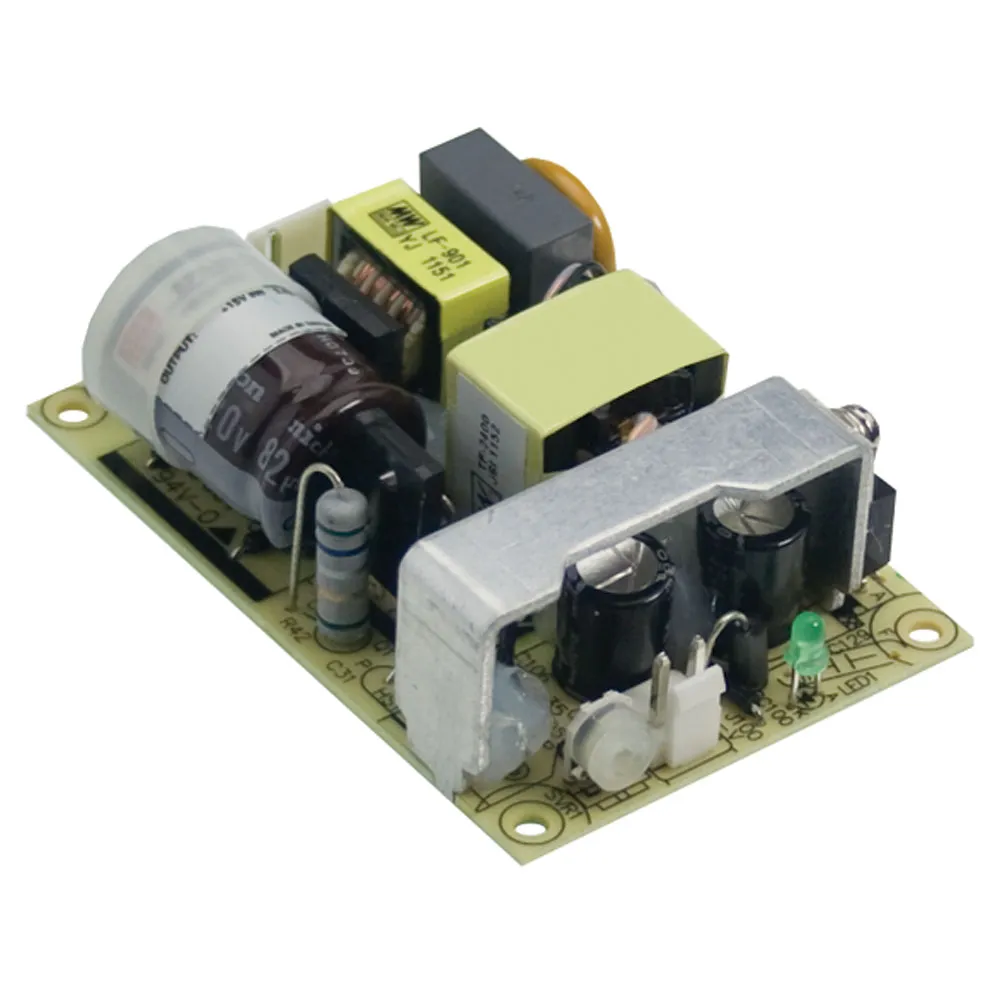

35 Watt Single Output Switching Power Supply
15 Volts @ 2.4 Amps
Includes:
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 3" 2" compact size
- 3 years warranty
- 88% efficiency
- LED indicator for power on
- No load power consumption<0.3W
Product Identification
Manufacturer Series:EPS-35
Compliance
Agency Approvals: CCC, CE, CUL, EAC, EN, TUV, UKCA, UL
Dimensions & Appearance
Style:Open Frame
Height:0.90 in.
Width:2 in.
Length:3 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:0.75 A
Output
Number of Outputs:1
Output Connector Type:JST B2P-VH or equiv.
Additional Output Voltages (VDC):13.5 to 16.5
Output Voltage:15 VDC
Output Current:2.65 A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:88%
Power Rating:39.75 W
