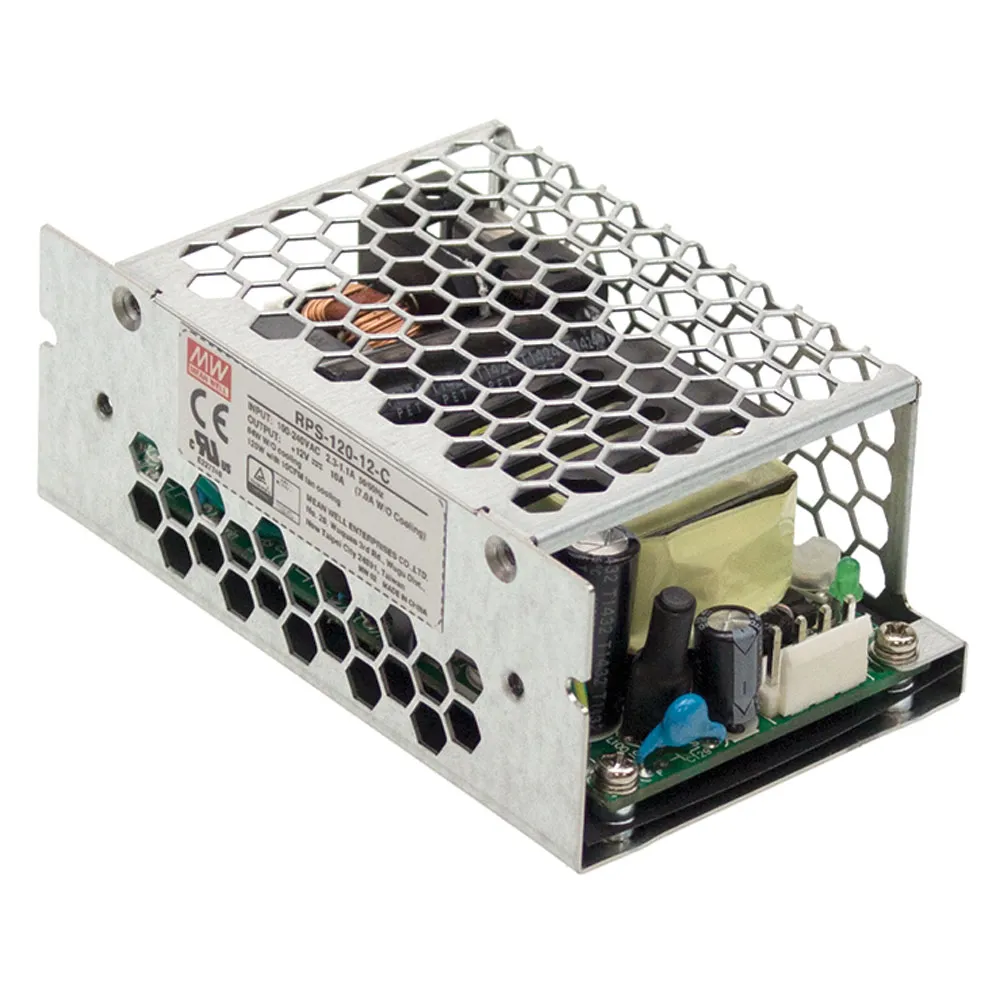

15 Volt 8 Amp 120 Watt Enclosed Switching Green Medical Type Power Supply

15 Volts @ 8 Amps

Features

  • 4" x 2" miniature size
  • Universal AC input / full range
  • Medical safety approved (2x MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • EMI Class B for both Class I (with FG) and Class II (without FG) configuration
  • Low leakage current <190µA
  • No load power consumption <0.3W
  • High efficiency up to 88.5%
  • Protections: Short circuit, overload, over voltage, over temperature
  • Cooling by free air convection for 84W and 120W with 10CFM forced air
  • Built-in 12V/0.5A fan supply
  • LED indicator for power ON
  • 3 year warranty

    Applications

  • Oral irrigator
  • Hemodialysis machine
  • Medical monitors
  • Sleep apnea devices
  • Pump machines

    • Product Identification

    Product Type:Medical Switching SMPS
    Manufacturer Series:RPS-120

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Medical Enclosed
    Color:Silver
    Height:1.57 in.
    Width:2.44 in.
    Length:4.07 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:80 VAC to 264 VAC
    Maximum Input Current:2.1 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B4P-VH or equiv.
    Output Voltage:15 VDC
    Output Current:5.60 A

    Features

    PFC Function:No
    Minimum Isolation Voltage:4000V
    Efficiency:88.5%
    Power Rating:120 W
    ,
