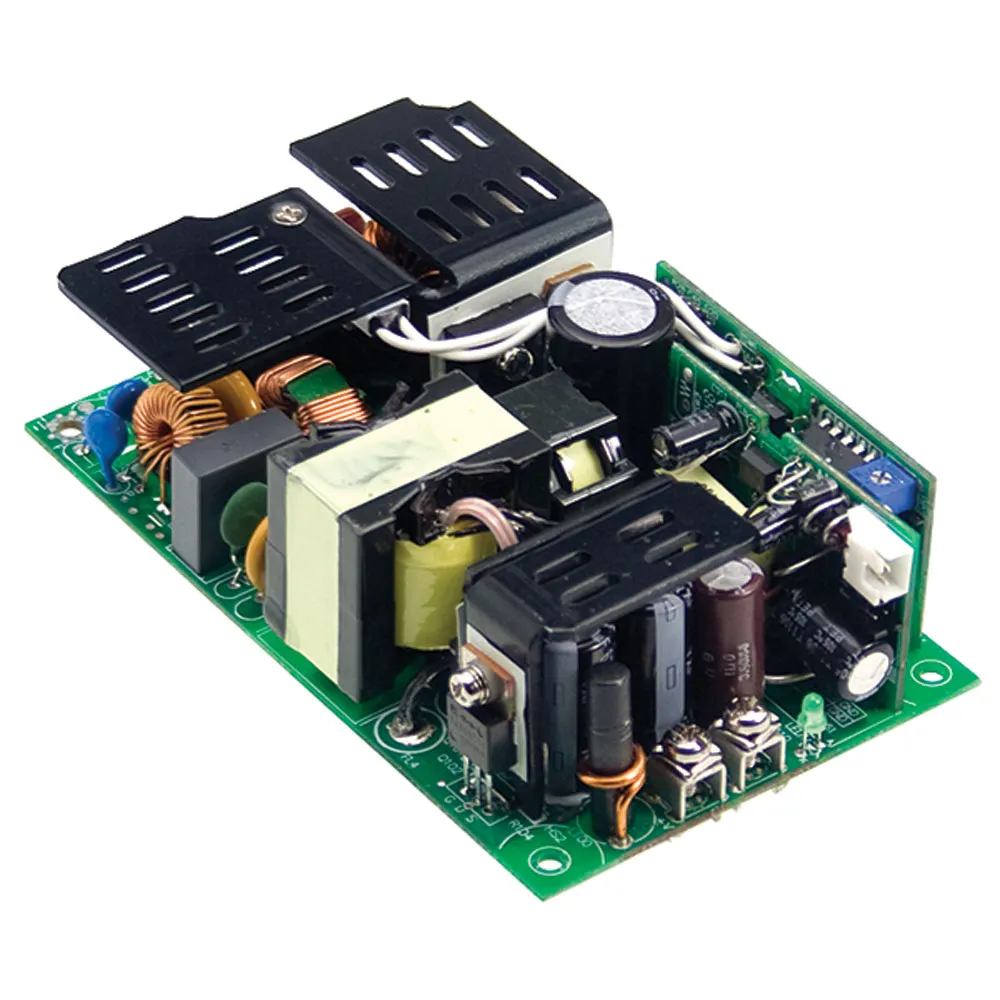

300 Watt Single Output with PFC Function
15 Volts @ 20 Amps
Features:
- Universal AC input/ Full range
- Built-in active PFC function
- Withstand 300VAC Surge input for 5 seconds
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- 5"x3" compact size
- Built-in 12V/0.5A auxiliary output
- Free air convection for 200W and 300W with 20.5 CFM forced air
- With power good and fail signal output
- Built-in remote sense function
- No load power consumption under 0.5W by PS-ON control
- Standby 5V@1A with fan @ 0.6A without fan
- 3 years warranty
Product Identification
Manufacturer Series:EPP-300
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Open Frame
Height:1.40 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.6 A
Output
Number of Outputs:1
Output Voltage:15 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:20 A
Features
PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:90%
Power Rating:300 W
