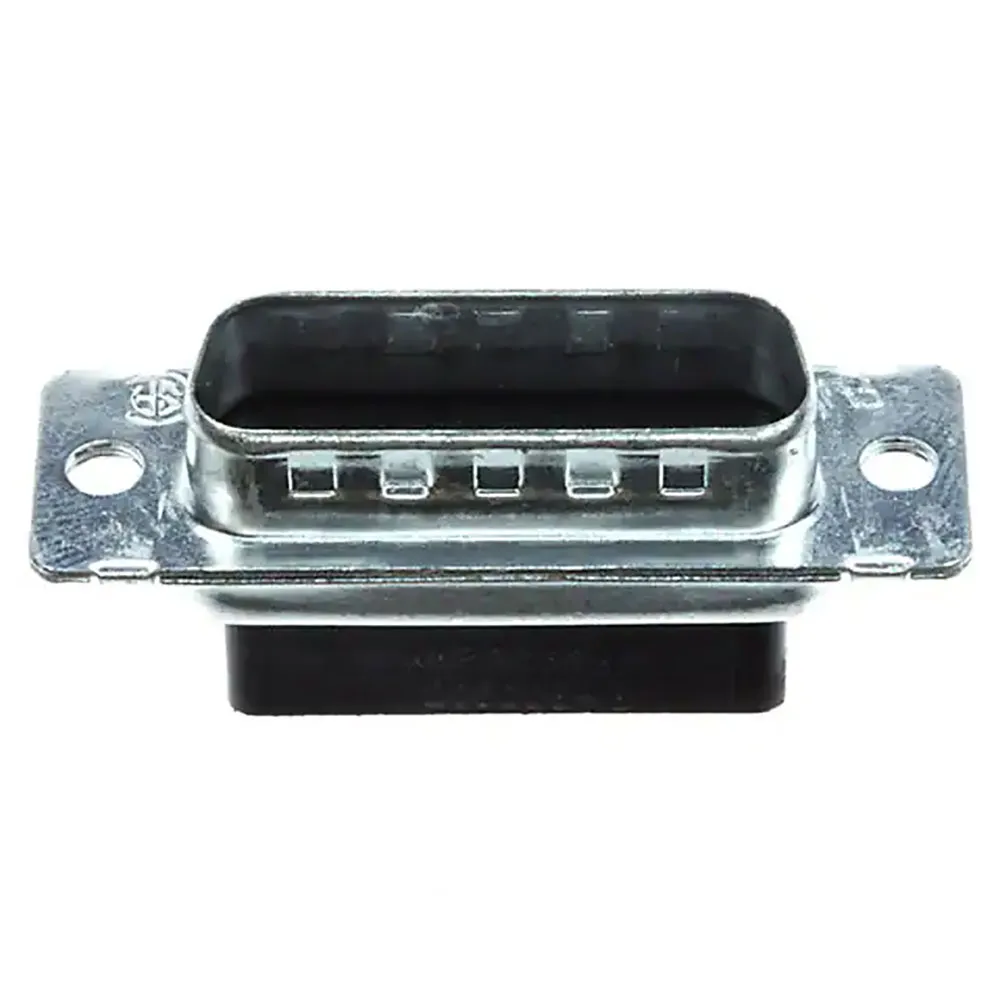

15 Position D-Sub Connector Housing Plug for Male Contacts Tin

Specifications

  • Series: Amplimite HDP-20
  • Connector Style: D-Sub
  • Connector Type: Plug for Male Contacts
  • Number of Positions: 15
  • Number of Rows: 2
  • Shell Size, Connector Layout: 2 (DA, A)
  • D-Sub Contact Size: 20
  • Contact Type: Signal
  • Mounting Type: Free Hanging (In-Line)
  • Flange Feature: Housing/Shell (Unthreaded)
  • Features: Grounding Indents
  • Shell Material, Finish: Steel, Tin Plated
  • Shell Finish Thickness: n/a
  • Dielectric Material: Polyamide (PA), Nylon, Glass Filled
  • Color: Black
  • Note: Contacts Not Included
  • Base Number: 205206

Product Identification

Manufacturer Series:205206
Product Type:Plug Housing

Dimensions & Appearance

Mounting:Cable Mount
Body Orientation:Straight
Body Plating:Tin

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-55°C

Features

Number of Rows:2
Shell Material:Steel
Number of Contacts:15
Contact Material:N/A
Contact Plating:N/A
Housing Material:Polyamide (PA), Nylon, Glass Filled
Pitch:2.77 mm
Gender:Plug
Termination:For Male Contacts
Voltage Rating:N/A
Current Rating:N/A
,
