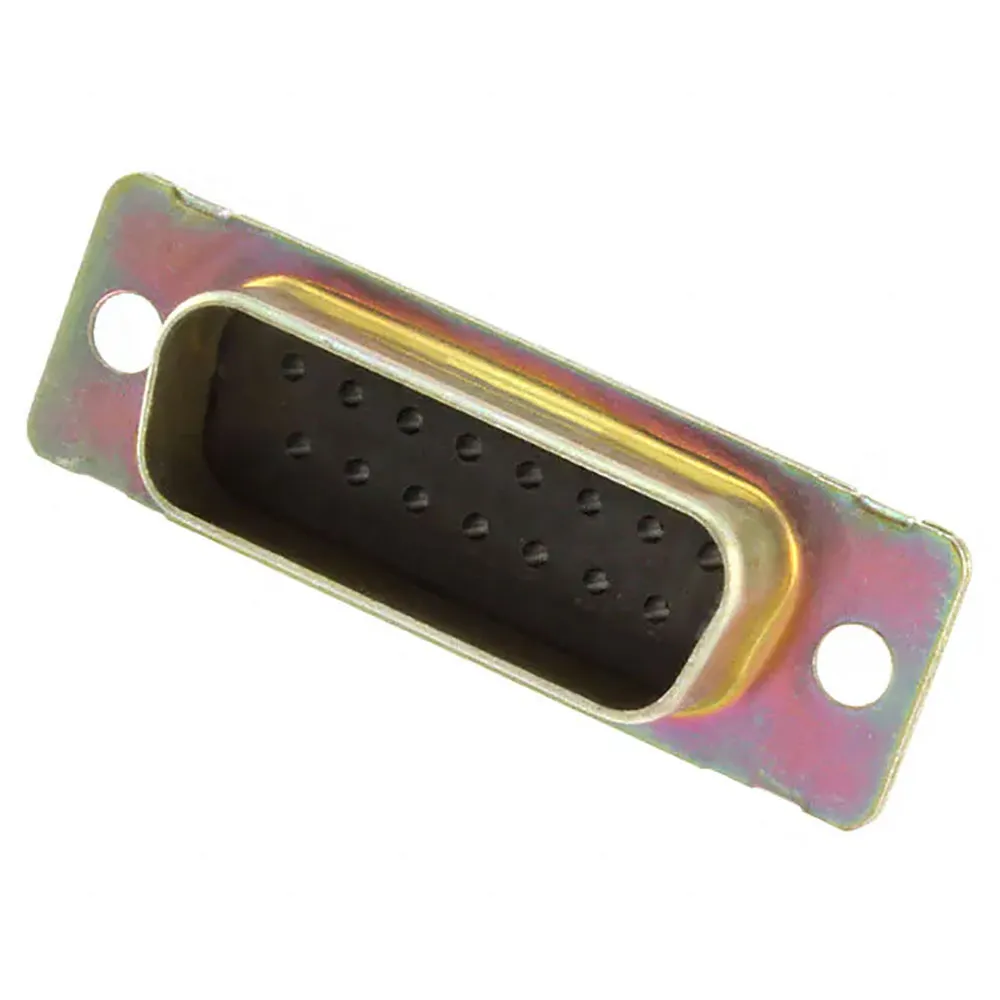

15 Position D-Sub Connector Housing Plug for Male Contacts

Specifications

  • Series: Military, MIL-DTL-24308, AMPLIMITE 109
  • Connector Style: D-Sub
  • Connector Type: Plug for Male Contacts
  • Number of Positions: 15
  • Number of Rows: 2
  • Shell Size, Connector Layout: 2 (DA, A)
  • D-Sub Contact Size: 20
  • Contact Type: Signal
  • Mounting Type: Free Hanging (In-Line)
  • Flange Feature: Housing/Shell (Unthreaded)
  • Shell Material, Finish: Steel, Cadmium Plated
  • Shell Finish Thickness: n/a
  • Dielectric Material: Polyester
  • Color: Black
  • Note: Contacts Not Included
  • Base Number: 205164

Product Identification

Manufacturer Series:205164
Product Type:Plug Housing

Dimensions & Appearance

Mounting:Cable Mount
Body Orientation:Straight
Body Plating:Cadmium

Operating conditions

Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C

Features

Number of Rows:2
Shell Material:Steel
Number of Contacts:15
Housing Material:N/A
Contact Material:N/A
Contact Plating:N/A
Pitch:2.77 mm
Gender:Plug
Termination:For Male Contacts
Voltage Rating:N/A
Current Rating:7.5 A
,
