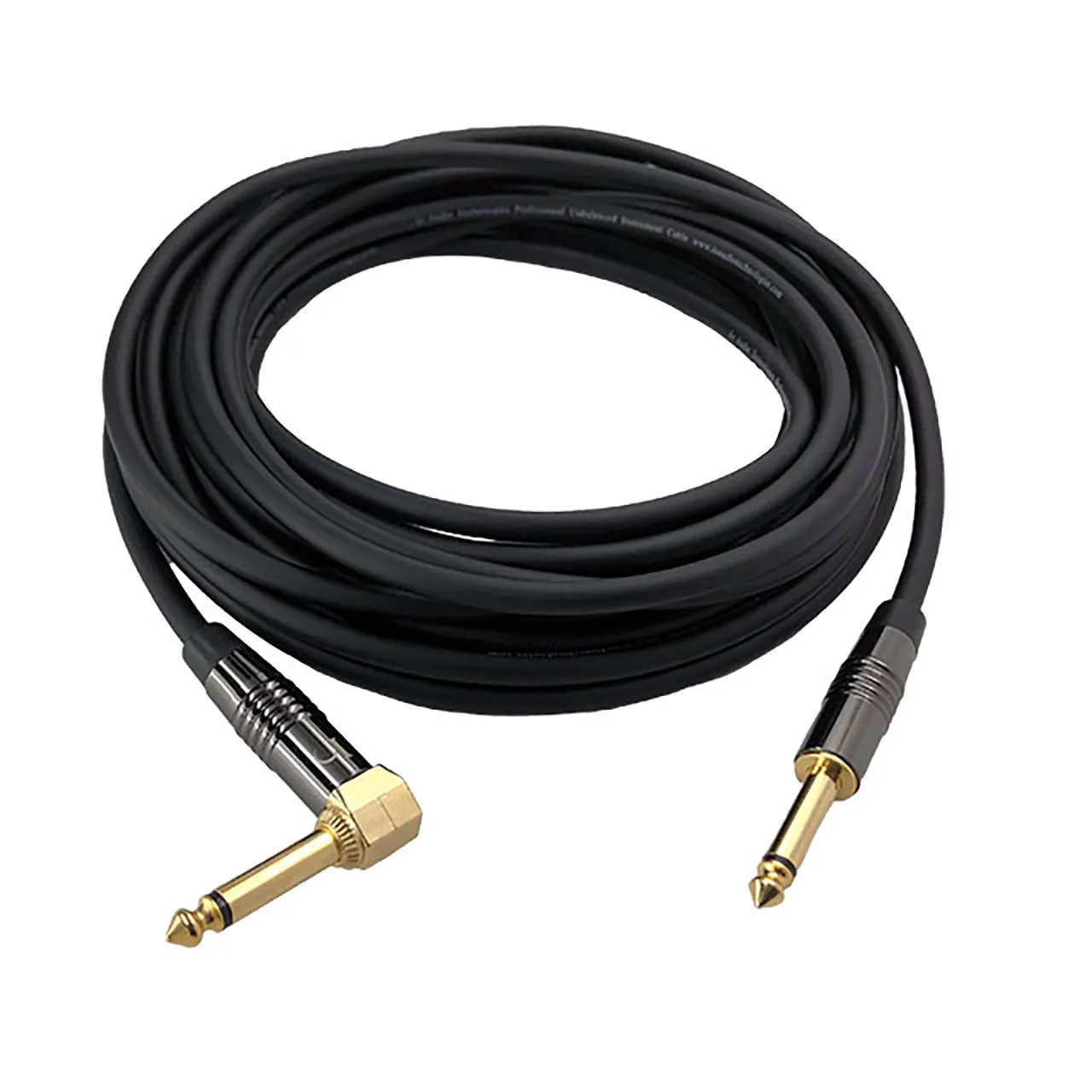

15 Foot Instrument Cable 1/4" TS to 1/4" TS Right Angle CH-Series Connectors
Features
- Length (Feet): 15
- Capacitance Between Conductors and Shield: ≦ 33.3pF/ft
- Conductor DC Resistance: 0.035 ohm/m +/- 1%
- Shield DC Resistance: 0.033 ohm/m +/- 1%
- Voltage Breakdown: 500V
- Insulation: Conductive PE
- Shield: Spiraled 55/0.12 BC OFC
- Jacket: PVC
- Conductors: 50/0.12mm BC OFC
Overview
The TCH Series right angle instrument cable was made with professional musicians in mind, to deliver pristine audio quality while being able to endure the rigors of a live set.
To meet the sonic expectations of discerning musicians around the world, the TCH Series instrument cable contains OFC conductors and a layer of conductive PE insulation. The use of these materials ensures that the final product consistently delivers a solid performance. Conductive PE absorbs changes in capacitance that occur when musicians run, walk, or shake their instruments on stage.
The IO-T2MCH & IO-T2MCH-R connectors feature an extremely durable nickel tin plated brass shell and includes a clamp that tightens onto the cable to provide strain relief while an additional rubber boot delivers extended support. The gold plated plug contacts, silver plated wire terminals, and conductive PE insulation all ensure the best possible signal flow and extend the useful life of the cable.
The cable comes equipped with a durable and flexible PVC jacket to protect the cable from whatever life throws at it. Additionally, a copper spiral shield protects the conductors from EMI. The result? A dependable companion for any musician.
