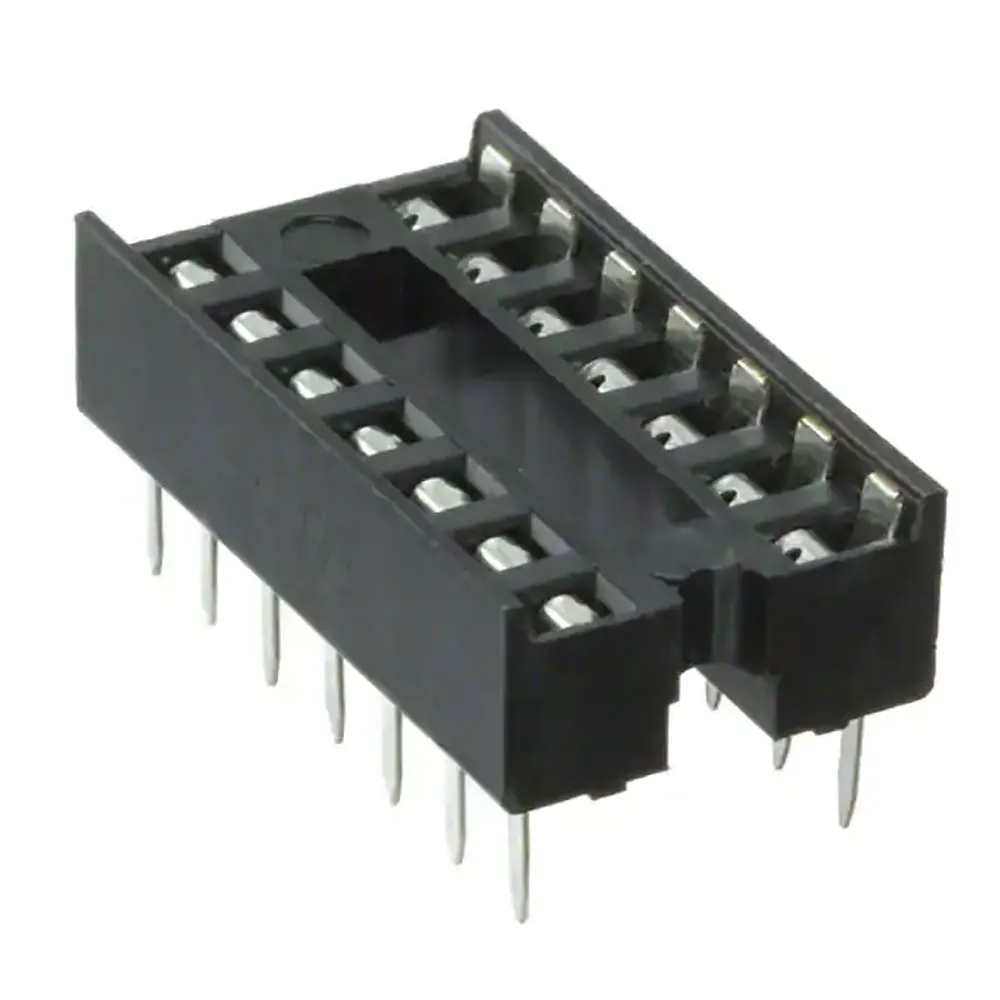

14-Position DIP Socket 0.3" (7.62mm) Row Spacing Tin Through Hole

Specifications

  • Type: DIP, 0.3" (7.62 mm) Row Spacing
  • Number of Positions or Pins (Grid): 14 (2 x 7)
  • Pitch - Mating: 0.100" (2.54 mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 60 µin (1.52 µm)
  • Contact Material - Mating: Phosphor Bronze
  • Mounting Type: Through Hole
  • Features: Open Frame
  • Termination: Solder
  • Pitch - Post: 0.100" (2.54 mm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: Flash
  • Contact Material - Post: Brass, Copper
  • Housing Material: Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled
  • Operating Temperature: -40°C to 105°C
  • Termination Post Length: 0.118" (3 mm)
  • Material Flammability Rating: UL94 V-0
  • Current Rating: 1 A
  • Contact Resistance: 20 mOhm
  • Base Number: 2199298

,
