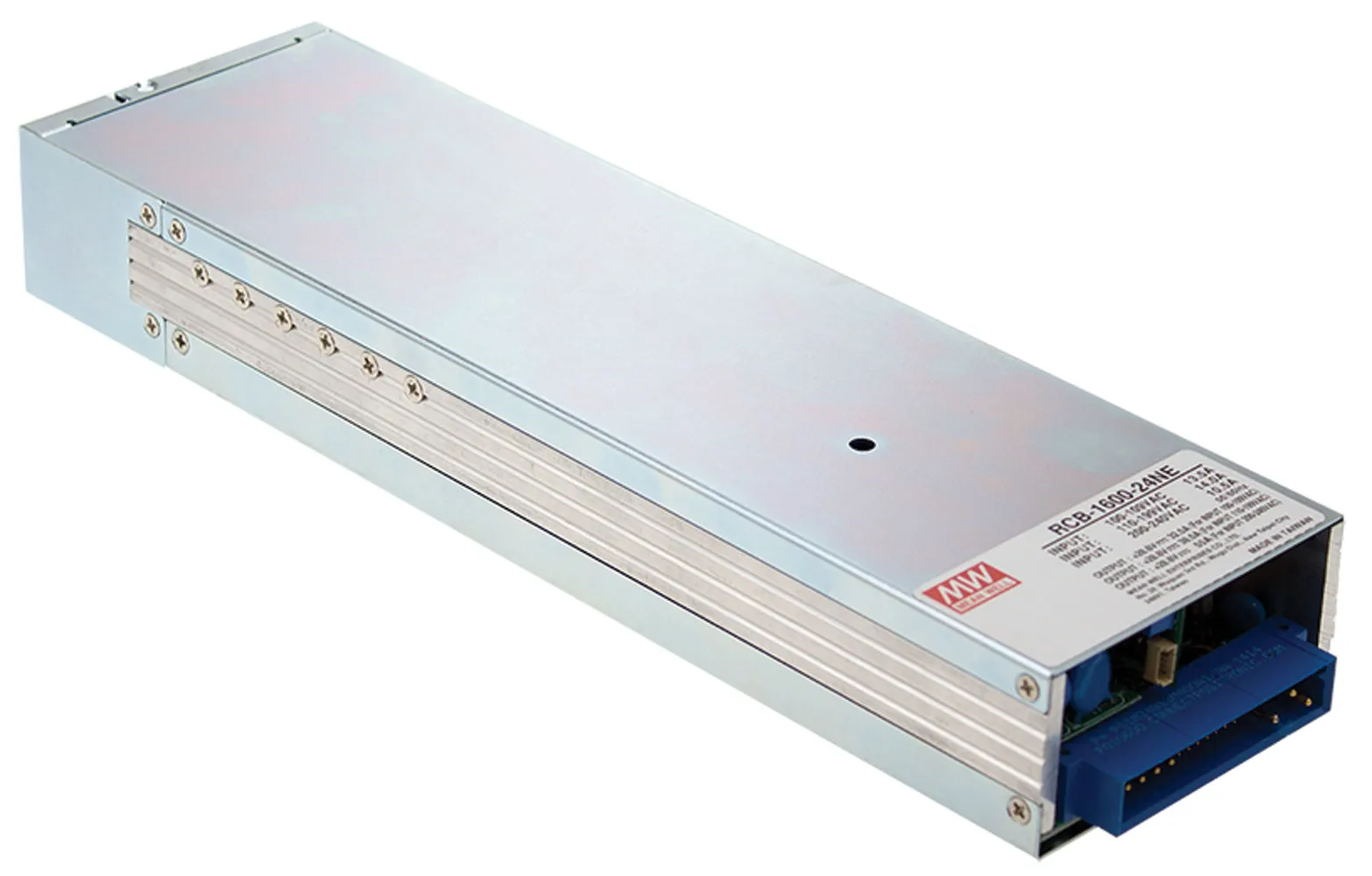

1440 Watt 14.4V Rack Mountable Front End Battery Charger

14.4V (Vboost) / 13.8V (Vfloat) @ 100 Amps

Features

  • Recommended Battery Capacity: 330 to 1000 Ah
  • Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
  • Built-in default 3 stage charging curves and programmable curve
  • Built-in I²C interface, PMBus protocol
  • Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
  • Built-in active PFC function
  • Forced air cooling by built-in DC fan
  • Output voltage and current programmable
  • Built-in OR-ing FET, support hot swap (hot plug)
  • Active current sharing up to 8000W for one 19" rack shelf
  • Protections: Battery under voltage / Battery no connection protection / Short circuit / Over temperature
  • Optional conformal coating
  • 5 year warranty

Applications

  • Large scale DC UPS or emergency backup system
  • Marine battery charger module
  • Electric scooter or vehicle charger station
  • Wastewater treatment system
  • Electrolysis system

Certificates

  • Safety: UL/EN/IEC 60950-1
  • EMC: EN 55022 / 55024

Product Identification

Product Type:Battery Charger
Additional Feature:Rack Mountable Front End Battery Charger
Manufacturer Series:RCB-1600

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Color:Silver
Height:1.61 in.
Length:11.81 in.
Width:3.35 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:14 A

Output

Output Connector Type:Positronic PCIM34W13M400A1
Output Range:13.8 VDC to 14.4 VDC
Output Voltage:14.4 VDC
Output Current:100 A

Features

PFC Function:Yes
AC Power Cord:Positronic PCIM34W13M400A1
Efficiency:90.5%
Power Rating:1600 W
,
