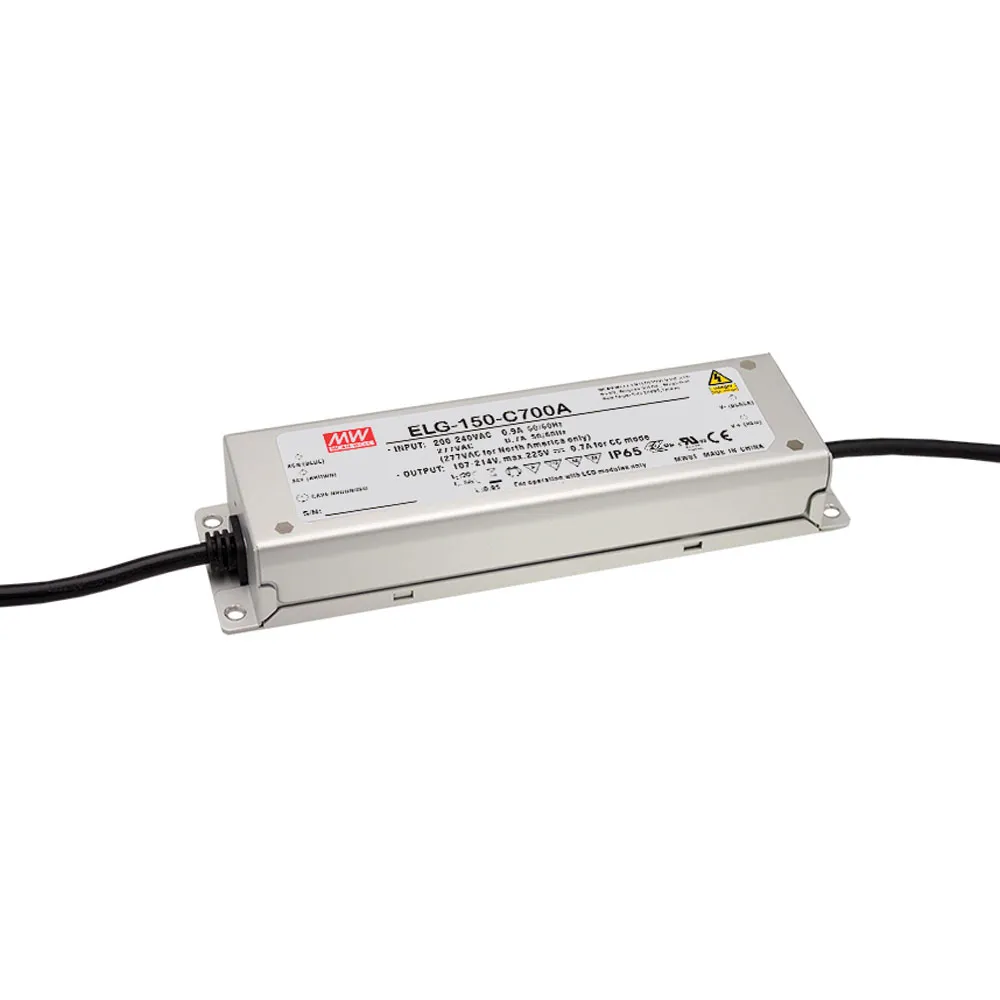

150W Single Output Switching LED Power Supply
54 - 107 Volts @ 1400 milliamps (mA)Features:
- 100-305 VAC input range
- Built-in active PFC function
- No load power consumption < 0.5W
- High efficiency up to 92%
- Fanless design, cooling by free air convection
- IP67, IP65 design for indoor or outdoor installations
- Output current adjustable through output cable or internal potentiometer
- Built-in 3 in 1 dimming function for B-type (0-10VDC or 10V PWM signal or resistance)
- Protections: Short circuit, overload, over voltage, over temperature
- Suitable for dry, damp, wet locations
- 5 year warranty
Applications
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED greenhouse lighting
Product Identification
Manufacturer Series:ELG-150-C
Product Type:Auto Switching SMPS
Compliance
Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.41 in.
Width:2.48 in.
Length:8.62 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:0.9 A
Output
Number of Outputs:1
Output Current (Channel 1):1.4 A
Output Voltage (Channel 1):54 VDC to 107 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Current:1.40 A
Output Range:54 VDC to 107 VDC
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:91%
Power Rating:149.8 W
