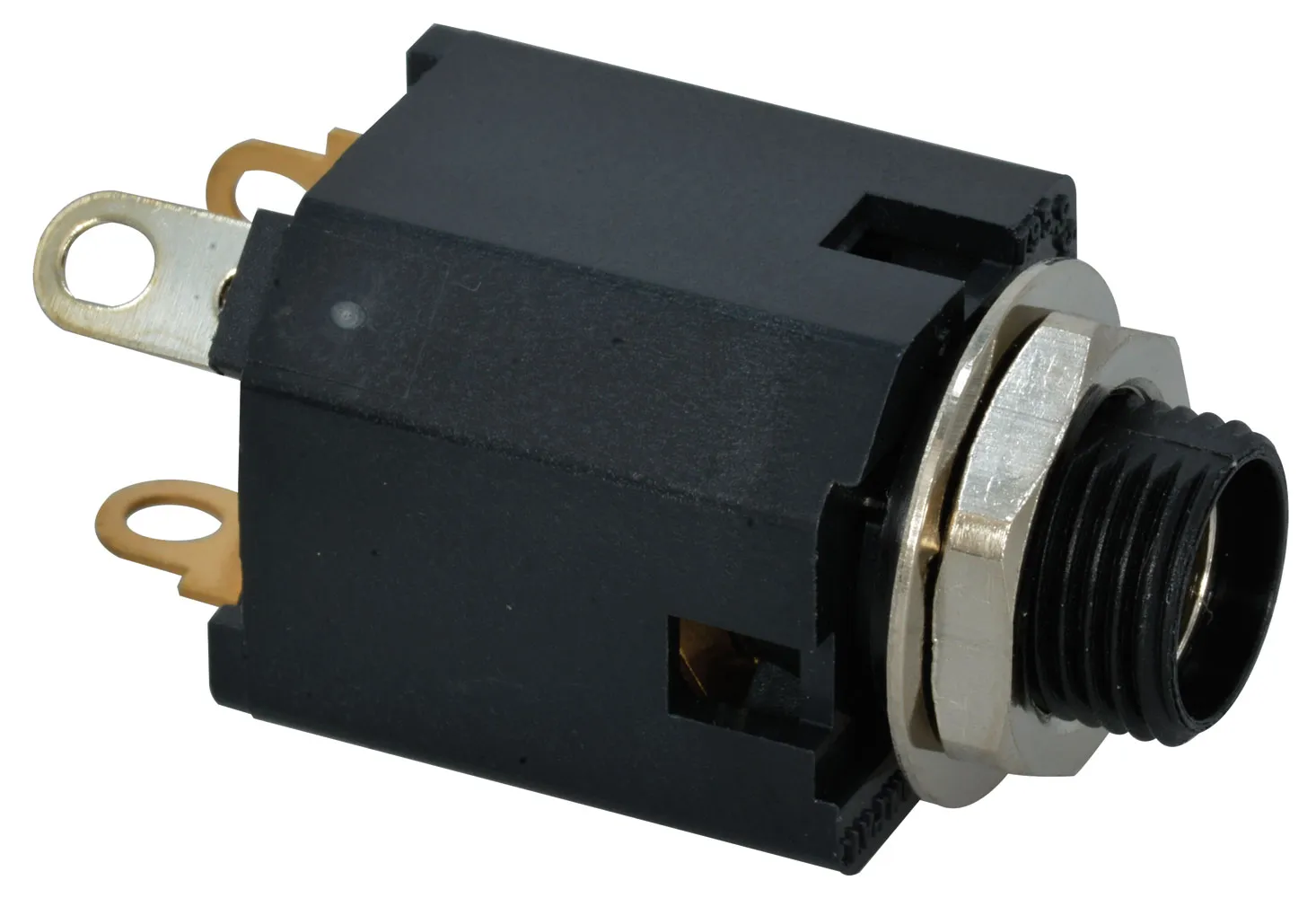

1/4" Panel Mount Stereo Audio Phone Jack
Features
- 3 Contact TRS, tip, ring, sleeve open contact
- Audio connector
- Solder jack
- 3-terminal
- #3/8-32 Insulated Bushing
- Thermoplastic Bushing
Product Identification
Product Type:1/4", Stereo
Dimensions & Appearance
Color:Black
Dimensions:15.7L x 15.7W x 18.9H (mm)
Mounting:Panel Mount
Body Orientation:Straight
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:65°C
Features
Number of Contacts:3
Contact Material:Copper Alloy
Termination Method:Solder Lug
Contact Plating:Nickel
Gender:Jack
Housing Material:Polyethylene
Voltage Rating:25 VDC
Current Rating:1 A
