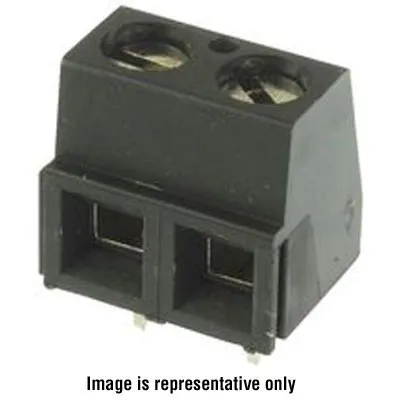

0.2" pitch 2 position Terminal Block

Features

  • Terminal Spacing: 0.2"/5.08mm
  • Top Screw
  • Rows: 1
  • Contacts: 2
  • Mounti

    • Product Identification

    Manufacturer Series:039880

    Dimensions & Appearance

    Depth:8.2 mm
    Height:10 mm
    Length:5.62 mm
    Mounting:Through Hole
    Body Orientation:Straight

    Operating conditions

    Maximum Operating Temperature:105°C

    Features

    Number of Positions:2
    Number of Rows:1
    Housing Color:Black
    Bottom Termination:PC Pins
    Contact Material:Copper
    Pitch:0.200 in., 5.08 mm
    Housing Material:Polyamide
    Contact Plating:Tin
    Description:Eurostyle Block
    Wire Gauge (AWG):16-30
    Voltage Rating:300 VAC
    Current Rating:13.5 A
    ,
