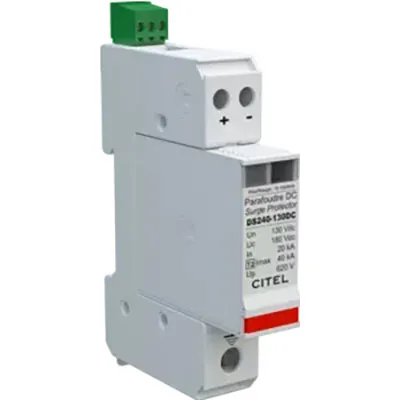

130 VDC DIN Rail Network Surge Protection Device 40kA Surge

Specifications

  • Max Load Current (IL): 20 A
  • Total Maximum discharge current: Imax Total: 80 kA
  • Protection mode(s): Common mode/Differential mode
  • Power SPD Type: UL1449 TYPE 4CA
  • Volts (V): 130
  • Phase (PH): n/a
  • Amps (A): n/a
  • Ambient Min (C): -35
  • Ambient Max (C): +60
  • Modes: DC+-G, DC-G
  • MLV (V): 1720 / 1320 / 1280
  • MCOV (V): 180 / 180 / 180
  • IN (kA): 20
  • SCCR (kA): n/a
  • IMAX (kA): 40
  • Outdoor Application: No
  • Technology: MOV
  • Network Configuration: 2W+G
  • Connection Method: Screw Terminal (8-12 AWG)
  • Mounting: DIN Rail
  • Material: Thermoplastic UL94-V0
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • Fail-Safe Behavior: Disconnection via fuse-link
  • Real-Time Diagnostics: Visual indicator and remote contacts
  • Dimensions: See diagram (mm)
  • Weight: 0.30 lbs.

Compliance

Agency Approvals:UL, EAC, UL1449 4CA

Dimensions & Appearance

Mounting Type:DIN Rail
Depth:67 mm
Width:18 mm
Height:90 mm

Input

Input Voltage:130 V

Features

Failsafe Protection:Yes
Short Circuit Protection:N/A
IP Rating:IP20
Technology:MOV
Protection Style:Common Mode, Differential Mode, DC+-G, DC--G
Surge Current Rating:80 kA
Maximum Clamping Voltage:180 /180 / 180
Application:130V DC Power Network
Voltage Rating:180 VAC
Current Rating:N/A
,
