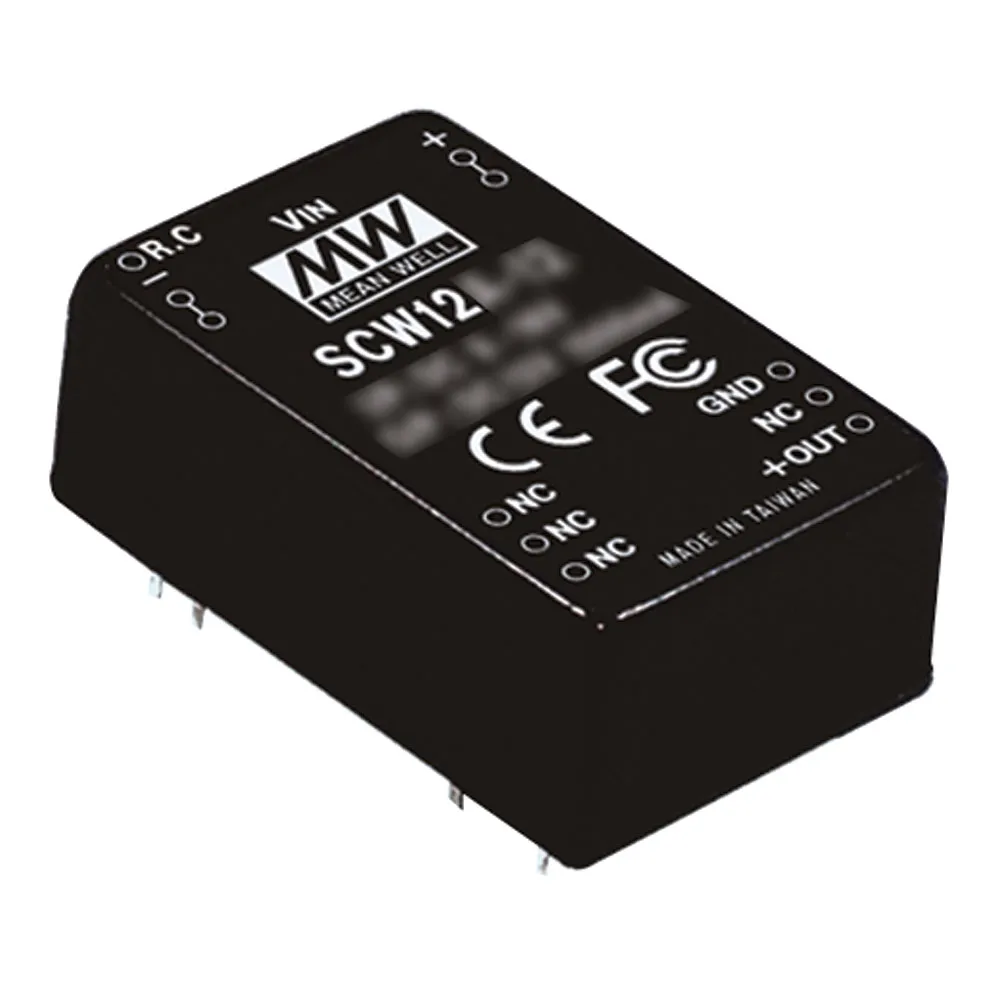

12W Encapsulated DC-to-DC Converter

Output: 5 Volts @ 2.4 Amps

Features:

  • Input range: 9-18VDC
  • Number of pins: 9
  • Line Regulation: ±0.5%
  • Load Regulation: ±0.5%
  • Ripple and Noise: 50mVp-p
  • Short-circuit/overload protection
  • 1500VDC I/O isolation
  • 5-sided shielded metal case
  • Built-in EMI filter and remote ON/OFF control
  • Size: 1.25"L x 0.8"W x 0.48"H

    • Product Identification

    Type:Step Down
    Product Type:DC-DC Regulated Single Output Converter SMPS
    Manufacturer Series:SCW12

    Dimensions & Appearance

    Height:0.48 in.
    Width:0.80 in.
    Length:1.25 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:71°C

    Input

    Input Voltage Range:9 VDC to 18 VDC
    Input Voltage:12 VDC

    Output

    Number of Outputs:1
    Output Voltage:5 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:2.40 A

    Features

    Pins:9
    Power Rating:12 W
    ,
