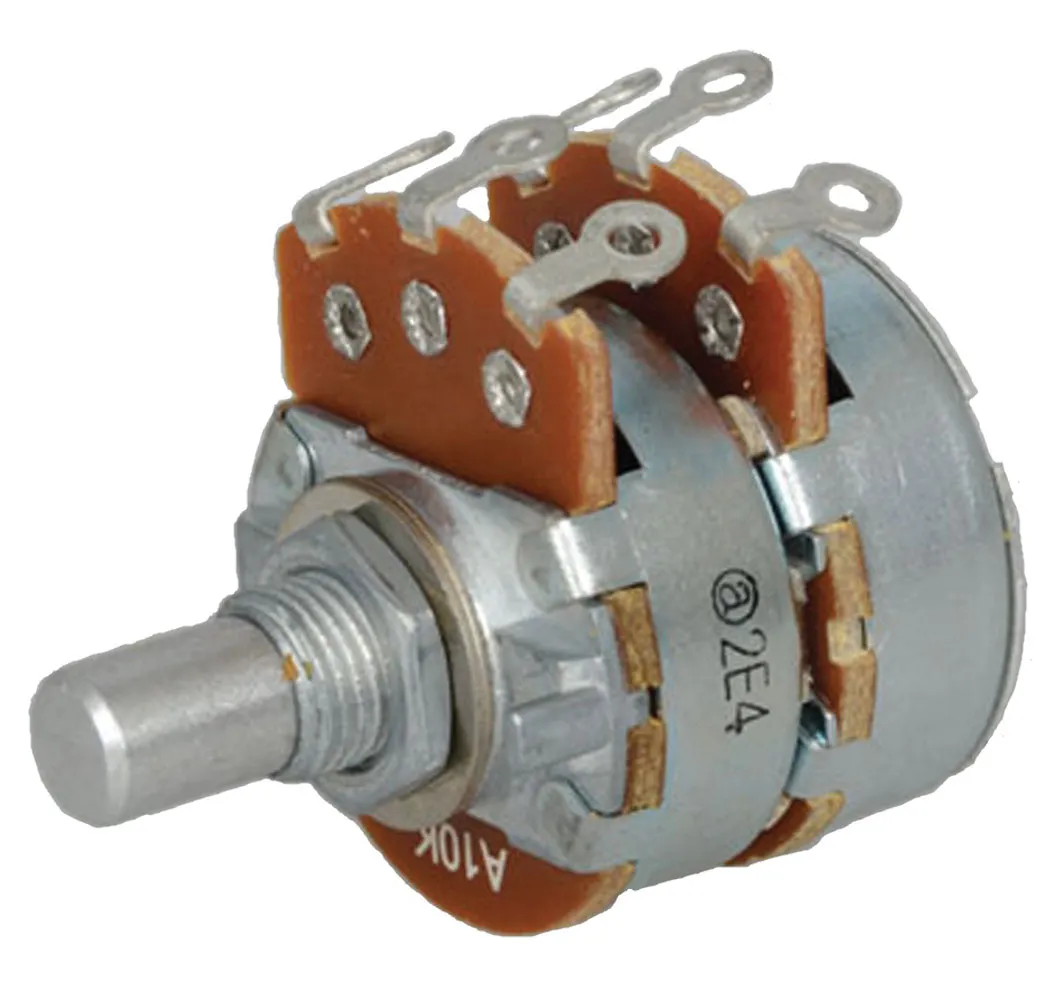

1/2W 24mm 1M Ohm Dual Linear Taper Potentiometer

Features

  • Shaft diameter: 0.250 in
  • Shaft length: 0.590" (15 mm)
  • Shaft type: Round
  • Rated Voltage: 500V
  • Rotation angle: 300° (±5%)
  • Withstanding Voltage for 1 minute: 500VAC
  • Termination Style: Solder Lug
  • Tolerance: 20%

Product Identification

Manufacturer Series:RV24BF

Dimensions & Appearance

Mounting:Panel Mount
Shaft Diameter:0.250 in., 6.35 mm
Shaft Length:0.590 in.
Shaft Style:Round
Body Diameter:24 mm

Features

Number of Turns:1
Resistive Element Material:Carbon
Taper:Linear
Ganging Number:2
Resistance (Ohm):1000000
Resistance:1 MOhm
Tolerance:20%
Power Rating:0.5 W
Termination Style:Solder, Panel Mount
Voltage Rating:500 V
,
