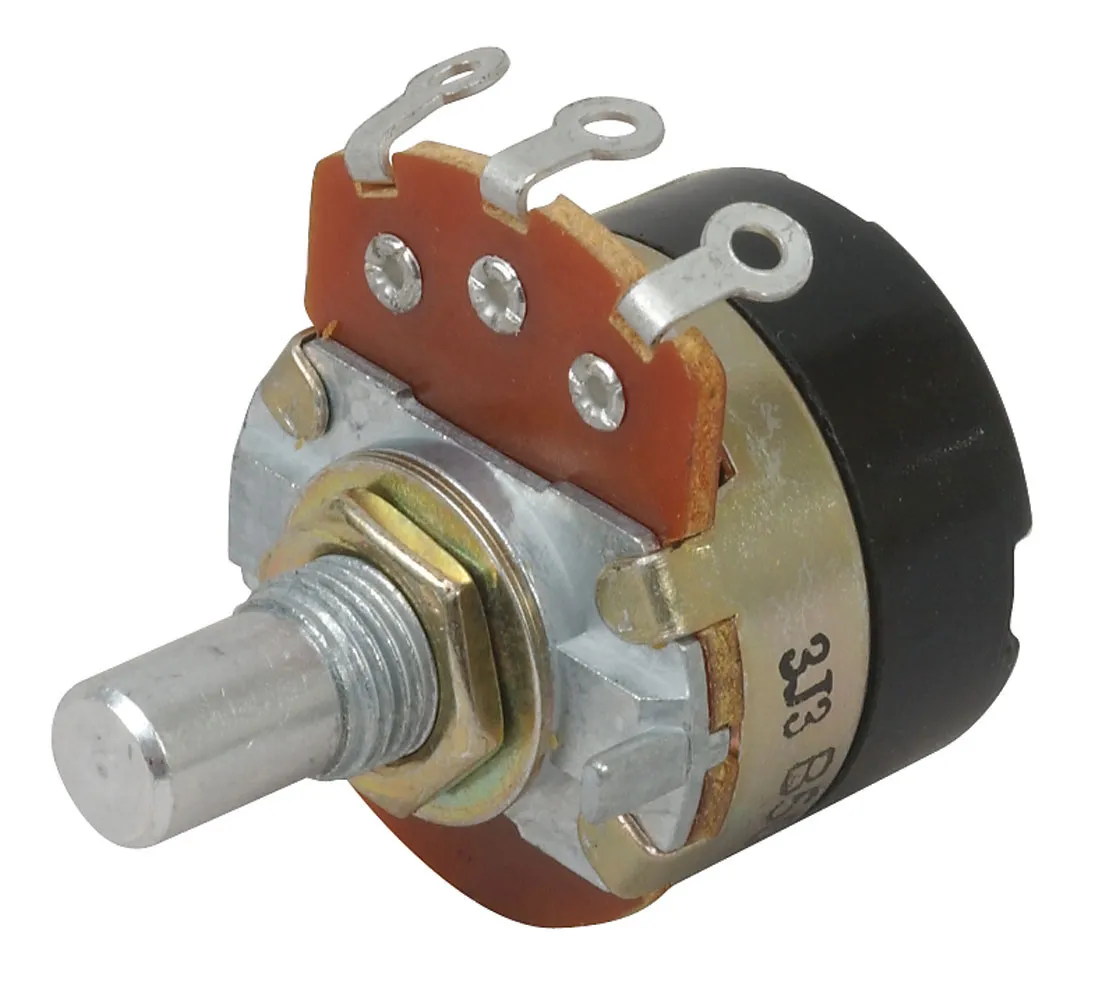

1/2W 24mm 2.5k Ohm Linear Taper Potentiometer with SPST Switch

Features

  • Shaft diameter: 0.250 in
  • Shaft length 0.59 in
  • Voltage Rating: 500V
  • Rotation angle: 300° (±5%)
  • Switch Rating: 125VAC @ 1A
  • Termination Style: Solder Lug
  • Tolerance: 20%

Product Identification

Manufacturer Series:RV24A01F

Dimensions & Appearance

Shaft Diameter:0.245 in., 6.22 mm
Shaft Length:0.590 in.
Shaft Style:Round
Mounting:Panel Mount
Body Diameter:24 mm

Features

Ganging Number:1
Number of Turns:1
Resistive Element Material:Carbon
Taper:Linear
Tolerance:20%
Resistance:2.5 KOhm
Power Rating:0.5 W
Resistance (Ohm):2500
Termination Style:Solder, Panel Mount
Voltage Rating:500 V
,
