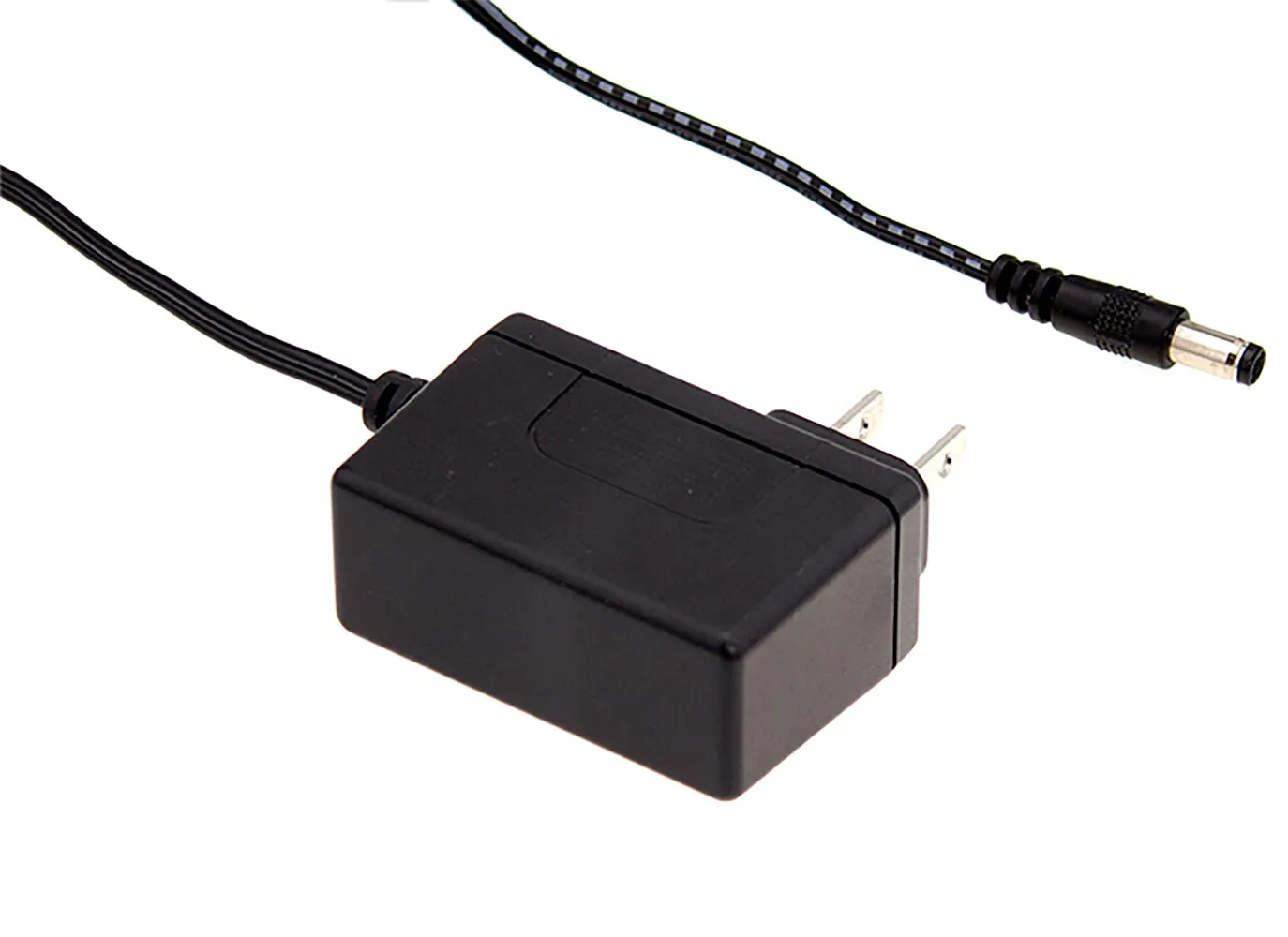

12W 12VDC 1A Reliable Green Medical Wall Adapter with 2.1mm Plug
12 Volts DC @ 1 Amps (1000 mA)Features
- Universal AC input / Full range (80-264 VAC @ 47-63 Hz)
- Output connector: 2.1mm x 5.5mm center positive cylindrical female barrel plug
- Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1/ES60601-1-11
- Extremely low leakage current
- No load power consumption <0.075W
- Energy efficiency Level VI
- Wide working temperature range: -20°C to +70°C
- Class II power (no Earth pin)
- Protections: Short circuit, overload and over voltage
- Fully enclosed plastic case
- 3 year warranty
Applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
- Sleep apnea devices
Product Identification
Product Type:Switching SMPS
Manufacturer Series:GSM12U
Compliance
Agency Approvals:UL, CUL, FCC, EAC
Dimensions & Appearance
Color:Black
Style:Slimline Wall Mount
Width:1.08 in.
Height:1.8 in.
Length:2.45 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Connector:NEMA 1-15P
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:0.4 A
Output
Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Cord Length:6 ft.
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current:1 A
Features
Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Efficiency:82.5%
Power Rating:15 W
