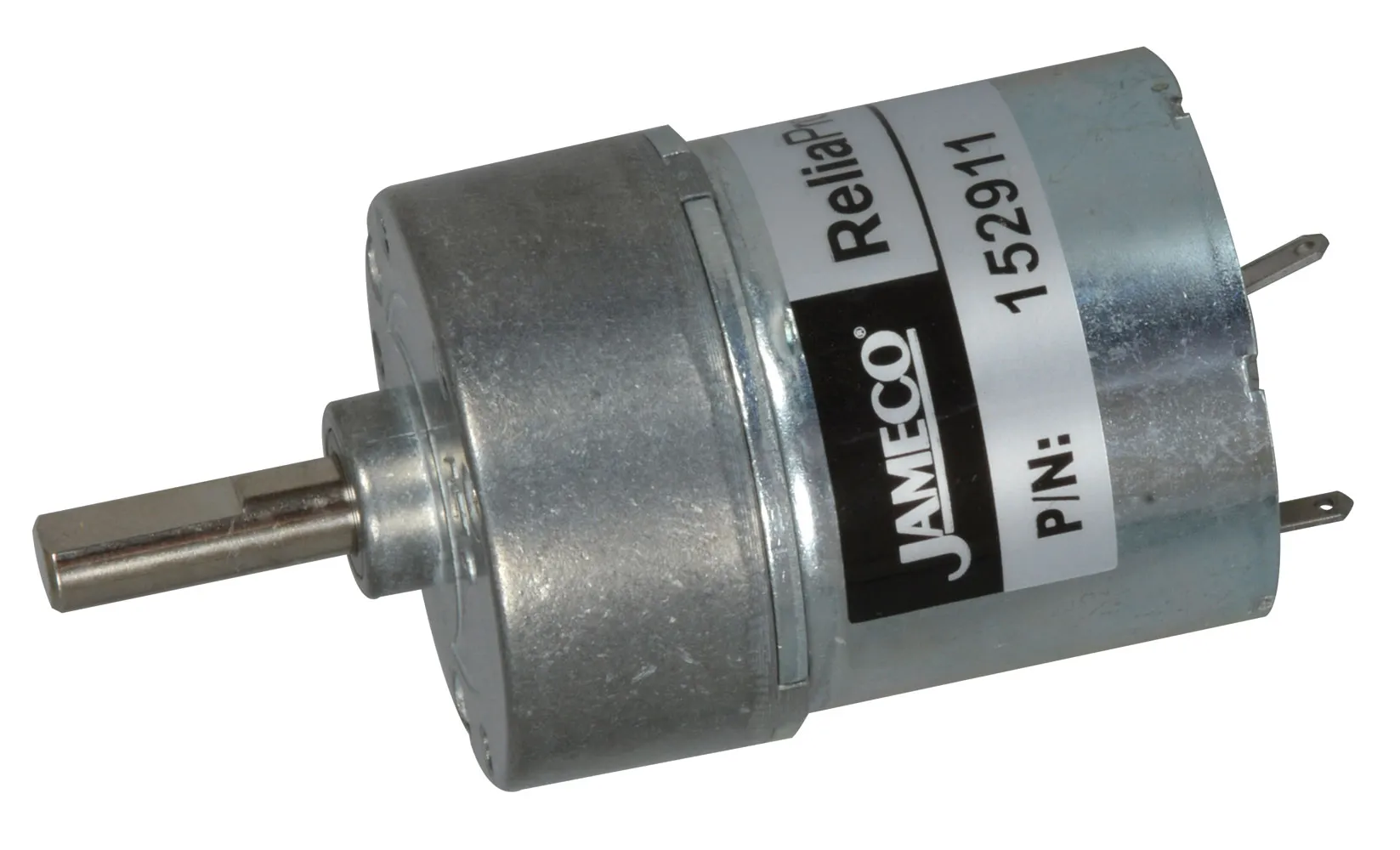

12VDC Plastic Reversible Gear Head Motor

GH35GM Series

Features:
  • Rated voltage: 12VDC
  • Operating range: 4.5 to 12VDC
  • Current @ maximum efficiency: 0.206A
  • Speed @ maximum efficiency: 40 RPM
  • Torque @ maximum efficiency: 2370 g-cm
  • Gear ratio: 100:1
  • Gear case size: 1.4" diameter x 0.6" length
  • Motor size: 1.3" diameter x 1.2" length
  • Shaft size: 0.24" diameter x 0.9" length
  • Solder-type terminals
  • Dielectric strength: 300VDC
  • Insulation resistance: 10MΩ
  • Oil bearing design for long service life
  • Screw Mount Dimensions: M3

    • Product Identification

    Additional Feature:Metal Gears

    Compliance

    RoHS Status:ROHS Compliant

    Dimensions & Appearance

    Shaft Style:D
    Shaft Diameter:0.24 in.
    Shaft Length:0.9 in.

    Input

    Input Voltage Range:4.5 VDC to 12 VDC

    Features

    Motor Speed @ Max. Efficiency (RPM):40
    Gear Case Size (Diameter x Length) (inch):1.40 x 0.60
    Current @ Max. Efficiency (mA):172
    Gear Ratio:100:1
    Motor Size (Diameter x Length) (inch):1.3 x 1.2
    Terminal Type:Solder Tabs
    Torque @ Max. Efficiency (g-cm):2370
    Voltage Rating:12 VDC
    ,
