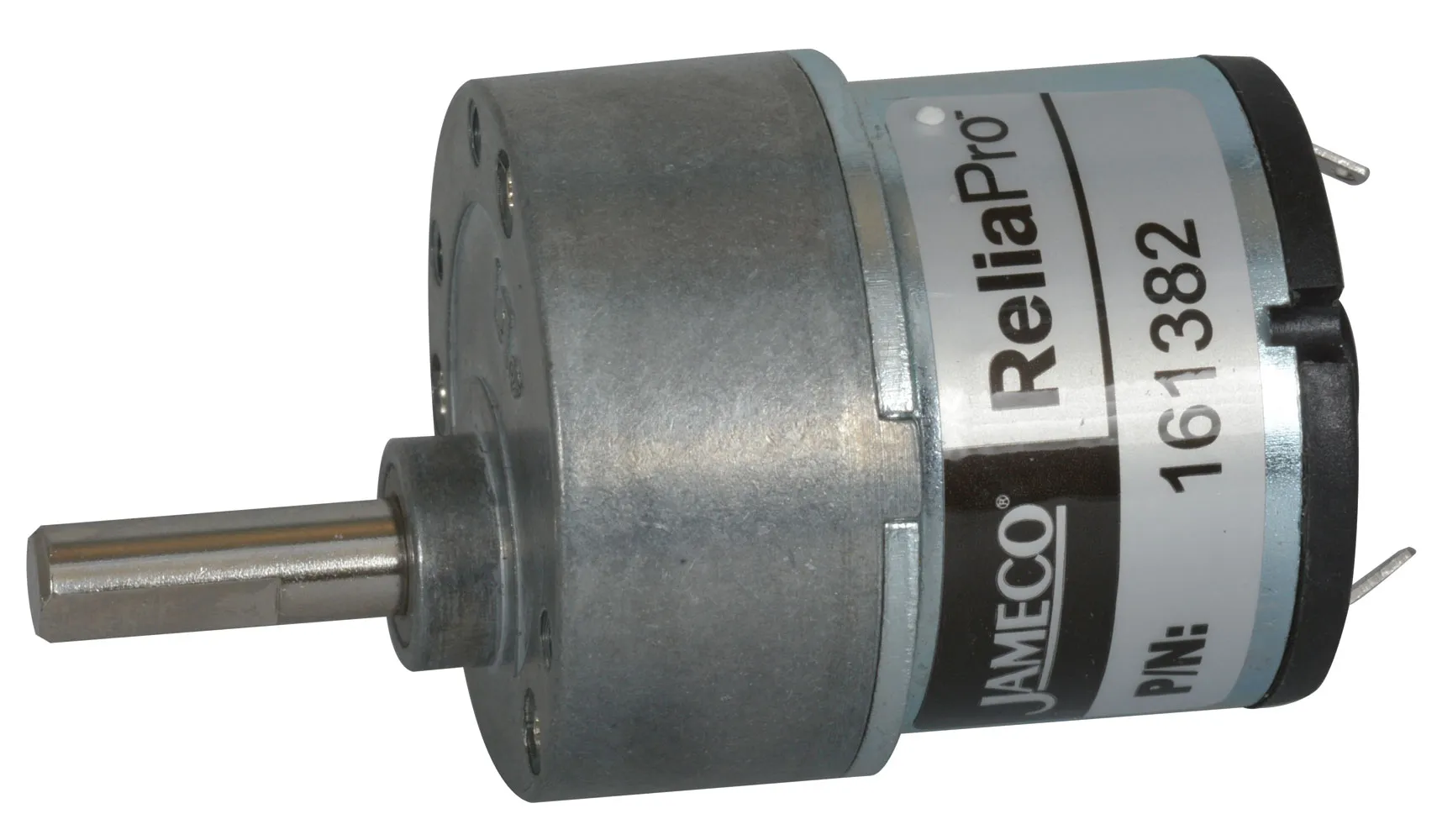

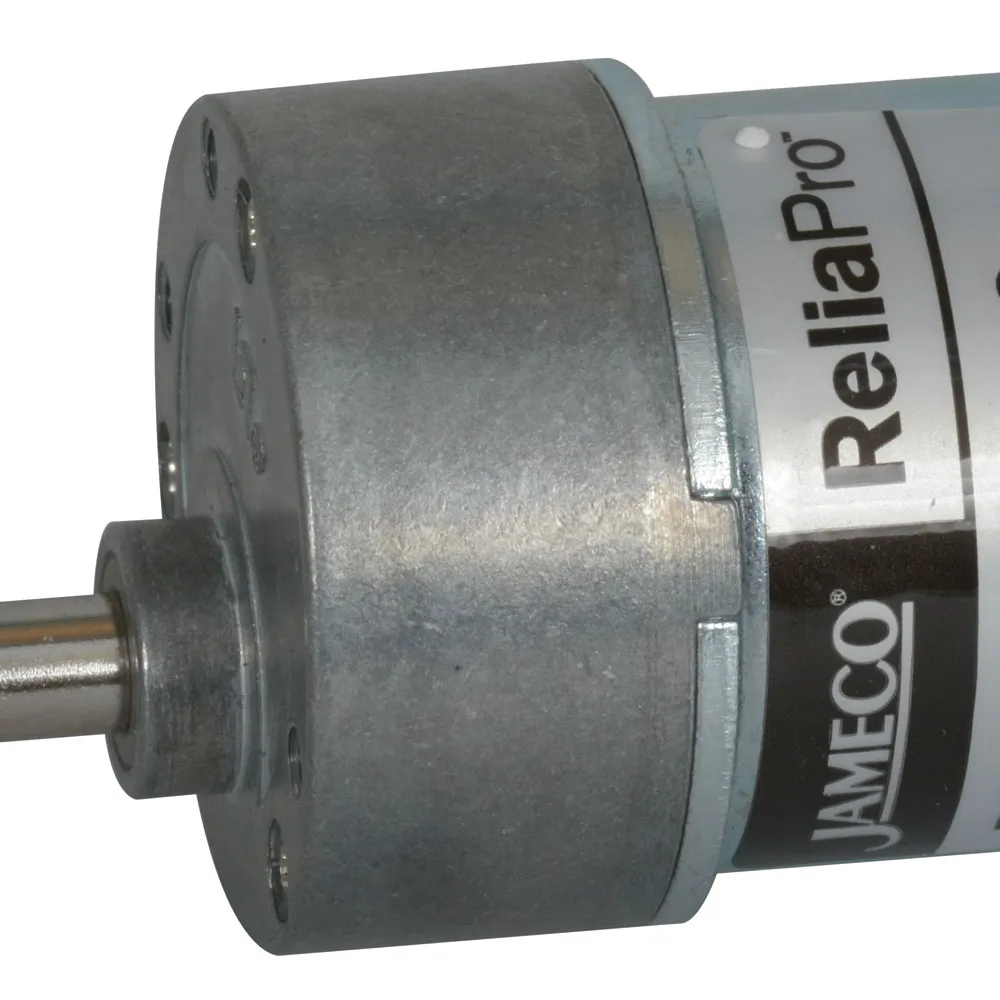

12VDC Plastic Reversible Gear Head Motor

GH35GM Series

Features:
  • Rated voltage: 12VDC
  • Operating range: 4.5 to 12VDC
  • Current @ maximum efficiency: 0.386A
  • Speed @ maximum efficiency: 160RPM
  • Torque @ maximum efficiency: 850 g-cm
  • Gear ratio: 30:1
  • Gear case size: 1.4" diameter x 0.6" length
  • Motor size: 1.3" diameter x 1.0" length
  • Shaft size: 0.23" diameter x 0.7" length
  • Solder-type terminals
  • Dielectric strength: 300VDC
  • Insulation resistance: 10MΩ
  • Oil bearing design for long service life
  • Screw Mount Dimensions: M3

    • Product Identification

    Additional Feature:Plastic Gears

    Dimensions & Appearance

    Shaft Diameter:0.23 in.
    Shaft Length:0.9 in.
    Shaft Style:D

    Input

    Input Voltage Range:4.5 VDC to 12 VDC

    Features

    Gear Ratio:30:1
    Motor Speed @ Max. Efficiency (RPM):145
    Gear Case Size (Diameter x Length) (inch):1.40 x 0.70
    Current @ Max. Efficiency (mA):293
    Terminal Type:Solder Tabs
    Voltage Rating:12 VDC
    Torque @ Max. Efficiency (g-cm):850
    Motor Size (Diameter x Length) (inch):1.3 x 1.0
    ,
