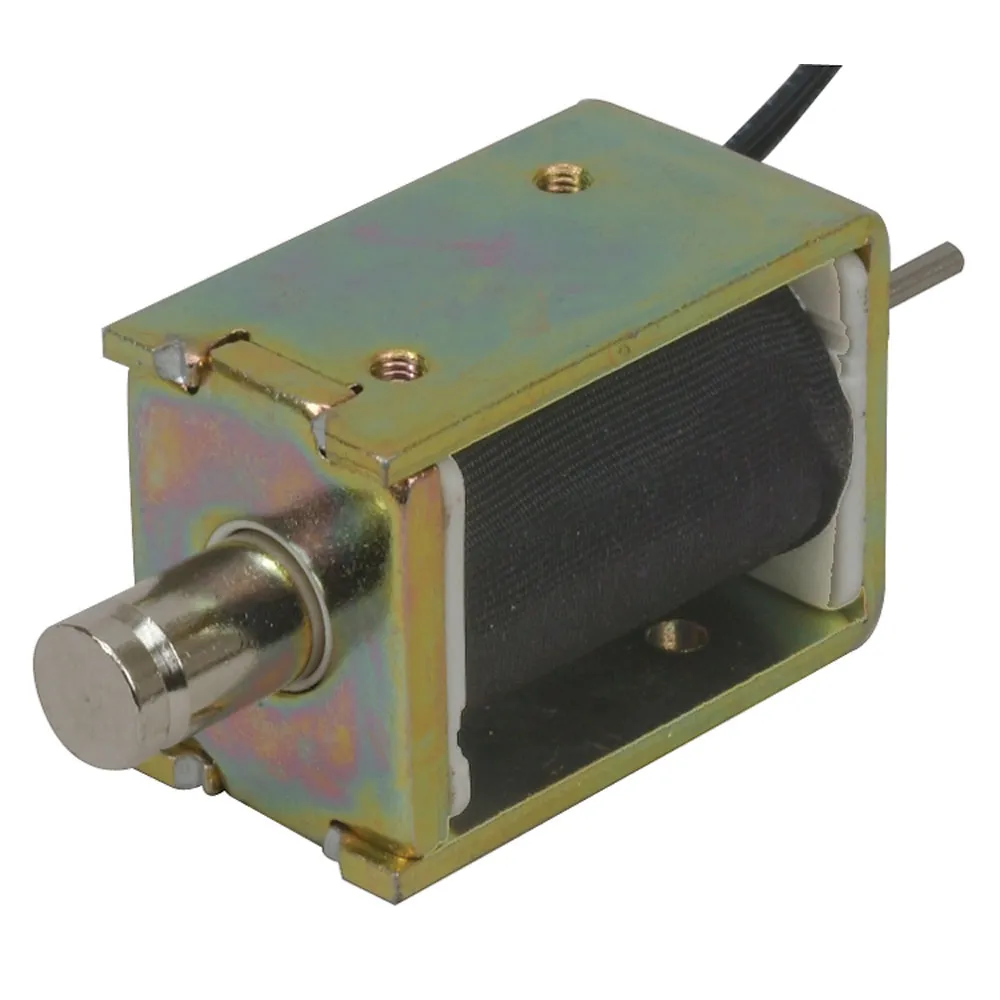

12VDC Open Frame Dual-Shaft Push Solenoid

Features

  • Coil Resistance: 36Ω
  • Power Consumption: 4.0W
  • Holding Force: 1.10 lbs. @ 20°C
  • Stroke: 0.24 inches
  • Size: 1.5" x 1.0" x 0.8"
  • Shaft Diameter: 0.08 inches / 0.31 inches
  • Weight: 0.21 lbs.

Product Identification

Product Type:Open Frame-Push

Dimensions & Appearance

Weight:0.21 lbs.
Diameter:1 in.
Length:1.5 in.
Shaft Diameter:0.31 in.

Features

Holding Force (lbs.@200C):1.1
Stroke:0.24
Coil Resistance:36 Ohm
Voltage Rating:12 VDC
Power Rating:4 W
,
