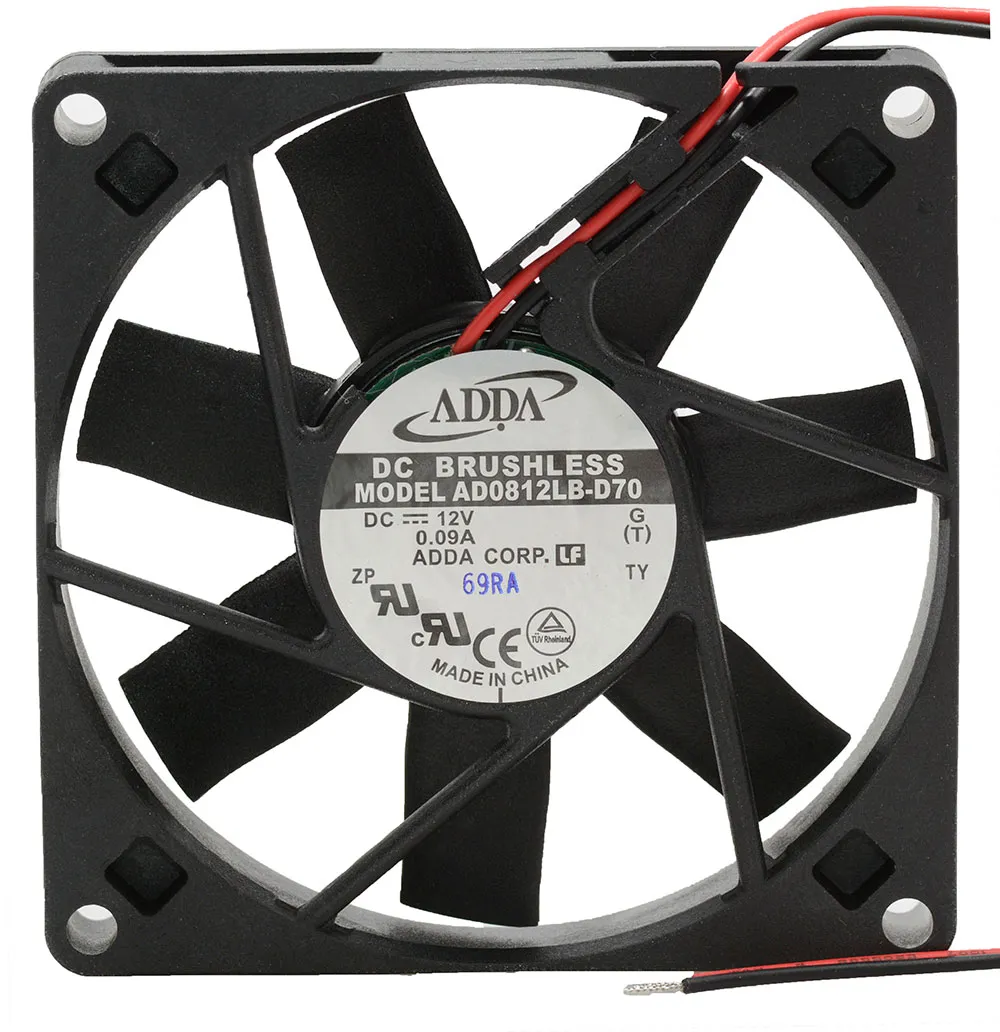

12VDC Brushless Fan 80x80x15


Features:

  • Ball bearing
  • Rated voltage: 12VDC
  • Current: 90mA
  • Air flow: 20 CFM
  • Noise: 19.6 dBA
  • Size: 80 x 80 x 25mm
  • Connector Leads: 12" length
  • Agency approvals: UL/CSA/TUV/CE

    • Product Identification

    Product Type:DC Fan
    Manufacturer Series:ValuePro

    Compliance

    RoHS Status:ROHS Compliant
    Compliance:Compliance Docs
    Agency Approvals: CE, CSA, TUV, UL

    Dimensions & Appearance

    Depth:15 mm
    Height:80 mm
    Width:80 mm

    Features

    Bearing:Ball
    Speed:2000 rpm
    Voltage Rating:12 VDC
    Power Rating:1.08 W
    Air Flow (CFM):20
    Termination:12" Wires
    Noise (dBA):19.6
    Current Rating:90 mA
    ,
