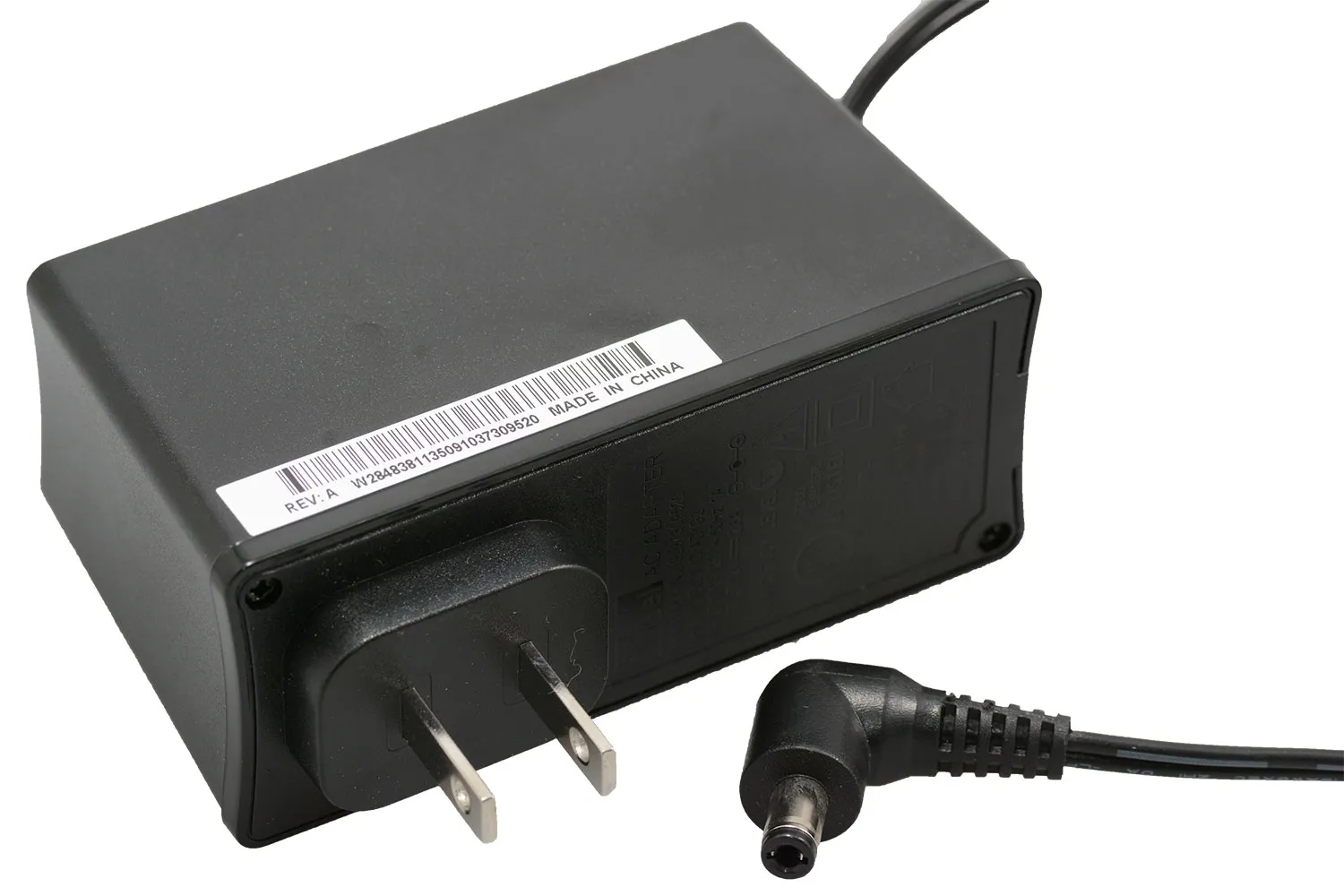

12VDC 2.8A AC-to-DC Switching Wall Adapter 2.5mm Right Angle Plug

12 Volts @ 2.8 Amp

Features

  • Output Voltage: 12 VDC
  • Output Current: 2.8 A
  • Output connector: 2.5mm x 5.5mm female center positive, right angle
  • Input voltage: 100-120VAC @ 60 hZ
  • 2-wire AC input
  • Output cord length: 6 feet
  • Color: Black
  • 1-year warranty
  • Size: 3.52"L x 1.53"W x 2.40"H
  • Certifications: UL, CUL CEC Level VI

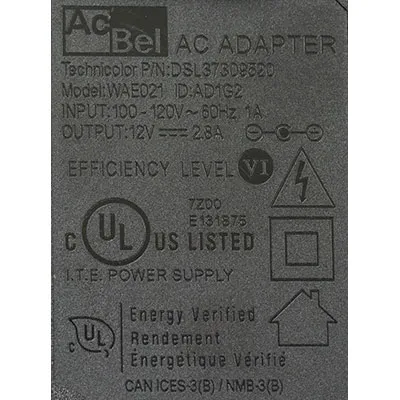

Power Supply Spec Label

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:N/A

Compliance

Agency Approvals: CUL, UL

Dimensions & Appearance

Color:Black
Style:Wall Mount
Depth:2.40 in.
Height:1.53 in.
Length:3.52 in.

Operating conditions

Minimum Operating Temperature:N/A
Maximum Operating Temperature:N/A

Packaging

Packaging:Carton

Input

Input Connector:NEMA 1-15P
Input Frequency:60 Hz
Input Voltage:100 VAC to 120 VAC
Maximum Input Current:1 A

Output

Number of Outputs:1
Output Cord Length:6 ft.
Output Connector Diameters:2.5mm x 5.5mm right angle
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current:2.80 A

Features

Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Minimum Isolation Voltage:N/A
Efficiency:N/A
Power Rating:33.6 W
,
