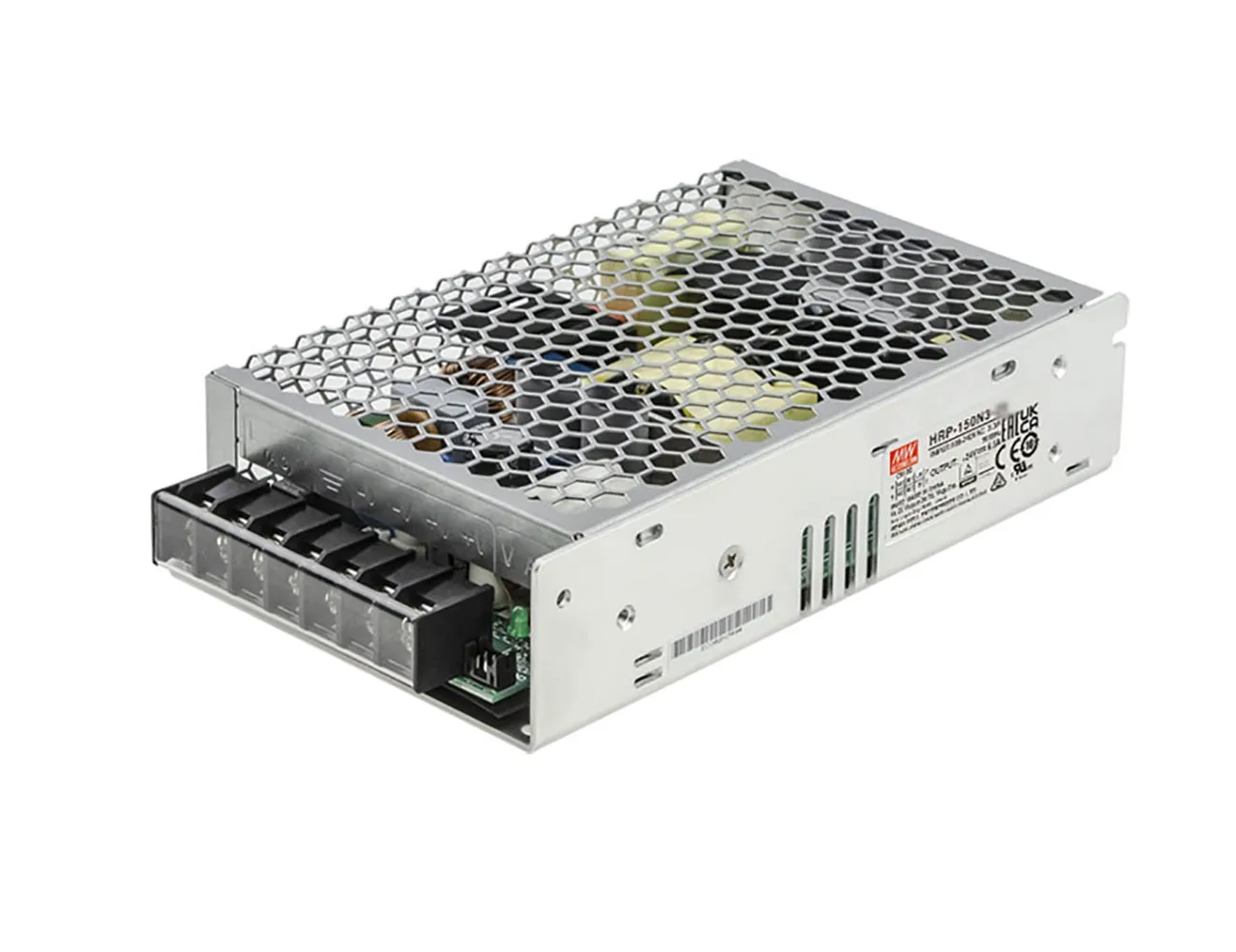

12VDC 13A 156W Single Output Enclosed Ultra High Peak Power Supply with PFC Function
Find out more about MEAN WELL's 350% High Peak Power, Reliable and Durable, Industrial Power Supply.Features
- Universal AC input, Full range
- 300% Peak Power Capability
- Built-in active PFC function, PF>0.95 (0.98 @ 115 VAC)
- Built in constant current limiting circuit
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit, overload, over voltage, over temperature
- Fanless design, cooling by free air convection
- 1U low profile 38mm
- Built-in remote sense function
- Withstand 5G vibration
- Operating altitude up to 5000 meters (see datasheet)
- Output voltage adjustable ±15% (avg.)
- 5 year warranty
Specifications
- Output voltage: 12 VDC
- Output current: 13 A
- Output power: 156 W
- Input voltage: 85 to 264 VAC @ 47 to 63 Hz; 1.7A (115VAC)
- Ripple & Noise (mV p-p): 120
- Load regulation: ±0.5%
- Line regulation: ±0.3%
- Efficiency: 88%
- PFC Function: Yes
- Size: 6.26"L x 3.82"W x 1.5"H (159 mm x 97 mm x 38 mm)
- Case color: Silver
- Agency approvals: UL, CUL, TUV, CB, CE, EN, EAC, AS/NSZ
Applications
- Industrial automation machinery
- Industrial control systems
- Mechanical and electrical equipment
- Diagnostic or biological facilities
- Test or measurement systems
- Telecommunication equipment
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:HRP-150N3
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.5 in.
Width:3.82 in.
Length:6.26 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.7 A
Output
Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):13 A
Output Current:13 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:88%
Power Rating:156 W
