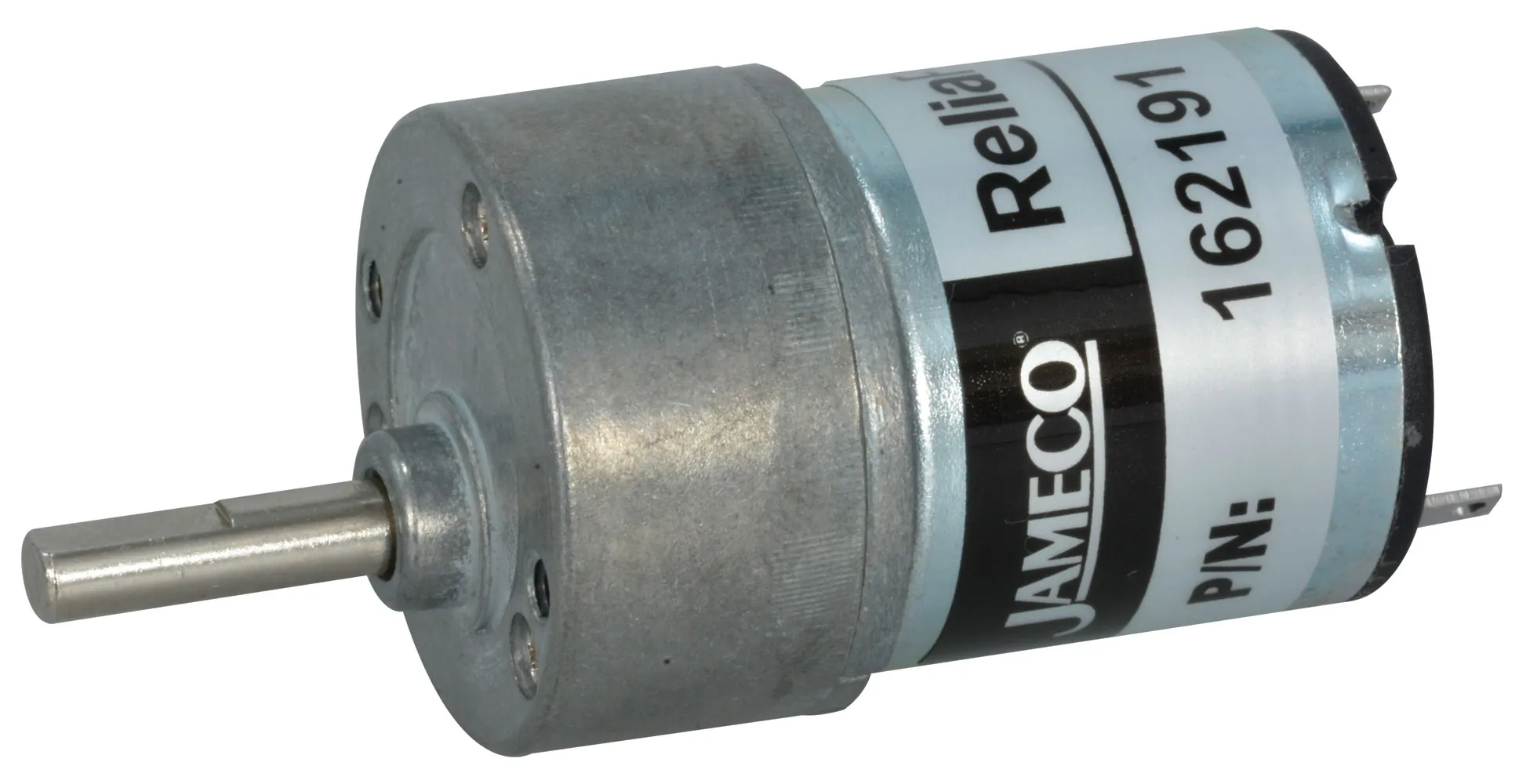

Reversible Gear Head Motor

  • Solder-type terminal
  • High torque construction
  • Dielectric strength: 300VDC
  • Insulation resistance: 10MΩ
  • Oil bearing design for long service life
  • Rated voltage: 12VDC
  • Operating Voltage Range: 4.5 - 12VDC
  • Current: 145mA @ maximum efficiency
  • Speed: 190 RPM @ maximum efficiency
  • Torque: 300 g-cm @ maximum efficiency
  • Gear ratio: 30:1
  • Gear case size: 1.0"Dia. x 0.9"L
  • Motor size: 1.1"Dia. x 0.6"Depth
  • Shaft size: 0.16"Dia. x 0.70"L
  • Screw Mount Dimensions: M2.6

    • Product Identification

    Additional Feature:Plastic Gears

    Dimensions & Appearance

    Shaft Diameter:0.16 in.
    Shaft Length:0.7 in.
    Shaft Style:D

    Input

    Input Voltage Range:4.5 VDC to 12 VDC

    Features

    Gear Case Size (Diameter x Length) (inch):1.10 x 0.60
    Gear Ratio:30:1
    Motor Speed @ Max. Efficiency (RPM):190
    Current @ Max. Efficiency (mA):145
    Terminal Type:Solder Tabs
    Voltage Rating:12 VDC
    Torque @ Max. Efficiency (g-cm):300
    Motor Size (Diameter x Length) (inch):1.0 x 0.9
    ,
