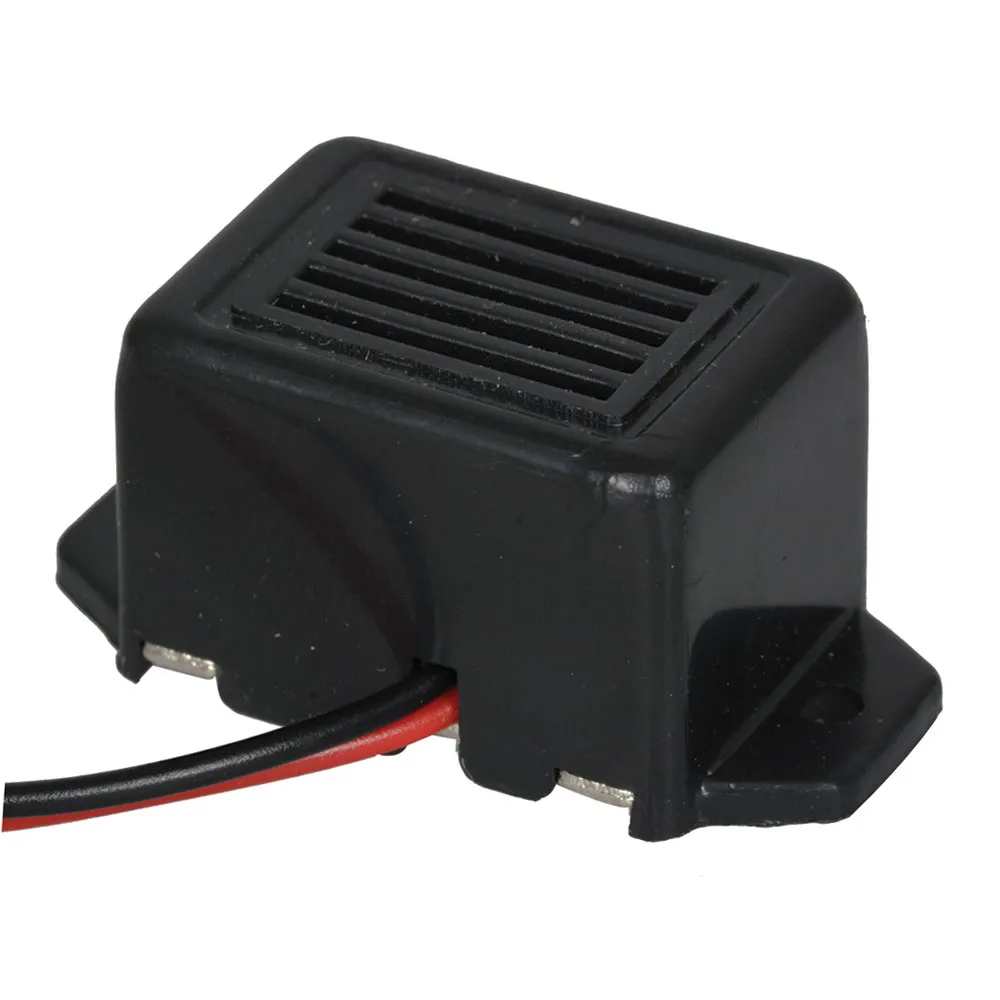

12V DC Single Tone Mechanical Buzzer with 4.7" Wires

Features

  • Buzzer with built-in oscillator
  • Flange mounting
  • ABS case
  • A suitable replacement for 20S1120LF-LA (2173870)

Specifications

  • Tone type: single
  • Operating voltage: 8-15V DC
  • Rated voltage: 12V DC
  • Current consumption: 25 mA
  • Osc. frequency: 300-500Hz
  • Sound pressure: 85 dB
  • Connector type: leads
  • Body color: black
  • Weight: 0.35oz

Dimensions & Appearance

Diameter:0.58 in.
Height:0.92 in.
Size (H" x Dia."):0.92 x 0.58
Mounting:PCB / Panel Mount

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Voltage:12 V

Output

Output:85 dBA

Features

Tone Mode:Single
Technology:Mechanical
Voltage Range (Vp-p):8-15
Frequency:500 Hz
Frequency Range:300 Hz to 500 Hz
Termination Style:Wire Lead
Current Rating:25 mA
,
