12V Dataline Surge Protection Device Hybrid SAD-GDT 8V MCOV 20kA IMAX

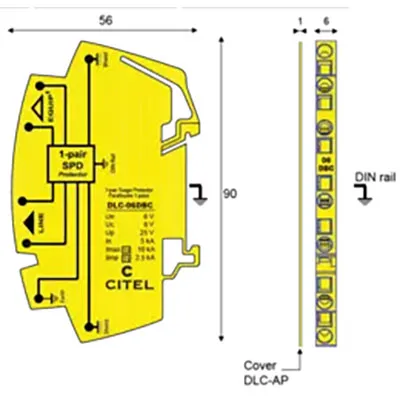

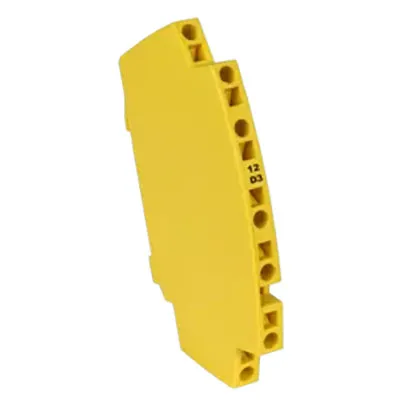

This compact 6mm wide modular DIN rail mounted dataline surge protection device (SPD) with Common Mode and Differential Mode protections is designed for 12 volt dataline circuits. It features Hybrid SAD-GDT technology and offers 10kA IMAX surge current rating and 2.5 kA impulse current per module.

Specifications

• 10 kA Imax (1x 8/20us)
• 2.5 kA Imp (2x 10/350us)
• 5 kA In (10x 8/20us)
• Max. load current (IL): 300 mA
• Impulse current (Iimp): 2.5 kA
• Data SPD Type: UL497B Listed
• Volts: 12 V
• Wires: 2W+SHIELD+GROUND
• Line Current Max: 0.3 A
• Ambient Temperature: -40°C to +85°C
• Residual Voltage: 20 V
• MCOV (V): 8/72/72
• IN (kA): 5 (kA)
• IMAX (kA): 10
• Iimp (kA): 2.5
• Data Speed: (bps): 10/100
• Frequency: (MHz): >3
• Insertion Loss (@ Freq.): (db): < 1
• Capacitance: (pF): < 50
• Technology: Hybrid SAD-GDT
• Network Configuration: 1 Channel (2W+SHIELD+G)
• Connection Method: Screw Terminal (16 to 22 AWG)
• Mounting: DIN Rail
• Material: Thermoplastic UL94-V0
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Certification: UL Listed
• UL Standard: UL497B
• UL Category: QVGQ
• IL File Number: E184939
• Standards: IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993
