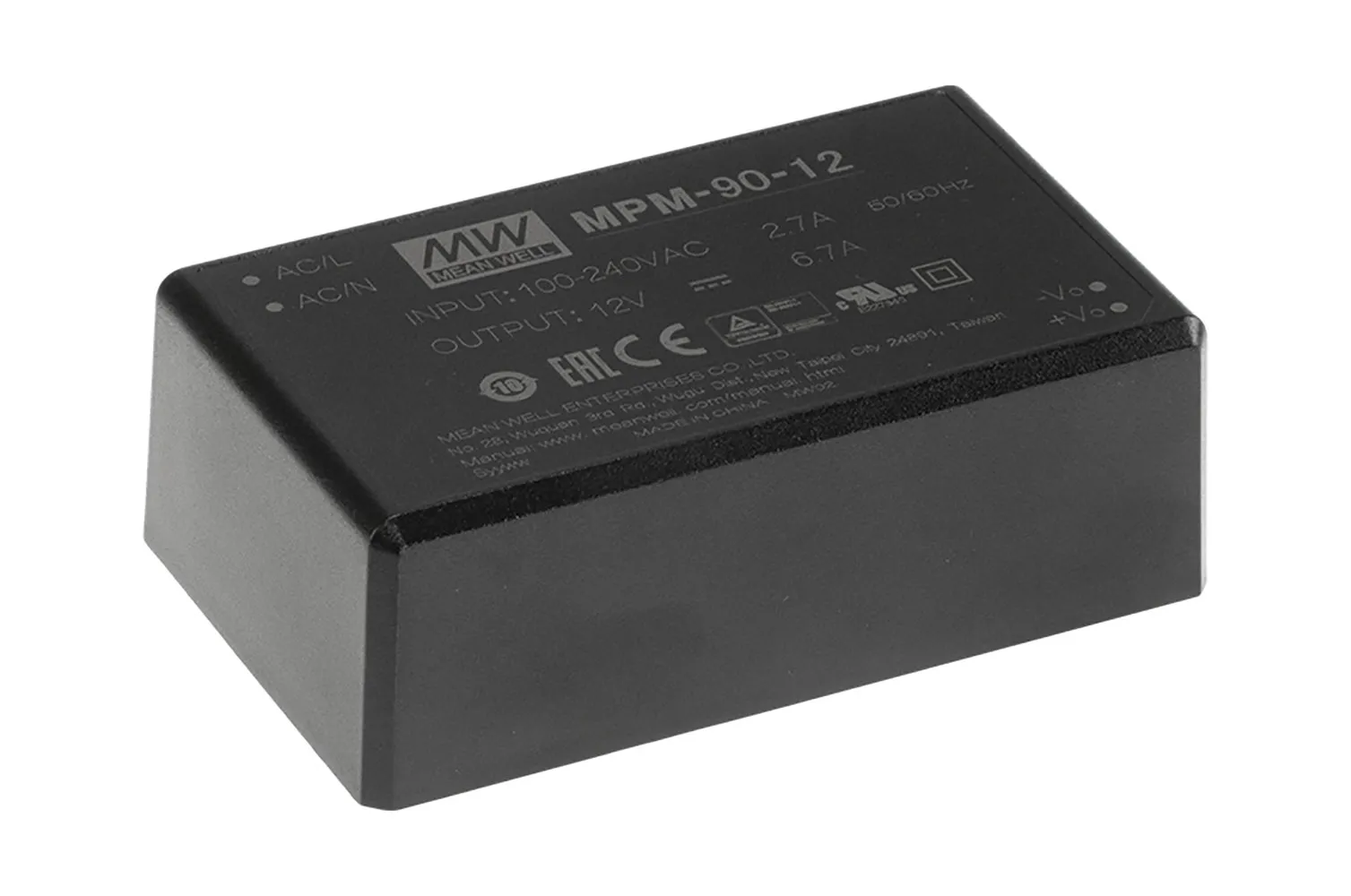

12V 6.7A 80W High Reliability 2xMOPP Encapsulated Green Medical Power Module PCB Mount

Features

  • 3.43" x 2.05" compact size
  • Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF application with appropriate system considerations
  • No load power consumption <0.1W
  • Extremely low leakage current
  • Wide operating temperature range: -30 to +80°C
  • EMI class B without additional components
  • Isolation Class II
  • Protections: Short circuit, overload, over voltage
  • No minimum load required
  • Operating altitude up to 4000 meters
  • 3 year warranty

Specifications

  • Rated Voltage: 12 VDC
  • Rated Current: 6.7 A (convection); 7.37 A (peak, 10 sec.)
  • Rated Power: 80.4 W (convection); 88.4 W (peak, 10 sec.)
  • Input: 80-264 VAC @ 47-63 Hz
  • Efficiency: 92%
  • Agency approvals: UL, CUL, TUV, CB, CE, EN, EAC

Applications

  • Portable medical devices
  • Mobile clinical workstations
  • Medical computer monitor
  • Medical examination instruments

Overview

Product Identification

Product Type:Medical Switching SMPS
Manufacturer Series:MPM-90

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Medical Enclosed
Color:Silver
Height:1.16 in.
Width:2.05 in.
Length:3.42 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.9 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Output Current:6.70 A

Features

PFC Function:No
Minimum Isolation Voltage:4000V
Efficiency:92%
Power Rating:80.4 W
,
