12V 2.5A 30W Interchangeable Medical Wall Adapter

12 Volts @ 2.5 Amps

Specifications

  • Output connector: 2.1mm x 5.5mm center positive female barrel plug
  • Power: 30 watts
  • Ripple: 100 mVp-p
  • Line regulation: ±1%
  • Efficiency: 87%
  • Size: 2.97"L x 1.54"W x 2.21"H

Specifications

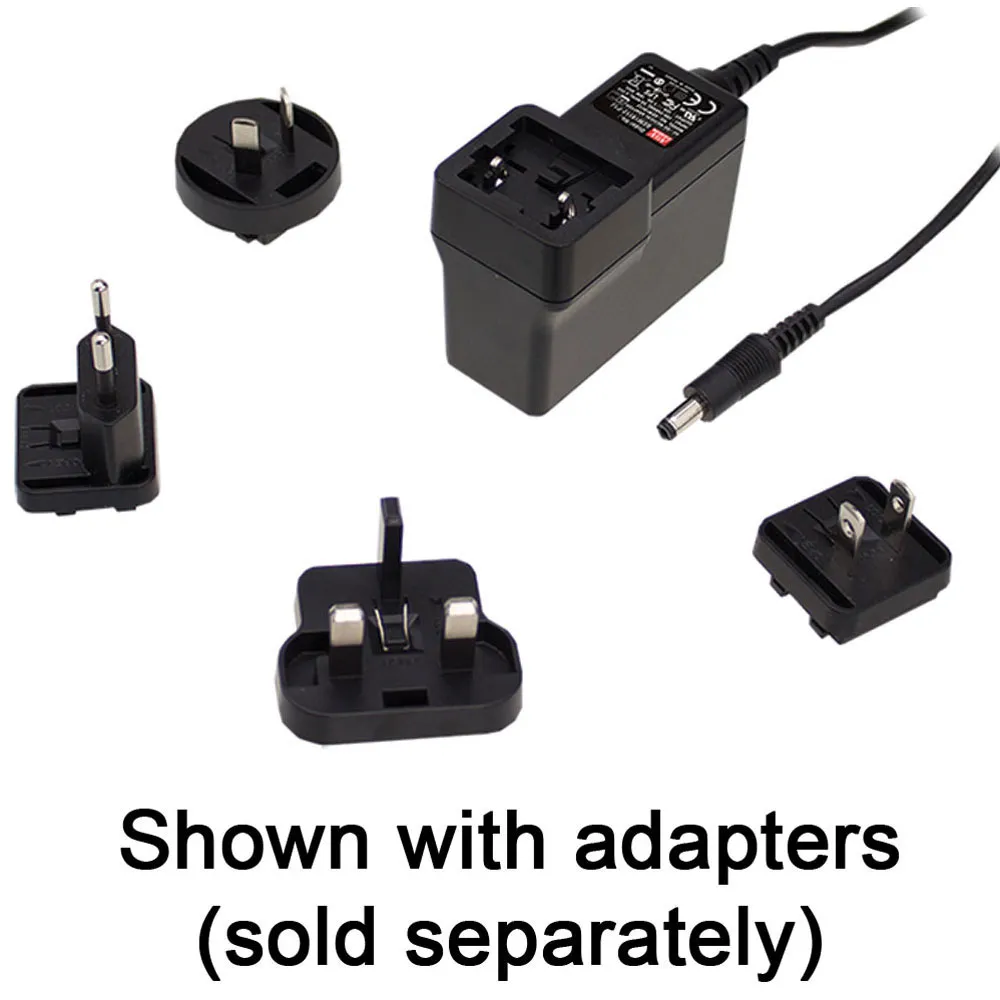

  • Interchangeable AC plugs (AC plugs and plug kits sold separately)
  • Medical safety approved (2 x MOPP) according to AAMI/ANSI ES60601-1/ES60601-1-11, EN60601-1/EN60601-1-11 and IEC60601-1
  • Suitable for BF application with appropriate system consideration
  • Low leakage current <100µA
  • No load power consumption <0.1W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE and EU ErP
  • Class II power (without earth pin)
  • Protections: Short circuit, overload, over voltage
  • Fully enclosed plastic case
  • 100% full load burn-in test
  • 3 year warranty

Applications

  • Blood glucose meters
  • Blood pressure meters
  • Nebulizer
  • Inhaler
  • Portable medical devices
  • Sleep apnea devices

Product Identification

Product Type:Switching SMPS
Manufacturer Series:GEM30I

Compliance

Agency Approvals:UL, CUL, TUV, CB, CE, FCC, EN, EAC

Dimensions & Appearance

Color:Black
Style:Wall Mount
Width:1.54 in.
Height:2.21 in.
Length:2.97 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:AC Plug Clips sold separately
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1 A

Output

Number of Outputs:1
Output Cord Length:3 ft.
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current:2.50 A

Features

Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Efficiency:87%
Power Rating:30 W
,
