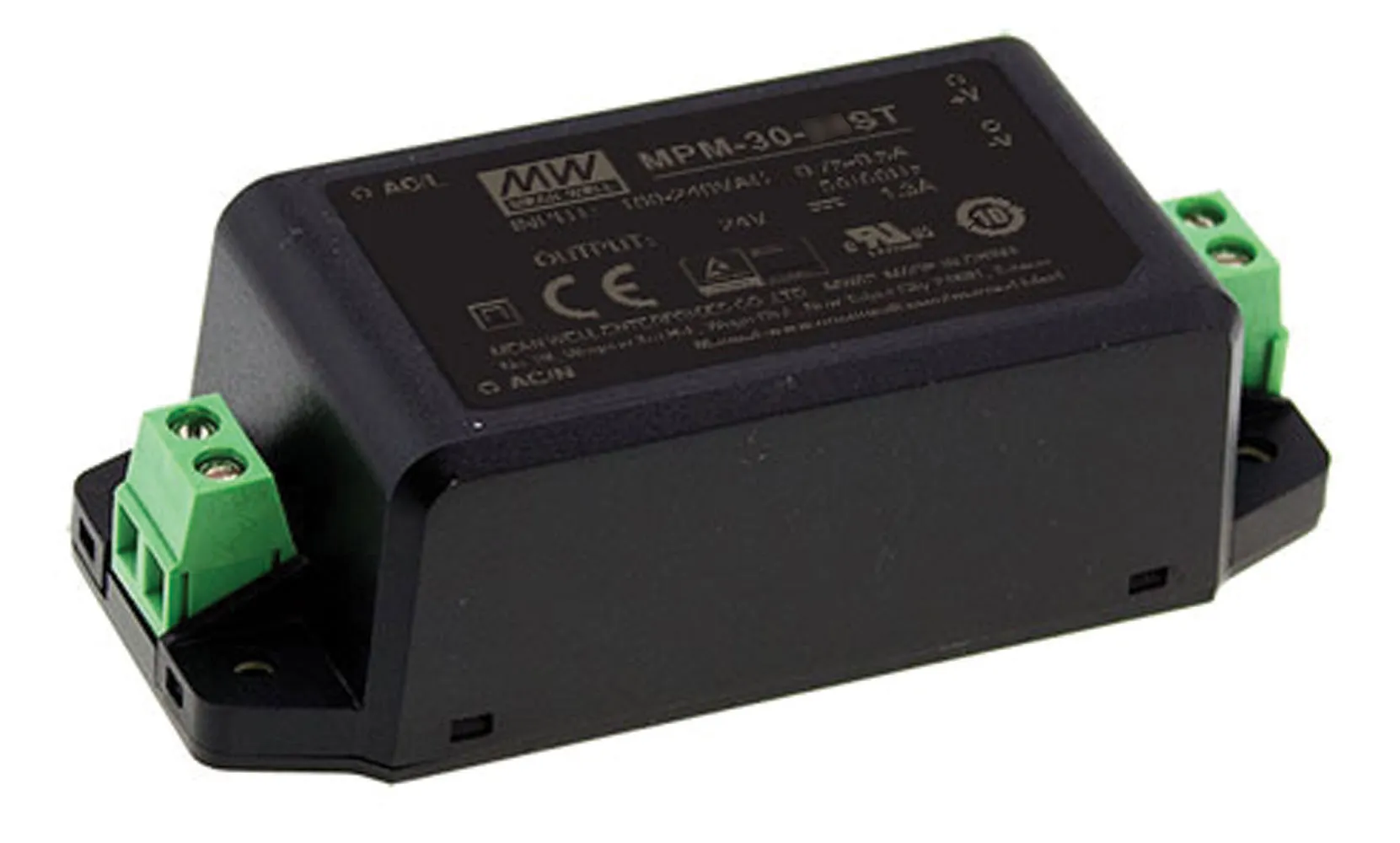

12V 2.5A 30W High Reliability 2xMOPP Encapsulated Green Medical Power Supply Screw Terminal

12 Volts DC @ 2.5 Amps

Features

  • 2.73" x 1.53" compact size
  • Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF application with appropriate system considerations
  • No load power consumption <0.075W
  • Extremely low leakage current
  • Wide operating temperature range: -40 to +85°C
  • EMI class B for class II configuration
  • Protections: Short circuit, overload, over voltage, over temperature
  • No minimum load required
  • 3 year warranty

Specifications

  • Rated power: 30 watts
  • Input: 80-264 VAC @ 47-63 Hz
  • Ripple & noise: 120 mVp-p
  • Line regulation: ± 0.5%
  • Load regulation: ± 0.5%
  • Efficiency: 90%
  • Agency approvals: UL, CUL, TUV, CB, CE

Applications

  • Portable medical devices
  • Mobile clinical workstations
  • Medical computer monitor
  • Medical examination instruments

Overview

Product Identification

Product Type:Medical Switching SMPS
Manufacturer Series:MPM-30

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Color:Black
Style:Medical Encapsulated
Height:0.94 in.
Width:1.53 in.
Length:2.73 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:0.75 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current:2.50 A

Features

PFC Function:No
Minimum Isolation Voltage:4000V
Efficiency:90%
Power Rating:30 W
,
