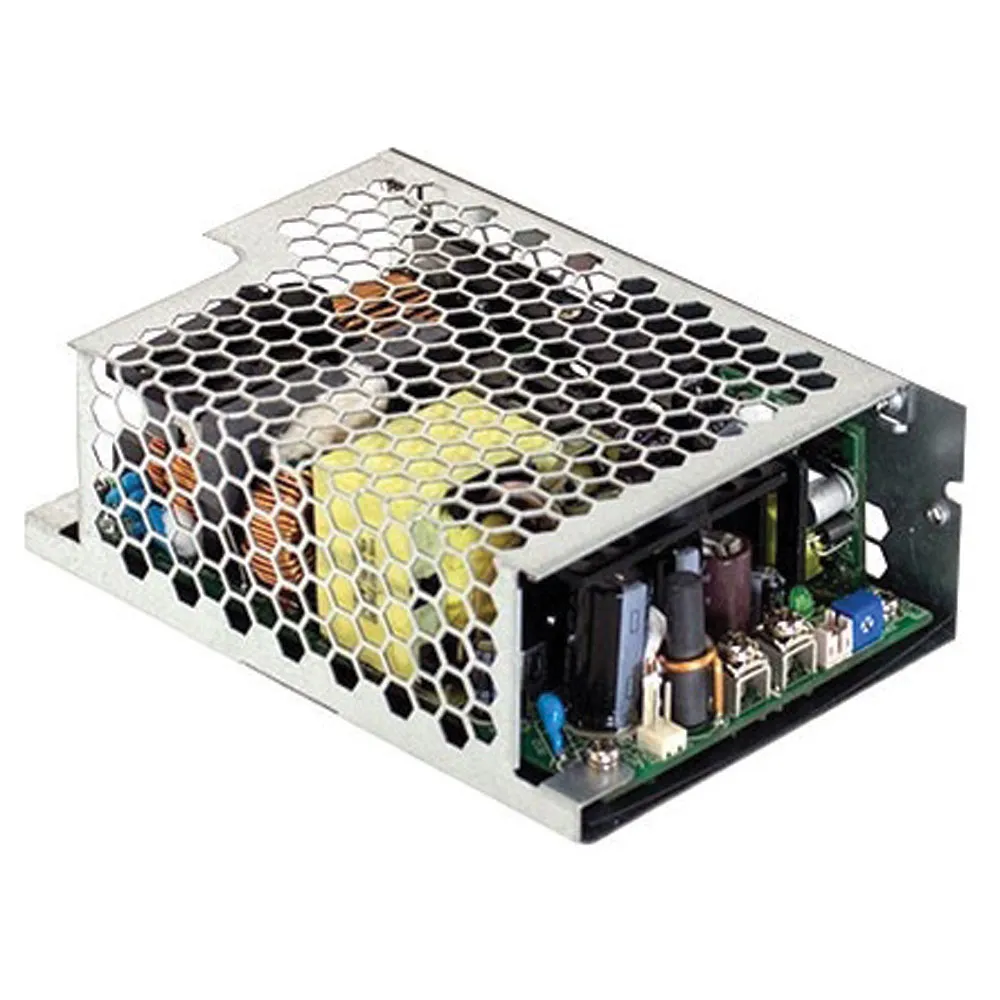

12V 20.8A 249W Enclosed Green Medical Power Supply

12 Volts @ 20.8 Amps, Convection
12 Volts @ 33.3 Amps, 25 CFM

Specifications

  • Power: 249.6 Watts (convection); 399.6 Watts (25 CFM fan)
  • Input voltage: 80 to 264 VAC @ 47-63 Hz
  • Size: 5.12"L x 3.41"W x 1.69"H
  • Ripple & Noise: 120 mVp-p
  • Load regulation: ±1.0%
  • Line regulation: ±0.5%
  • Efficiency: 91.5%
  • Certifications: UL, cUL, TUV, CB, CE

Specifications

  • 5" x 3" compact size
  • Medical safety approved (2 x MOPP) according to AAMI/ANSI ES60601-1 and IEC/EN60601-1
  • Suitable for BF applications with appropriate system configurations
  • 250W convection, 400W forced air
  • EMI Class B for Class I and Class A for Class II configuration
  • No load power consumption <0.5W by PS-ON control
  • 5V DC standby output, 12V DC fan support, Power Good, Power Fail and remote sense
  • Protections: Short circuit, overload, over voltage, over temperature
  • 3 year warranty

Applications

  • Oral irrigator
  • Hemodialysis machine
  • Medical computer monitors
  • Sleep apnea devices
  • Pump machines

Product Identification

Product Type:Medical Switching SMPS
Manufacturer Series:RPS-400

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Medical Enclosed
Color:Silver
Height:1.69 in.
Width:3.41 in.
Length:5.12 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:4.2 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current:20.80 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4000V
Efficiency:91.5%
Power Rating:399.6 W
,
