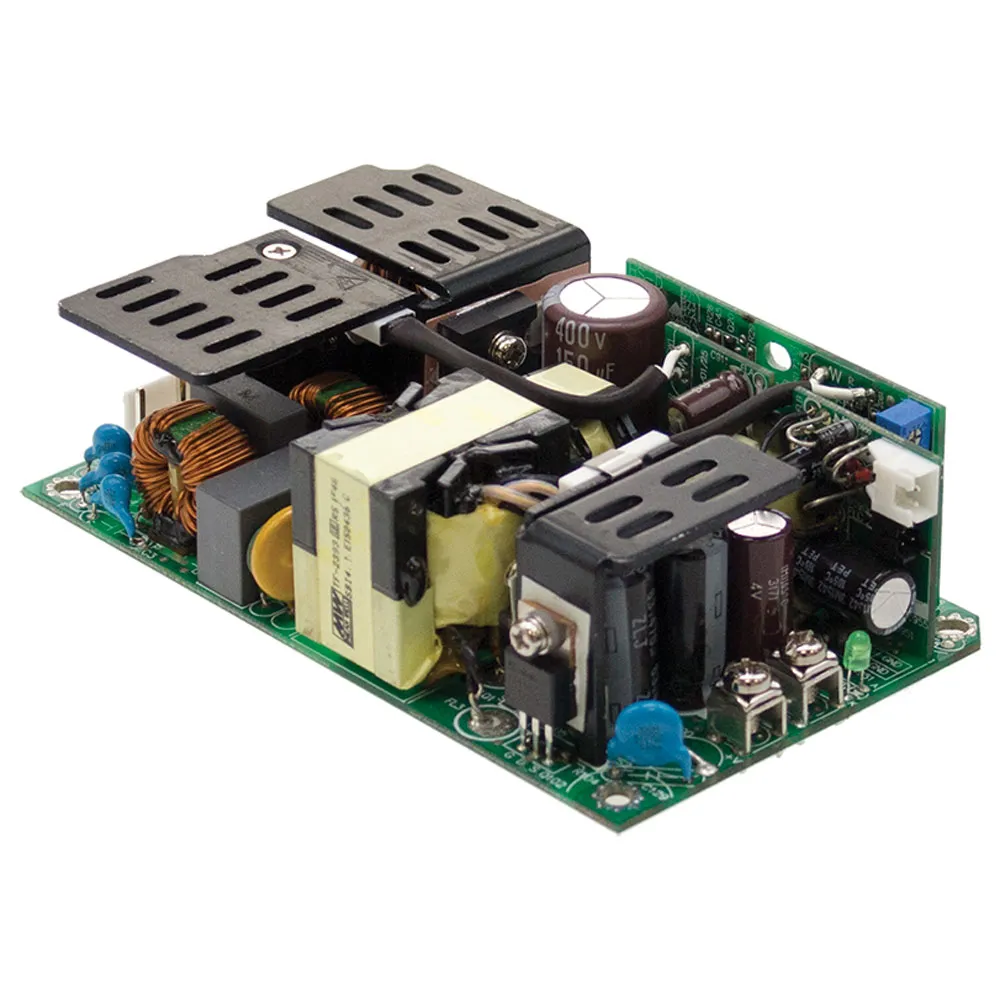

12V 16.67A 200W Green Enclosed Medical Power Supply
12 Volts @ 16.67 Amps (convection) / 25 Amps (20.5 CFM)Features
- 5" x 3" miniature size
- Universal AC input input / full range: 90 to 264 VAC @ 47-63 Hz
- Output voltage: 12 VDC
- Rated power: 200 watts (convection); 300 watts (20.5 CFM fan)
- Ripple & noise: 120 mVp-p
- Load regulation: ±1%
- Line regulation: ±0.5%
- High efficiency up to 90%
- Built-in active PFC function
- Medical safety approved (2x MOPP between primary to secondary)
- Suitable for BF application with appropriate system consideration
- Low leakage current <200µA
- No load power consumption <0.5W by PS-ON control
- Protections: Short circuit, over load, over voltage, over temperature
- Built-in 12V/0.5A fan standby
- Standby 5V @ 1A with fan, 0.6 without fan
- LED indicator for power on
- 3 year warranty
Applications
- Oral irrigator
- Hemodialysis machine
- Medical monitors
- Sleep apnea devices
- Pumps machine
Product Identification
Product Type:Medical Switching SMPS
Manufacturer Series:RPS-300
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Medical Enclosed
Color:Silver
Height:1.69 in.
Width:3.41 in.
Length:5.12 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.5 A
Output
Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current:16.67 A
Features
PFC Function:Yes
Minimum Isolation Voltage:4000V
Efficiency:90%
Power Rating:300 W
