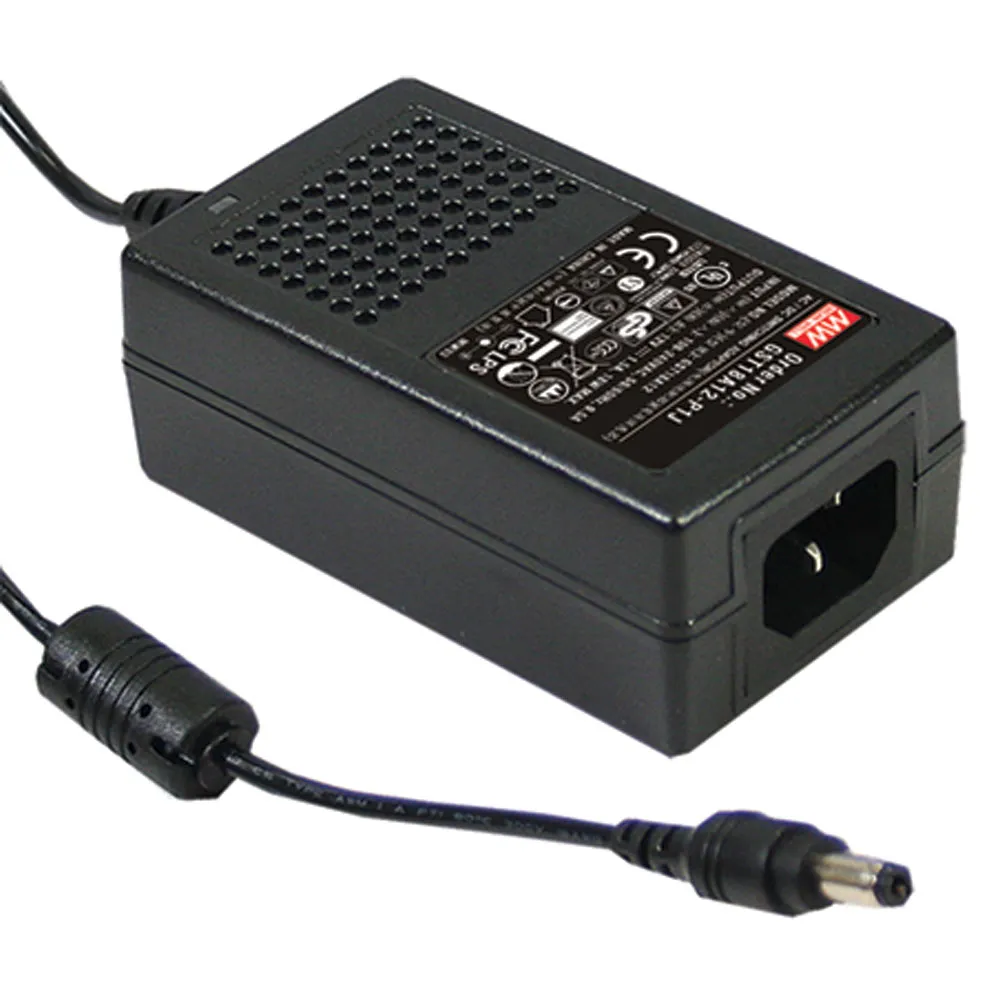

18 Watt AC-DC High Reliability Industrial Adapter

12 Volts @ 1.5 Amps

Features:

  • Universal AC input / Full range
  • 3 pole AC inlet IEC320-C14
    AC cord not included, we recommend a 3-conductor NEMA5-15P to C13 power cord like P/N: 2271575
  • Output connector: 2.1mm x 5.5mm center positive female barrel plug
  • No load power consumption <0.075W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
  • Class I power (with earth pin)
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • High operating temperature up to +70°C
  • LED indicator for power on
  • 3 year warranty

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:GST18A

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, FCC, TUV, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.42 in.
Width:2.13 in.
Length:3.66 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:0.5 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Additional Output Voltages (VDC):N/A
Output Current:1.50 A

Features

Polarity:Center Positive
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Minimum Isolation Voltage:4242V
IP Rating:N/A
Efficiency:86%
Power Rating:18 W
,
