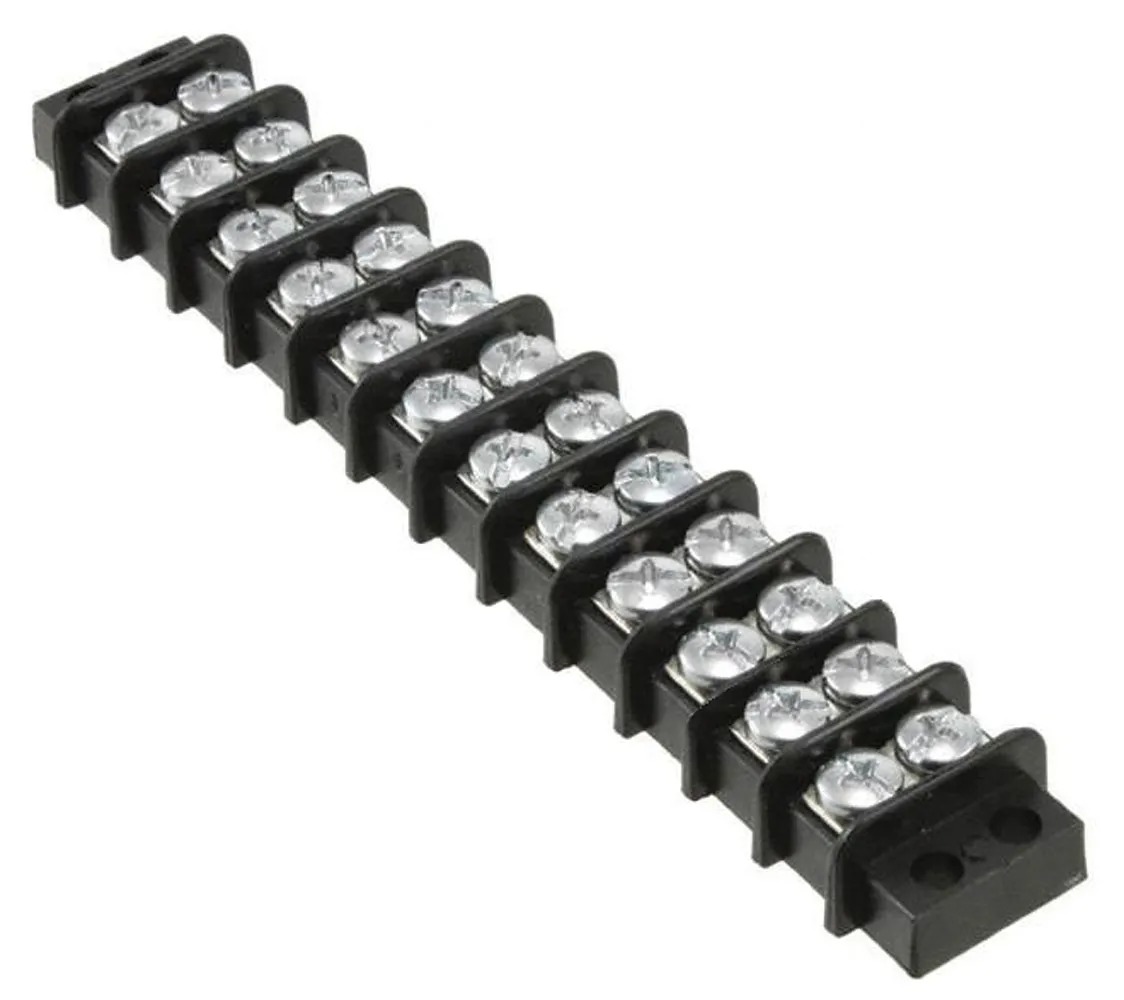

12-Position Double Row Barrier Strip Terminal Block

24 Contacts, 12 Positions

These series 77 screw terminals are ultrasonically welded into the thermoplastic insulator. The terminal cannot be twisted or rotated even under excessive force.

Specifications

  • Positions: 12
  • Pitch: 0.375" (9.53mm)
  • Low profile
  • Current rating: 15A
  • Double row
  • Terminals: Brass, nickel-plated
  • Insulator: Thermoplastic, UL94V0
  • Screws: #6-32 BH, Phillips/Slotted, Steel/Zinc chromate-plated
  • Block length: 130.9 mm
  • Block width: 18.3 mm
  • Block height: 11.2 mm
  • Sealed

,
