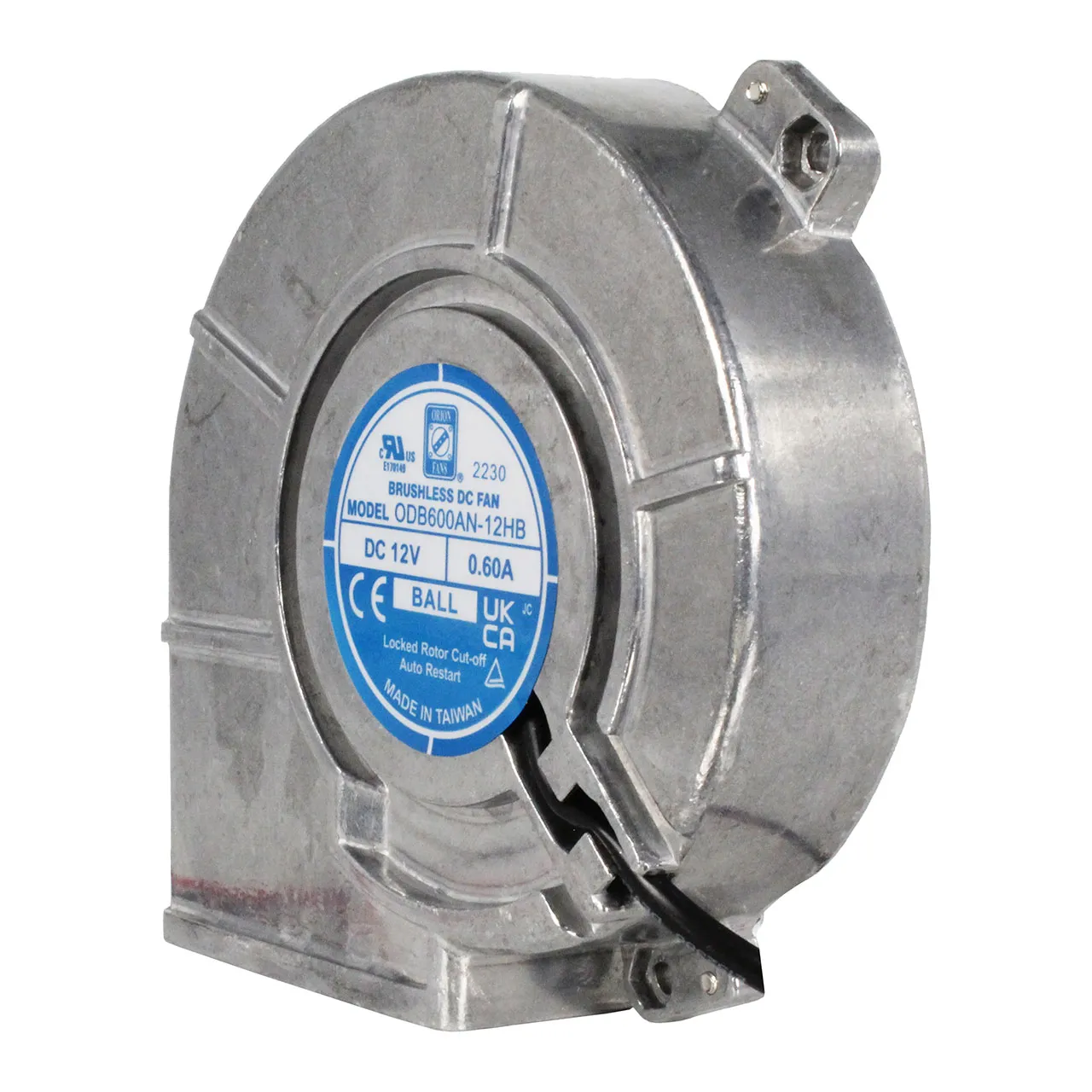

128 mm x 126 mm x 33 mm Blower Fan 12 VDC Ball Bearing 20CFM 31.2dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 126 mm
  • Width: 128 mm
  • Depth: 33 mm
  • Air Flow (CFM): 20
  • Bearing: Ball
  • Current Rating: 200 mA
  • Power Rating: 2.4 W
  • Agency Approvals: UL, CUL
  • Noise (dBA): 31.2
  • Termination: 12" Wires
  • Product Type: 126 mm x 128 mm Blower Fan
  • Speed: 1725 rpm
  • Maximum Pressure: 0.33 in.
  • Motor Drive Type: Brushless DC, Locked Rotor, Polarity Protected, Auto Restart

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the blower fan is designed to operate up to 1725 rpm.

Product Identification

Product Type:DC Blower Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CUL, UL

Dimensions & Appearance

Depth:33 mm
Height:126 mm
Width:128 mm

Features

Bearing:Ball
Speed:1725 rpm
Maximum Pressure:0.33 in.
Motor Drive Type:Brushless DC, Locked Rotor, Polarity Protected, Auto Restart
Voltage Rating:12 VDC
Power Rating:2.4 W
Air Flow (CFM):20
Termination:12" Wires
Noise (dBA):31.2
Current Rating:200 mA
,
