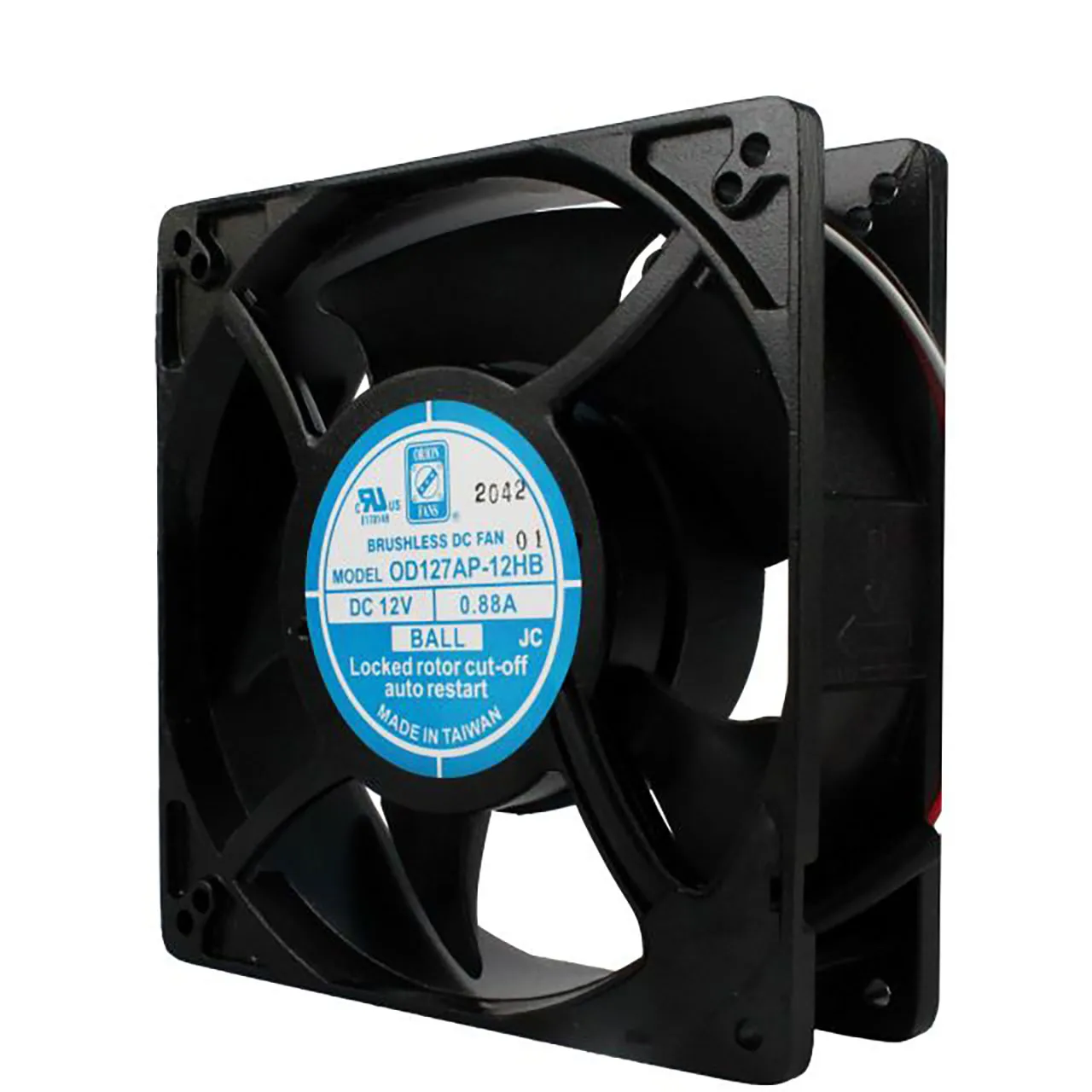

127 mm x 127 mm x 38.5 mm Tube Axial Fan 12 VDC Ball Bearing 140CFM 46dBA Terminals

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$39.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
2+	$39.950	-	-
10+	$37.550	2.40	6.01%
50+	$35.250	4.70	11.76%

Features

Voltage Rating: 12 VDC
Height: 127 mm
Width: 127 mm
Depth: 38.5 mm
Air Flow (CFM): 140
Bearing: Ball
Current Rating: 880 mA
Power Rating: 10.56 W
Agency Approvals: UL, CUL, TUV, CE, UKCA
Noise (dBA): 46
Termination: Terminals
Product Type: 127mm x 127mm DC Fan
Speed: 3200 rpm
Maximum Pressure: 0.41 in.
Additional Features: PBT Frame, PBT Impeller
Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3200 rpm.
