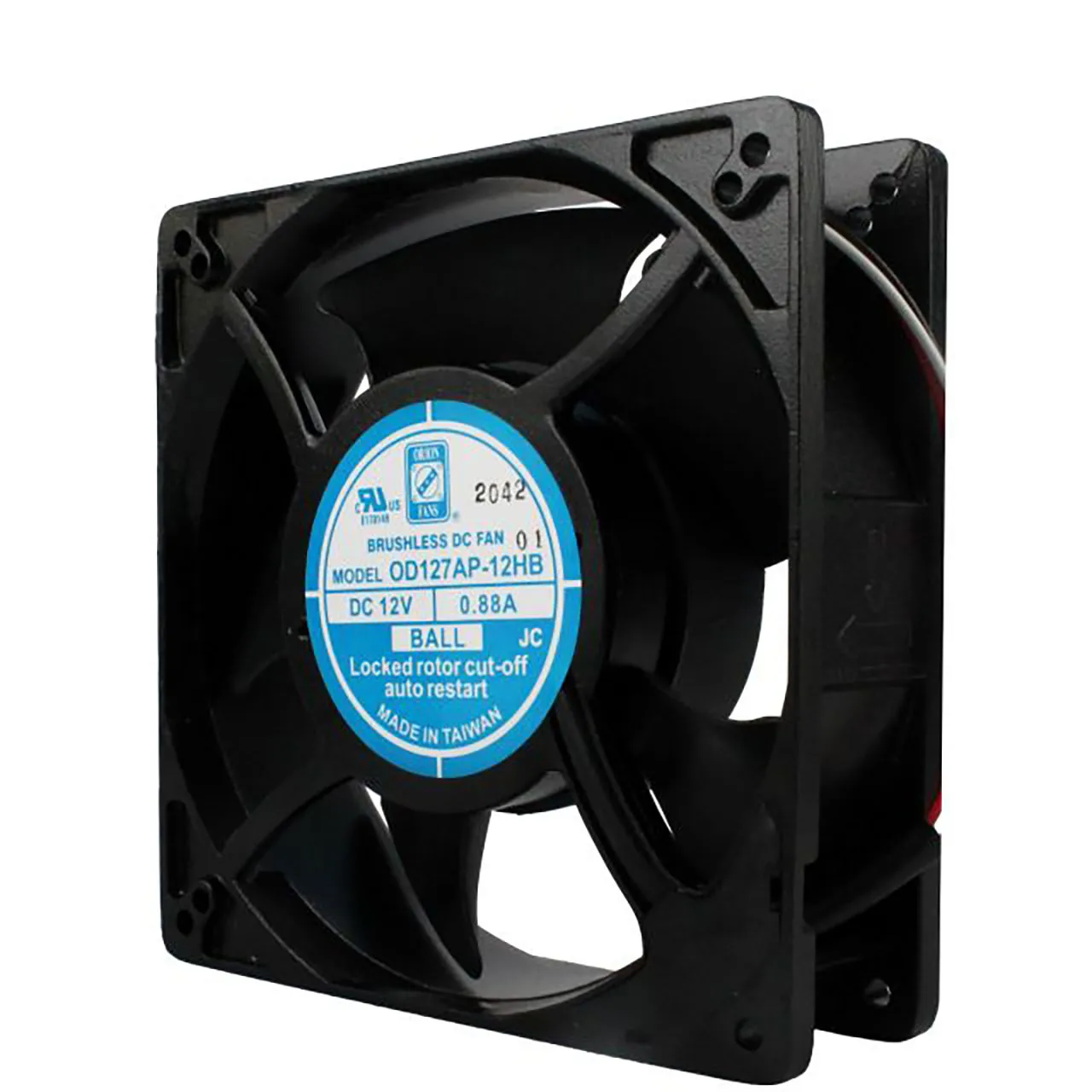

127 mm x 127 mm x 38.5 mm Tube Axial Fan 12 VDC Ball Bearing 122CFM 49dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 127 mm
  • Width: 127 mm
  • Depth: 38.5 mm
  • Air Flow (CFM): 122
  • Bearing: Ball
  • Current Rating: 480 mA
  • Power Rating: 5.76 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 49
  • Termination: 12" Wires
  • Product Type: 127mm x 127mm DC Fan
  • Speed: 2485 rpm
  • Maximum Pressure: 0.27 in.
  • Additional Features: PBT Frame, PBT Impeller
  • Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2485 rpm.

Product Identification

Additional Feature:PBT Frame, PBT Impeller
Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UKCA, UL

Dimensions & Appearance

Depth:38.5 mm
Height:127 mm
Width:127 mm

Features

Bearing:Ball
Maximum Pressure:0.27 in.
Motor Drive Type:Brushless DC, Auto Restart, Polarity Protected
Speed:2485 rpm
Voltage Rating:12 VDC
Noise (dBA):49
Termination:12" Wires
Power Rating:5.76 W
Air Flow (CFM):122
Current Rating:480 mA
,
